Stainless steel induction heating equipment

Stainless steel induction heating equipment


Application: Hardening ,Annealing & Tempering

Material Heated:45#,40Cr,42CrMo,65Mn

Pipe Diameter Allow: Φ60-300mm

Length Allow:Not limited

Product Detail

Application Video

Product Tags

Stainless steel induction heating equipment

After stainless steel heat treatment process, the stainless steel can have much better physical and mechanical properties. And our company is specialized in producing Induction heat treatment equipment  , pipes, tubes, slabs, billets & wires.

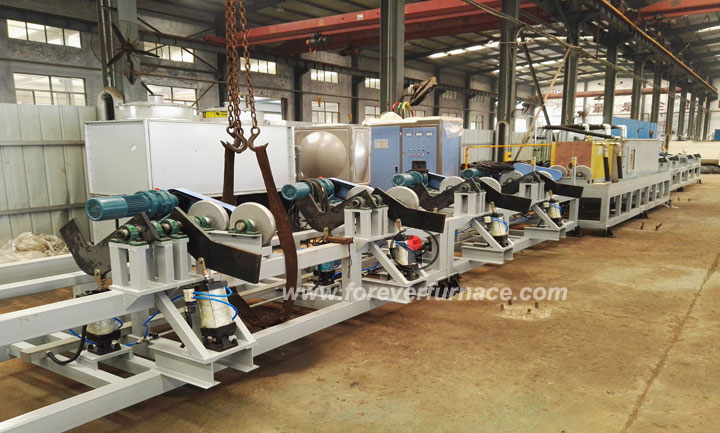

Description for Stainless steel heat treatment line

●     Medium Frequency Heat treatment Tempering Production Line
●     Mining Machinery, Petroleum Machinery, Steel Tube, Steel Wire, Steel Bar Thermal Refining.
●     Improve productivity, lower 20% energy consumption
●     Medium Frequency Induction Heating

Main system for stainless steel heat treatment

●    Power supply system: KGPS160KW-1000KW/0.5-2.5KHz.
●    Transmission roller table: The angle between roller axis and work piece axis is 18 ~ 21 °. The work piece is rotating and go forward at the uniform rate for uniform heating. Rollers between furnace are 304 non-magnetic stainless steel and water-cooled.
●    Roller table group: Independent control for feeding group,inductor group and discharging group,which is beneficial to continuous heating to avoid work piece gap.
●    Temperature closed-loop system: Both hardening and tempering process used closed-loop control system which consists of America Raytek infrared thermometer and German Siemens S7 with high precision temperature control.
●    IPC system: Powerful functions including the display of the current working parameters status, work piece parameters memory, storage, print, fault display and alarm and so on.

induction-hardening-tempering-furnace 感应调质炉
