Billet Continuous Casting and Rolling Production Line

Billet Continuous Casting and Rolling Production Line

Features:

1.Application:Heat Treatment for Billet,Steel billet,Square billet,Slab,Continuous casting billet

2.Available Power:100KW-10000KW

3.Non-standard Product:Professional Customization

Product Detail

Application Video

Product Tags

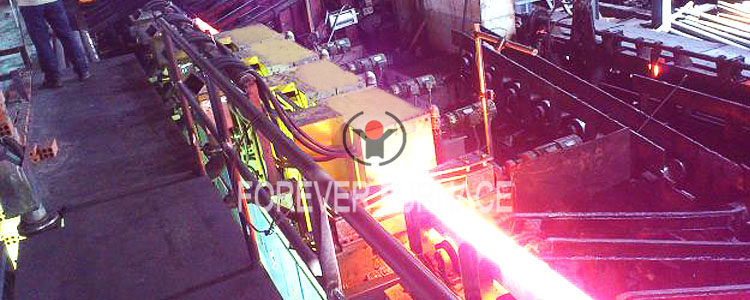

Billet continuous casting and rolling production line from Forever Furnace is used for billet heating,billet online heating, billet temperature increasing, billet reheating,billet induction heating and so on.

Our billet continuous casting and rolling production line has accurate temperature control system including infrared thermometer and PLC closed-loop control device.So the operator can monitor and control the heating temperature at any time.

Billet continuous casting and rolling production line is customized designed and produced in Forever.The whole heating process realizes PLC automatic control, and timely display the production record of heating quantity. The offer and technical parameters are also free for billet induction heater, steel bar heat treatment equipment, steel plate heating equipment, steel slab heating equipment and so on.

http://www.foreverfurnace.com/case/billet-continuous-casting-and-rolling-production-line.html

Technical Parameters for Billet Continuous Casting and Rolling Production Line

1.Billet size:5000mm(Length)X150mm(Width)X150mm(Thickness)

2.The maximum transmission speed is 15m/min;the speed regulation range is 9-15 m/min.The steel billet speed is constant.

3.Temperature distribution:

(1)The feature of billet section temperature distribution:the billet core temperature is 1100℃;the surface temperature is 800℃.  The temperature need to raise by 300℃.
(2)The feature of billet head and tail temperature distribution:the head temperature is 50℃ higher than tail temperature.

4.Nose the user need to ensure:  sickle bend: < 30mm

Forever Furnace is the professional manufacture of billet continuous casting and rolling production line. Our company has provided thousands of induction heat treatment equipment so far and got good reputations from the users.Welcome to send us inquiry!
