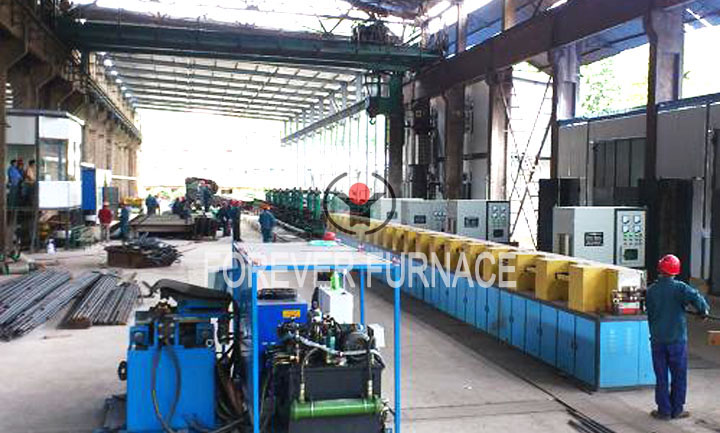

Deformed steel bar hot rolling production line

Hebei Forever Electromechanical Equipment Manufacturing Co., Ltd., a professional deformed bar induction heating furnace with high cost-effectiveness and reliable quality, is recommended for you. We offer direct quotes for the hot-rolling production line of threaded steel, with good craftsmanship and high technology. Choosing Forever Electromechanical is your ideal choice. Welcome new and old customers to consult online.

Technical parameters of the deformed steel hot rolling production line :

1. Power supply system: IGBT500KW IGBT2000KW.

2. Equipment hourly output: 2-16 tons.

3. Sensor design: variable pitch, temperature gradient design, high production efficiency.

4. Elastic adjustable pressure roller: enables workpieces of different diameters to feed at a uniform speed. The roller tracks and pressure rollers between the furnace bodies are made of 304 non-magnetic stainless steel and water-cooled.

5. Infrared temperature measurement: An infrared temperature measurement device is installed at the discharge end to ensure that the temperature of the metal workpiece before entering the rolling mill is consistent.

6. Energy conversion: Heating from ø 25mm to ø 52mm to 1000 ℃, consuming 260-280 degrees of electricity.

7. The human-machine interface PLC fully automatic intelligent touch screen control system provides highly user-friendly operation instructions.

8. The fully digital and deep adjustable parameters of the thread bar heat treatment line equipment allow you to control the equipment with ease.
