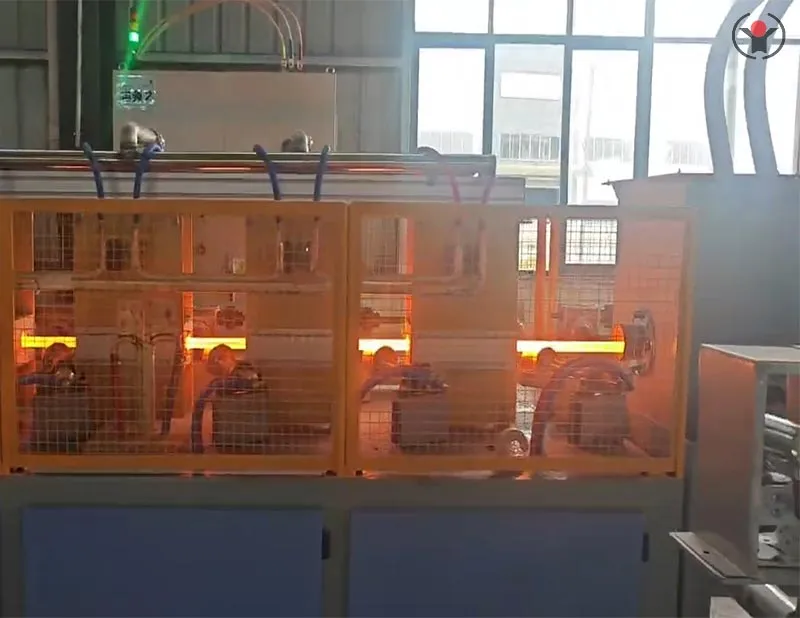

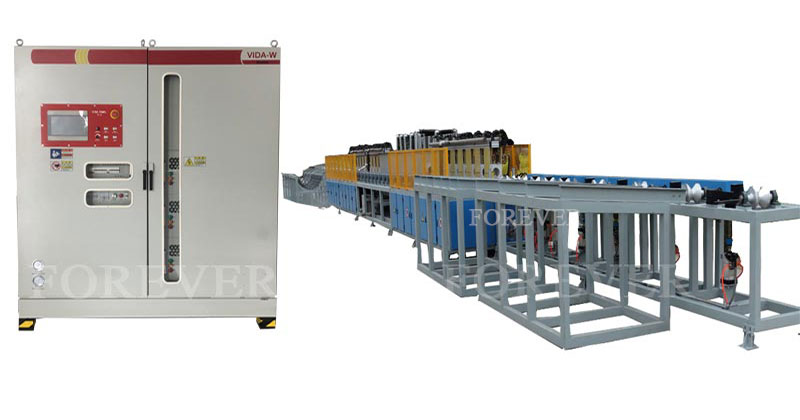

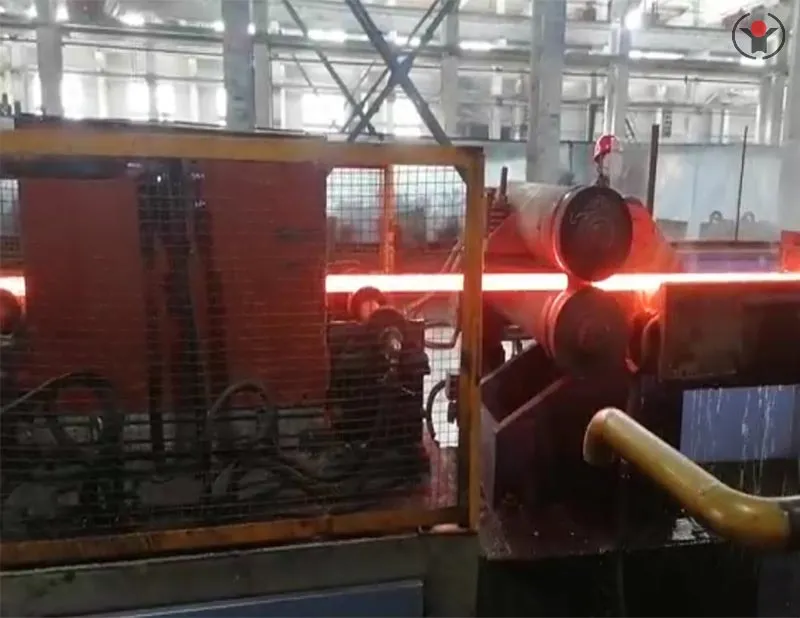

Sucker rod Induction quench and temper line

Product use: Suitable for heat treatment of metal workpieces such as torsion bars, automotive stabilizer bars, sucker rods, push rods, etc

Quenching power/frequency:160-1000KW/0.5-4KHz

Production Capacity: 100-600KW/0.5-2.5KHz0.5-3.5t/h

Scope of application: 8mm-120mm

Energy Conversion: Adopting self tempering method after quenching, with a power consumption of 360-400 kWh per ton.

Hebei Forever Electrical Equipment specializes in providing push rod heat treatment furnaces for users. Sucker rod induction heating system products include: sucker rod quenching and tempering furnace, Sucker rod quenching and tempering equipment, automotive torsion rod quenching and tempering production line, Sucker rod induction quenching and tempering equipment, stabilizer rod induction quenching and tempering equipment, rod induction heat treatment furnace, sucker rod i duction quenching and tempering furnace, Sucker rod quenching equipment and other induction heating equipment.

1. Intelligent quenching intermediate frequency power supply (system for controlling rod quenching)

2. Intelligent tempering intermediate frequency power supply (system for controlling rod tempering)

3. Quenching sensor group, tempering sensor group (the number of quenching and tempering furnace bodies designed according to the size of the customer's workpiece)

4. Resonant capacitors and furnace cabinets (including stainless steel pipes)

5. Quenched water tank (including multiple sets of stainless steel spray rings, flow meters, and conveyor rollers)

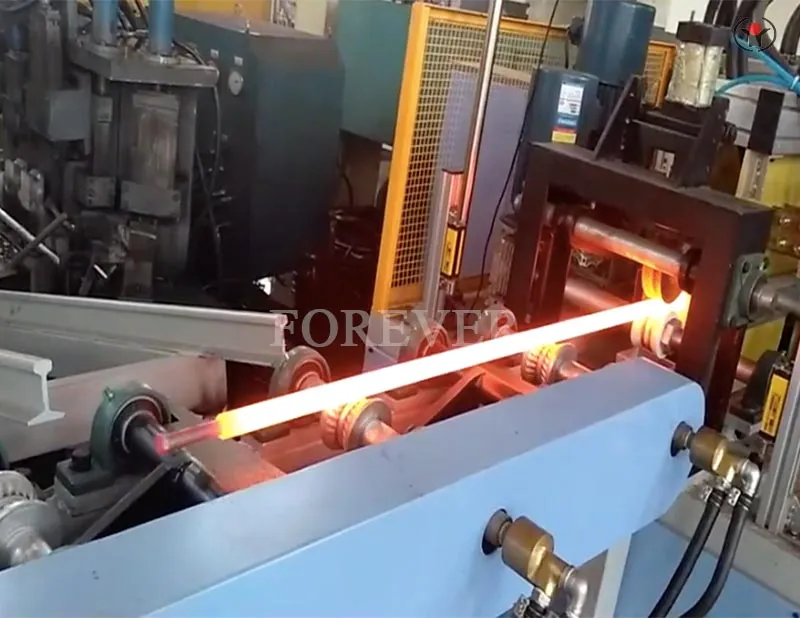

6. Connecting cable for push rod heat treatment furnace (the wire that runs the equipment between the intermediate frequency power supply and the capacitor cabinet, just like the charger we need to charge our mobile phones) 7. Input and output roller conveyor (the workpiece rotates while feeding at a uniform speed, which can make the stabilizer bar heat more evenly)

8. Quenching and tempering infrared temperature measuring device (equipped with American Raytheon infrared thermometer to display the temperature of the workpiece in real time, so that the temperature uniformity of the workpiece can be observed at any time during the quenching and tempering process)

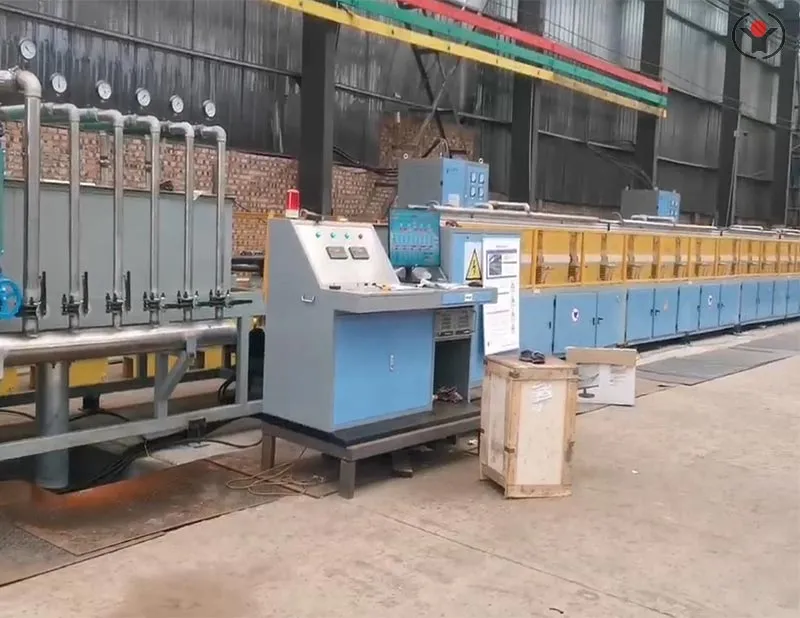

9. The central control panel (including variable frequency speed regulation and temperature control, Huayan industrial computer, remote start, etc.) is used to directly operate the entire quenching and tempering equipment on the central control panel. Only one person is needed to operate the entire equipment, saving labor and costs.

10. Independent gear reducer drives roller conveyor (including water-cooled idler)

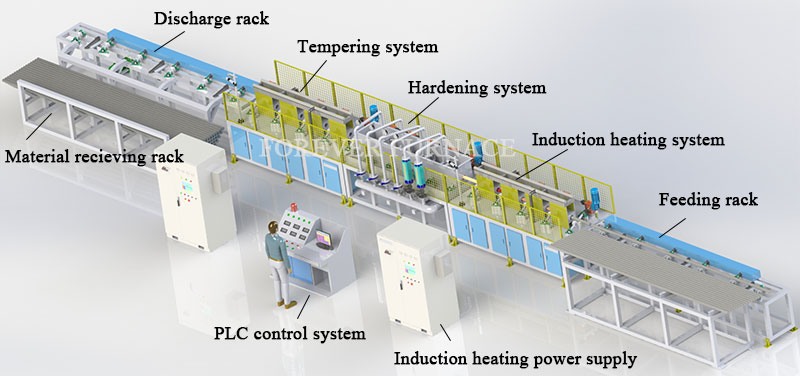

This set of sucker rod heat treatment furnace is composed of Forever's unique intelligent intermediate frequency induction quenching, intermediate frequency induction tempering, closed water cooling system, storage rack, mechanical feeding device, infrared temperature measurement, spray cooling system and central control system. The quenching and high-temperature tempering of rods of different sizes can be carried out for users. The heating method is online continuous heating. The complete set of quenching and tempering heat treatment equipment only requires a crane to place the workpiece on the upper rack, and the rest of the actions are automatically completed by the system controlled by PLC. The complete production line adopts Taiwan Huayan industrial control computer as the core control part, which stores, displays, automatically records and prints the mechanical operation parameters, quenching and tempering parameters, temperature and other parameters of the entire system. The system runs automatically according to the set process parameters. Eliminate the hassle of multiple people operating.

1. Technical after-sales service with professional engineers for overseas equipment.

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.
