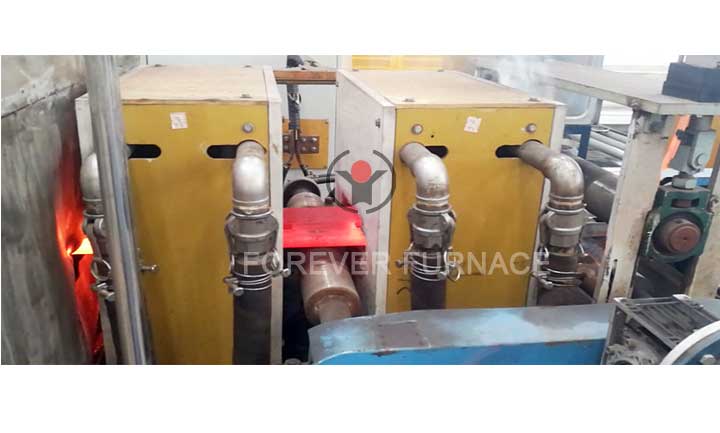

steel plate heat treatment production line factory

After more than 20 years of research and development of induction heating equipment, Forever Electromechanical has produced Steel plate induction heat treatment furnace that meet international standards in all technical indicators. Forever Electromechanical Steel Plate Heat Treatment Production Line has many cases and is sold to multiple countries and regions. Professional engineers can customize a suitable steel plate heat treatment production line according to your requirements.

The steel plate heat treatment production line is currently a commonly used metal plate heat treatment production line. Through non-contact induction heating, steel plates, bulldozer engineering blade plates, and other plates are quenched, tempered, and other heat treatments to meet the requirements of the heat treatment process. This device has the characteristics of high automation, fast heating speed, stable heating temperature, high utilization rate of sheet metal, and energy conservation and environmental protection.

Characteristics of Steel sheet heat treatment furnace :

1. Feeding system: roller conveyor+power double clamping roller, each axis is driven by an independent motor reducer, and controlled by an independent frequency converter; Flexible design of speed difference output and segmented control of operating speed.

2. Roller table electrical isolation: In response to the problem of workpiece and roller table ignition caused by high-frequency equipment, we have designed a sturdy and durable roller table electrical isolation system, which completely solves the problem

3. The problem of workpiece damage caused by ignition. Industrial control computer system: Real time display of the status of working parameters, workpiece parameter memory, storage, printing, fault display, alarm and other functions.

4. Formula management function: A powerful formula management system that automatically calls up relevant parameters after selecting the steel grade and plate type parameters to be produced, eliminating the need for manual recording, querying, and inputting of parameter values required for various workpieces.

Overseas manager: Tom Wang

Phone: 0086-13303078975(whatsapp, wechat,line)

Specialist of  bar heat treatment furnace in China; Glad to be your business partner in induction heating field.

Post time: 04-26-2024
