As wear-resistant steel, vessel steel and structural steel plate demand surges across machinery, shipbuilding and metallurgy sectors, more manufacturers are replacing gas furnace heat treatment lines with induction hardening & tempering integrated lines. Induction QT lines feature low energy loss, fast heating speed and stable mechanical performance, yet mismatched equipment will trigger uneven hardness, plate deformation and excessive operating costs. This guide breaks down core standards for factories to pick a matching steel plate induction hardening and tempering line in 2026.

First, clarify full plate processing specifications as the primary selection benchmark. Buyers must sort out plate thickness range, width limit, steel grades and target mechanical indicators before contacting suppliers. Medium-thick plates (5–120mm) need medium-frequency induction power supplies from 1000kW to 30000kW, while thin wear plates below 15mm adopt dual-frequency modular inductors to guarantee uniform through-heating without surface overburning. Carbon steel, alloy steel and high-strength marine steel require independent coil design; generic universal coils easily cause inconsistent quenching depth and local soft zones. Besides material parameters, hourly output and continuous operation duration cannot be ignored. Small batch processing under 3 tons per hour suits semi-automatic compact lines, while steel mills with 8–20 tons hourly throughput need full-automatic long-stroke conveying lines with double heating stations to avoid production bottlenecks.

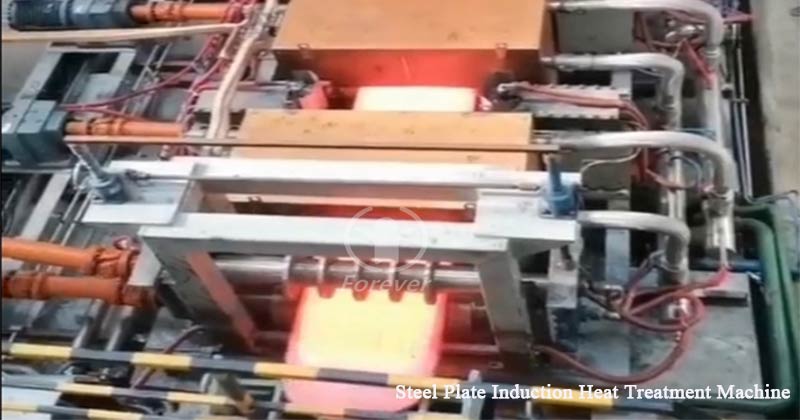

steel plate induction heat treatment equipment

Second, inspect core hardware and control system configurations to balance precision and energy efficiency. The IGBT medium-frequency power source determines overall energy consumption; high-end digital IGBT modules cut power waste by over 30% versus old SCR power supplies, lowering long-term electricity expenditure. Temperature control accuracy directly affects finished plate quality. Qualified QT lines deploy infrared closed-loop temperature measurement paired with Siemens PLC touch screen, recording heating temperature, quenching water pressure and tempering dwell time for each plate to realize full data traceability, which meets third-party material inspection standards for engineering machinery accessories and pressure vessels. The quenching cooling section is another key component. High-pressure segmented water spray systems prevent plate bending, while circulating water cooling modules reduce water resource waste for long-shift production. Modular induction coils are preferred for multi-specification plate switching, cutting mold replacement time by more than 60% compared with fixed coils.

Finally, balance initial investment and whole-life operating cost. Low-price shoddy lines often use low-efficiency power sources and thin copper coils, leading to frequent breakdowns and soaring electricity bills within two years. Premium induction QT lines have higher one-time cost but feature 8–10 years stable service life and ultra-low energy consumption, delivering obvious cost advantages in long-term mass production.

To sum up, selecting a qualified steel plate hardneing and tempering production line is not based on maximum power or lowest price. Enterprises shall prioritize plate material parameters, production capacity demand, control precision and supplier technical capacity, combining workshop conditions to customize targeted heat treatment solutions, so as to stabilize product quality, boost production efficiency and achieve sustainable low-cost operation.
