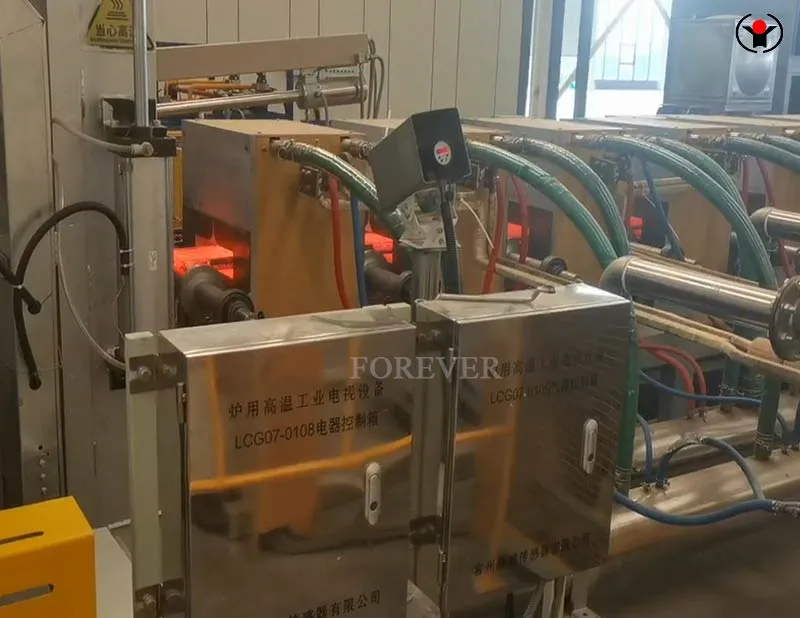

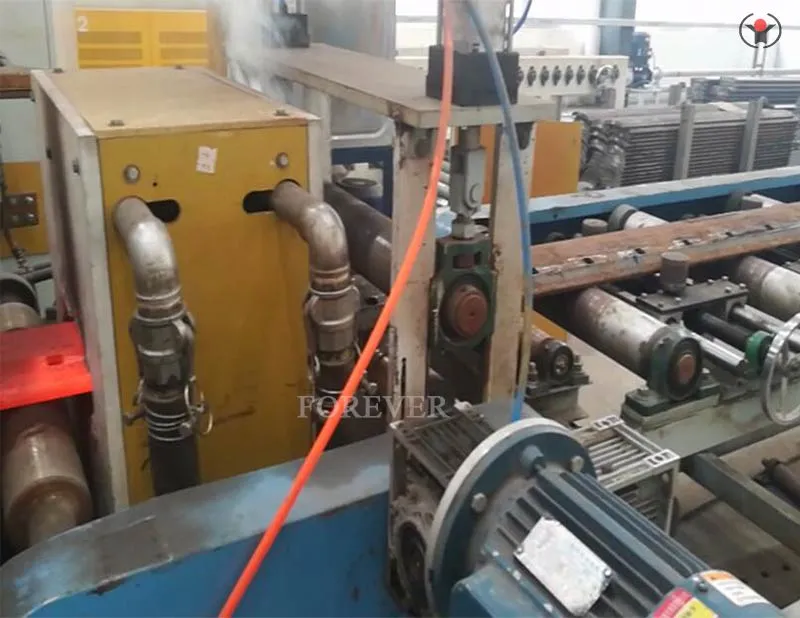

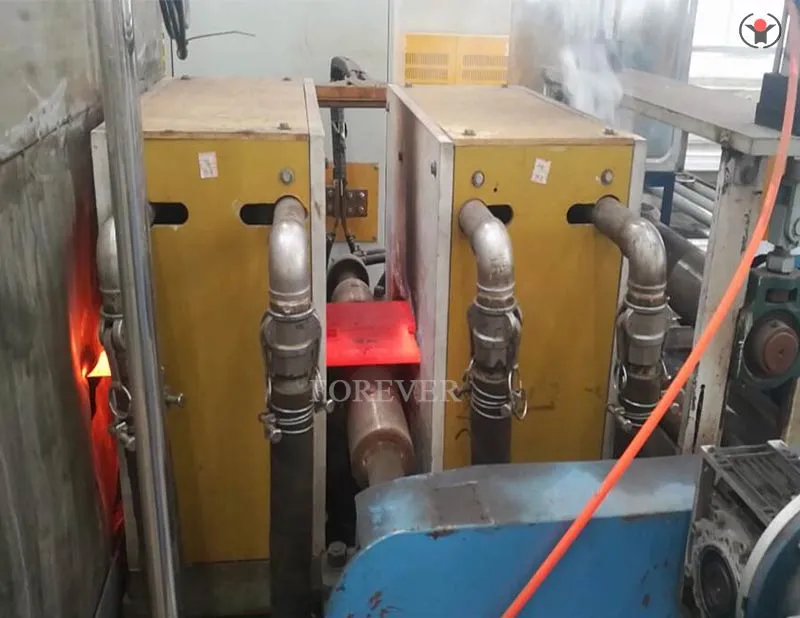

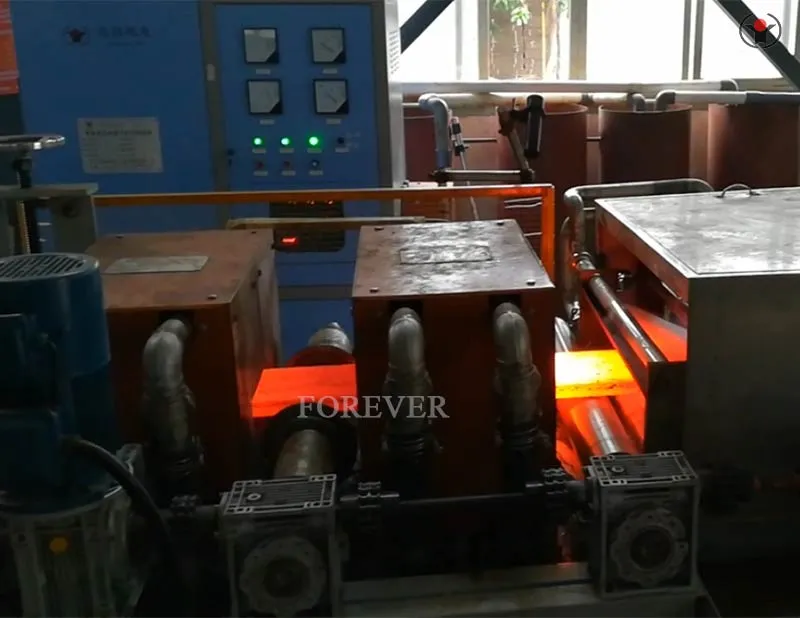

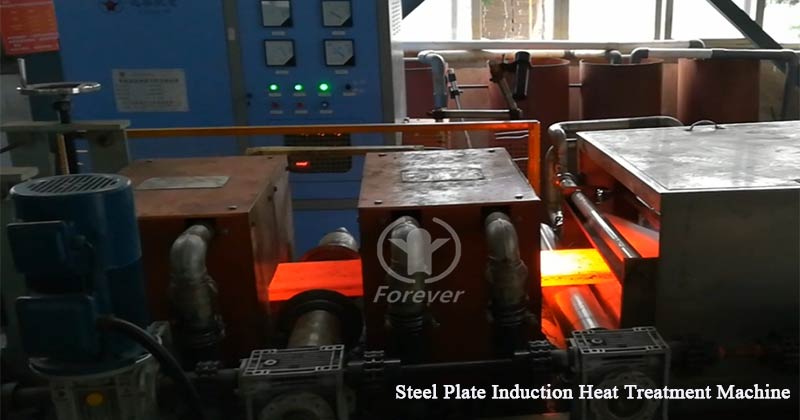

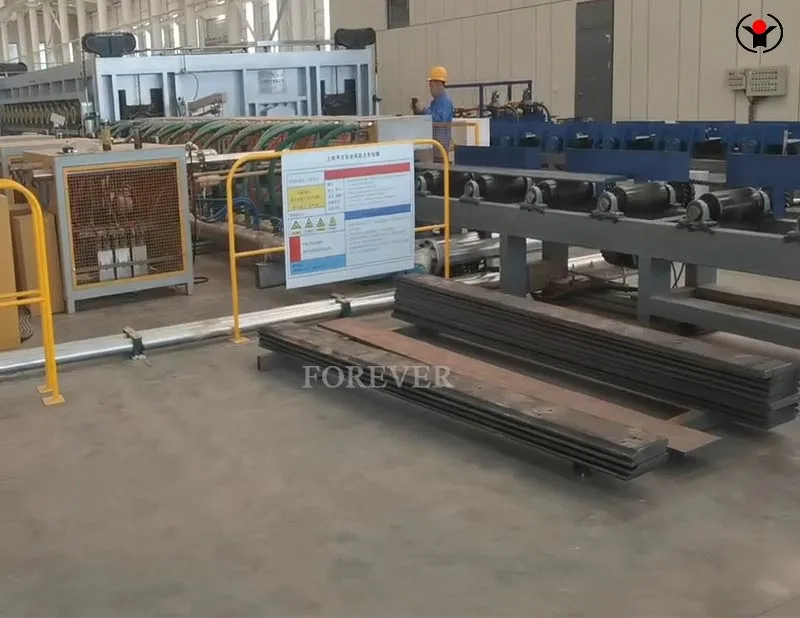

Steel plate induction hardening and tempering equipment

Product application: Suitable for induction hardening and tempeirng of metal workpieces such as steel plates, wide and thick plates, and automotive plates

Forever specializes in the research and development of steel plate modulation and heating equipment, with a professional formula management system and high production efficiency. The newly developed fully automatic intelligent type saves 10-30% energy compared to old steel plate modulation and heating equipment. Free maintenance and technical services are provided within 12 months, with lifelong maintenance. Forever Electromechanical's high-quality

Equipment name: Steel plate induction hardening and tempering equipment (non-standard product)

Equipment brand: Forever

Customized processing: Yes

Heating steel materials: SPCC, IF, DC06, 201, 304 and other materials

Size range: Workpieces with a thickness of 5mm or more

Heating temperature: The specific heating temperature is designed according to the requirements of the workpiece heat treatment process. Production efficiency requirements: Calculated based on the length of the user's workpiece and the thickness of the plate. Equipment power range: 100KW-2500KW (equipment power is designed according to the workpiece)

The Steel plate induction hardening and tempering equipment adopts intelligent series resonant intermediate frequency power supply control and features:

Power function: Rectify and convert ordinary 380V or 660V three-phase or six phase 50Hz AC power into DC power, and then use an inverter system to convert it into AC power of the desired frequency. Through the principle of electromagnetic eddy current, our workpiece is induced and heated by itself.

Parallel resonance design, phase-shifting power regulation, fully open rectification, high power factor, small harmonic components, easy operation. The power supply and inductor always maintain reliable matching, with full power output, low turn off losses, and small reactive power components. Compared with traditional inverter power supplies, it saves 15-30% electricity Variable frequency and load adaptive, automatic matching for induction furnace replacement, no need for manual adjustment. ·T2 copper bars are used inside the cabinet, which have been sandblasted and passivated; Low leakage inductance, anti-oxidation, effectively reducing line losses. Full touch screen control, pure digital tuning, with complete process records and strict level permissions. The main parameters can be restored to factory settings with just one click. The steel plate modulation heating equipment has self-protection functions (overcurrent, overvoltage, water pressure, phase loss, undervoltage, overload), and has self diagnostic function in case of situations.makes you a trustworthy product.

1. Technical after-sales service with professional engineers for overseas equipment.

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.
