Introduction

Steel billet heat treatment is an essential procedure to optimize metal mechanical properties before forging, rolling and other forming processes. The

billet heat treatment machine developed by Forever Electromechanical adopts advanced IGBT induction heating technology, realizing continuous, stable and energy-efficient heating, quenching and tempering for round and square steel billets. Compared with traditional furnace heating equipment, this induction heat treatment line brings obvious advantages in temperature control, production efficiency and operating cost. This guide explains its working principle, main structure, key benefits and typical industrial applications.

Working Principle of Billet Heat Treatment Machine

The core working theory of the billet heat treatment machine is electromagnetic induction. When alternating current passes through the induction coil, an alternating magnetic field is generated. The steel billet passing through the coil cuts the magnetic lines of force, producing eddy current inside the metal workpiece. The eddy current converts electric energy into thermal energy, heating the billet from inside out rapidly.

Forever Electromechanical’s equipment supports adjustable heating speed and precise temperature closed-loop control. Operators can set target temperature according to material grades, including carbon steel, alloy steel and stainless steel. After reaching the preset temperature, the billet enters the quenching section for rapid cooling, then goes through tempering to release internal stress. This complete heat treatment cycle improves billet hardness, toughness and internal metallographic structure, avoiding defects such as uneven heating and over-burning caused by conventional heating methods.

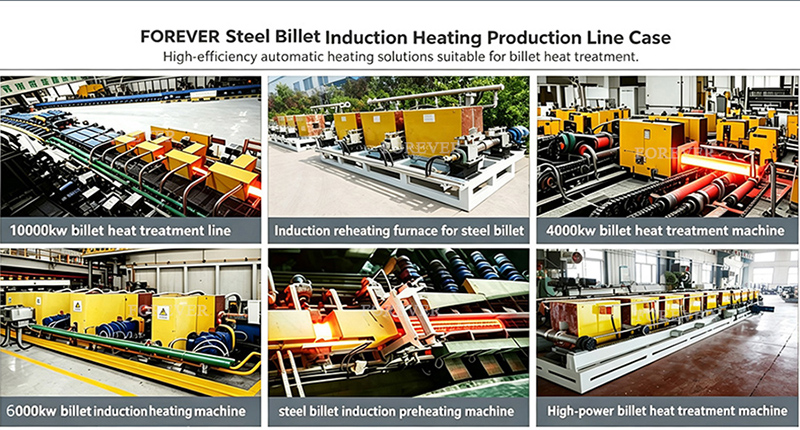

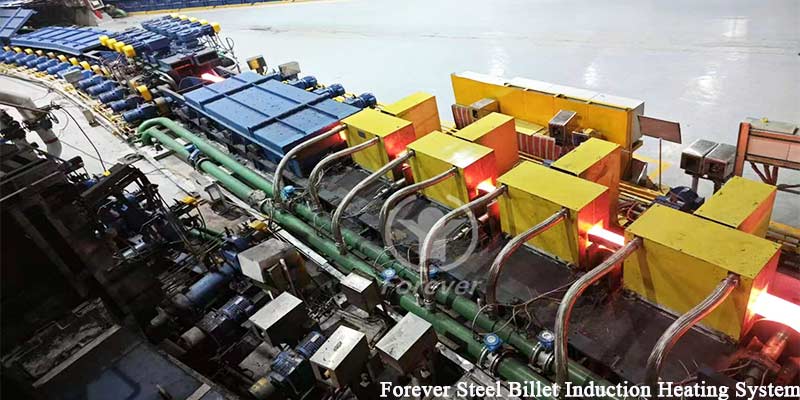

Main Composition of the Heat Treatment Line

A full set of steel billet continuous casting machine from Forever Electromechanical consists of several functional modules.

1. Feeding system: Automatic material feeding and alignment, realizing continuous feeding of billets with different specifications.

2. IGBT induction power supply: Stable power output, high conversion efficiency and low energy consumption.

3. Induction heating coil: Customized coil size matching billet diameter and length.

4. Temperature monitoring module: Real-time infrared temperature detection to guarantee consistent heating quality.

5. Quenching and tempering station: Controlled cooling and holding section for metallographic adjustment.

6. Discharging and sorting system: Automatic output of finished billets for next production procedures.

All modules are integrated into one continuous production line, reducing manual intervention and lowering labor risks.

Core Advantages of Forever Electromechanical Billet Heat Treatment Machine

First of all, precise temperature control. The induction heating method ensures uniform temperature on billet surface and core, improving product qualification rate. Secondly, energy saving. Induction heating only heats the workpiece itself, less heat loss to the surrounding environment, saving power consumption compared with fuel furnace. Thirdly, flexible production. The line can quickly switch between different billet sizes and steel grades, suitable for multi-variety batch production. In addition, compact layout, easy maintenance and low failure rate. The whole production process is clean without extra smoke emission, meeting environmental protection requirements.

Typical Application Scenarios

The billet heat treatment machine is widely used in metal forming industries. It serves for hot forging of steel bars and billets, seamless steel pipe production, steel ball rolling, auto parts forging, construction machinery accessories manufacturing and non-ferrous metal preheating. Manufacturers use this line to preheat billets before forging or conduct complete quenching and tempering treatment, improving the wear resistance and impact resistance of final metal products. Forever Electromechanical provides customized solutions according to clients’ output, billet size and material requirements for global customers.

Conclusion

As metal processing industry raises higher standards for product quality and energy consumption, induction billet heat treatment machines become the preferred replacement for traditional heating furnaces. Forever Electromechanical keeps optimizing IGBT induction technology, offering reliable, continuous billet heat treatment equipment and technical support. Proper application of steel billet induction heating machine helps metal processing enterprises stabilize product quality, cut production cost and boost overall competitiveness.
