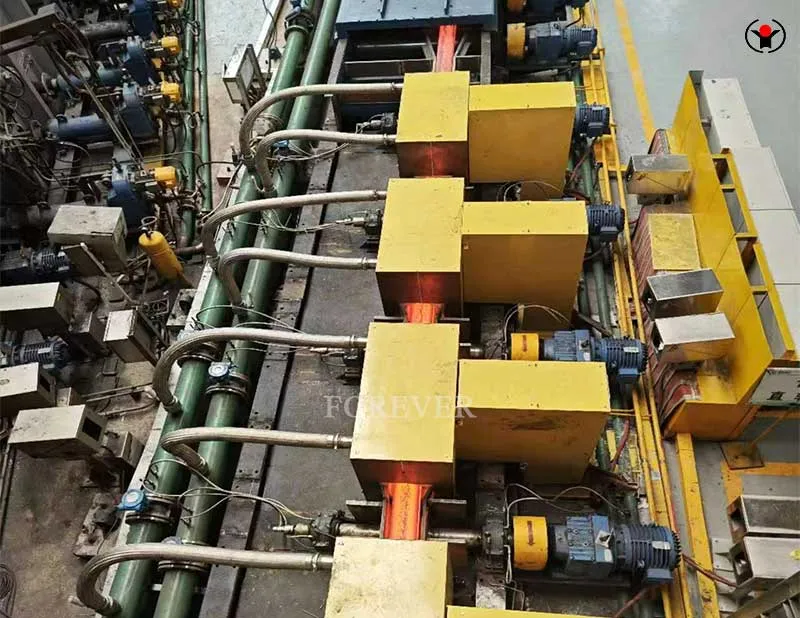

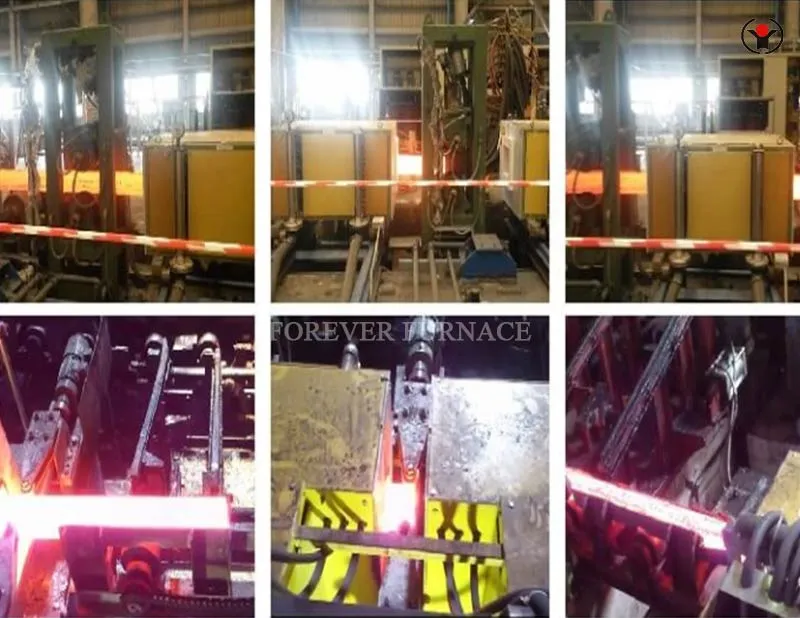

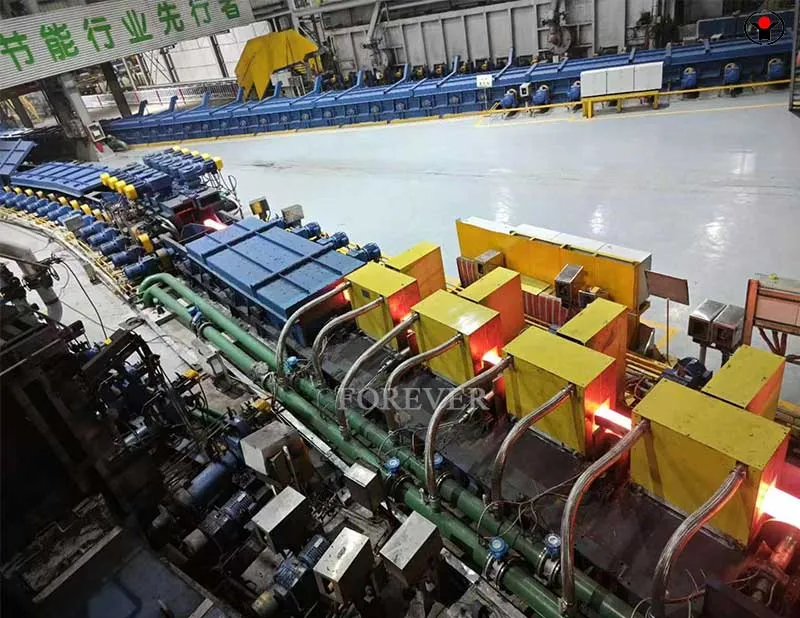

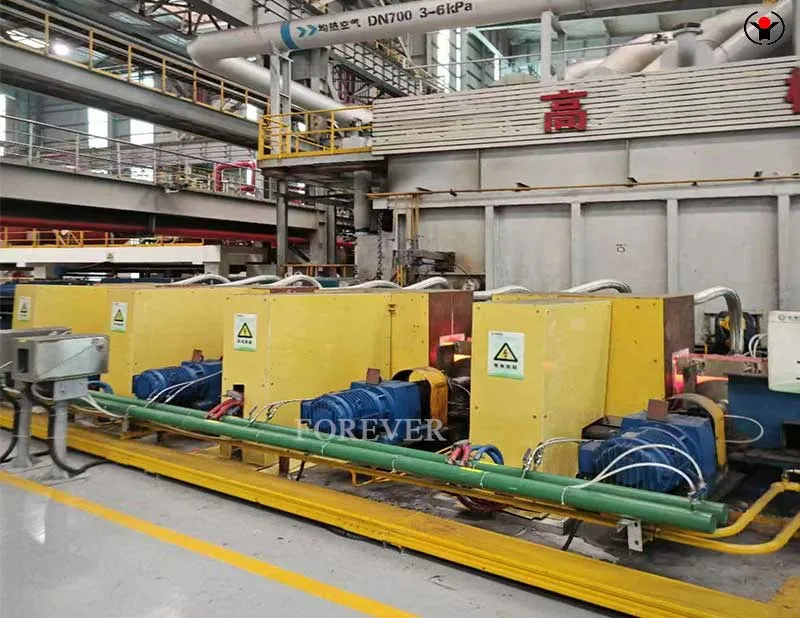

Continuous casting & rolling steel billet Induction heating furnace

Continuous casting & rolling steel billet induction heating furnace

Suitable for heating metal workpieces such as continuous casting billets, cold billets, stainless steel, etc

Equipment power:1000KW-12000KW

Device Frequency: 500Hz-1200Hz

Production capacity: 40-300t/h

Workpiece size: 120mm-160mm square billet, length 3000mm-12000mm

Applicable workpieces: Steel damage, square damage, square steel, etc

Energy Conversion: Depending on the temperature of the damaged surface of the steel, it consumes tens to tens of degrees of electricity per ton

Forever provides heating furnaces for continuous casting steel billets. The company has gathered several senior technical engineers engaged in the induction heating and heat treatment industries to form Jilian

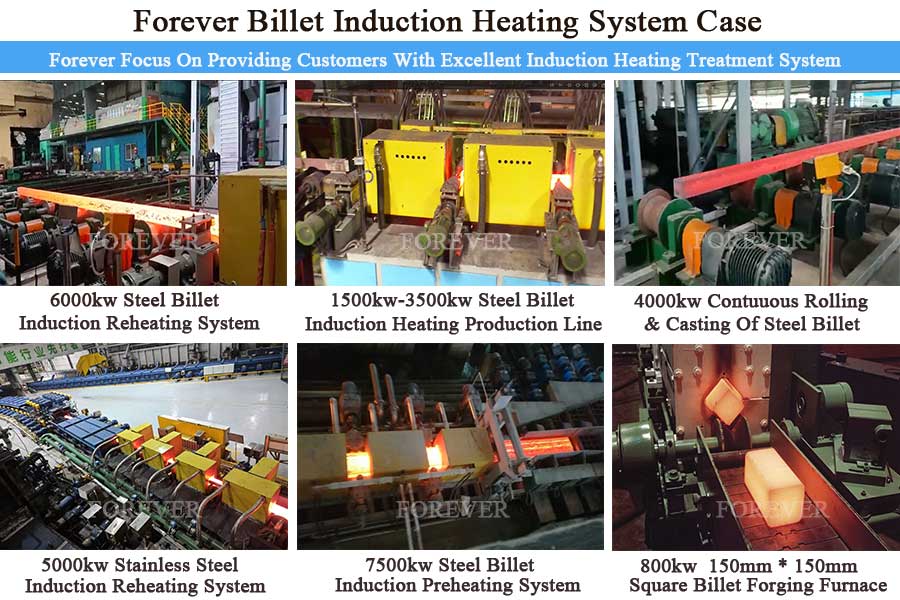

A high-tech enterprise integrating the research and development, design, production, sales, and service of billet heating and reheating equipment, always operating under the SO9002 quality management system certification CE quality certification and multiple invention patents, continuous casting and rolling steel billet heating furnaces are sold to many countries. We have many cases.

Process parameters and requirements for heating furnace for continuous casting steel billet:

1. Brand: Forever

Equipment Name: Continuous Casting & Rolling Steel Billet Induction Heating Furnace

3. Steel grades and materials: Q2359, Q3459, Q245R, A32, D32, A36, D36, etc

4. Size range: (6mmx6mm) - (500mmx500mm)

5. Length range: over 2 meters

6. The large curvature of the steel billet before entering the furnace varies depending on the type of steel. What should I do if the curvature of the steel billet is greater than 3mm/m before entering the electric furnace?

Our designed continuous casting billet heating equipment can meet your requirements by adjusting the size of the sensor according to the degree of bending of your steel grade.

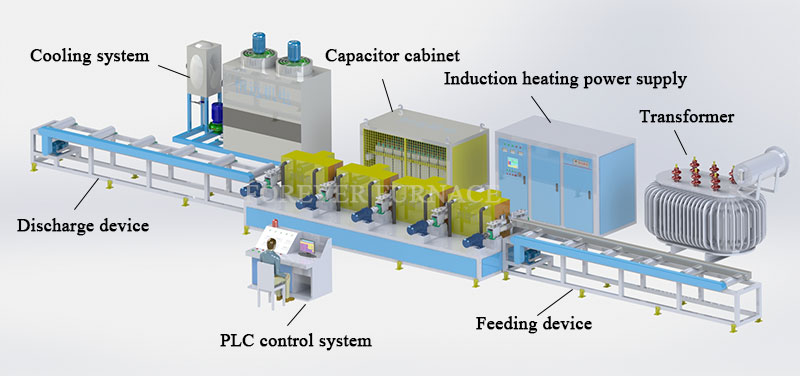

7. Control system: The entire heating process is automatically controlled by PLC, and production records such as heating quantity are displayed in a timely manner. This console is designed for standalone use, with a specially customized human-machine interface, highly user-friendly operation instructions, fully digital and deep adjustable parameters, and a one click restore function. It is easy to operate. 8. Feeding and guiding system: Each axis is driven by an independent motor reducer, with multiple axis drives and a single frequency converter control to synchronize the operation of multiple axes. The components are selected from well-known brands, with reliable quality and stable operation. Using 304 non-magnetic stainless steel guide wheels, the axial elasticity of the guide wheels is maintained to adapt to the allowable bending range of the steel. 9. Closed loop temperature control, consisting of a Raytheon infrared thermometer from the United States and a Siemens S7 from Germany, is a closed-loop control system that automatically adjusts the power supply according to the initial temperature and feed rate of the steel billet entering the induction heater, so as to maintain a constant heating temperature and uniform heating of the workpiece before it is discharged from the furnace.

The furnace body adopts a contour design, and the copper tube is wrapped with T2 hydrogen free copper. The wall thickness of the copper tube is greater than or equal to 2.5mm. The insulation material of the furnace body is made of knotted material imported from the United States, which has high strength, high temperature resistance, and longer service life. A water-cooled roller is installed between every two sections of the furnace body, and each roller is equipped with a variable frequency speed motor. The two ends of the furnace body are sealed with a whole piece of copper plate,. The furnace chassis frame is made of non-magnetic stainless steel or aluminum alloy to reduce the impact of magnetic leakage and heat generation on other components. Install a water pressure gauge and high water temperature protection for each section of the furnace body.

After sales service commitment:

1. Technical after-sales service with professional engineers for overseas equipment.

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.
