Large Billet Induction Heating Furnace Automatic Feeder

automatic feeder large steel billets induction heating furnace is suitable for the secondary heating of metal workpieces such as continuous casting billets, cold billets, and stainless steel

Equipment power: 1000KW-12000KW

Device Frequency：500Hz-1200Hz

Production capacity: 40-300t/h

Workpiece size:120mm-160mm square billet, length 3000mm-12000mm

Applicable workpieces: Steel damage, billets, square steel, etc

Energy Conversion: Depending on the temperature of the damaged surface of the steel, it consumes tens to tens of degrees of electricity per ton。

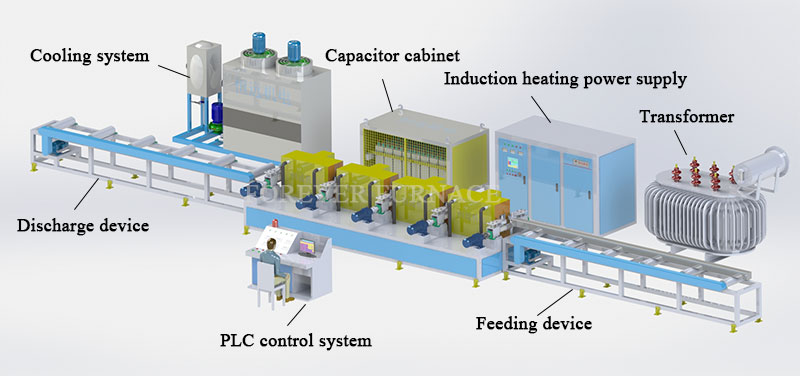

The mechanical components of automatic feeder large steel billets induction heating furnace, feeding machinery, feeding mechanism, discharging mechanism, etc. The action setting and heating cycle are automatically completed by PLC.

1. Feeding mechanism

The feeding mechanism is completed by a storage platform, a V-shaped groove in front of the furnace, and a conveying device. Install a roller discharge mechanism at the discharge port to prevent the material from colliding with the furnace outlet.

2. Furnace frame

It is a welded component made of steel, containing water, circuit, gas components, capacitor slots, copper bars, etc. Above it is a sensor.

3. Infrared temperature measuring device

The temperature measurement device of Mechanical part of automatic feeder large steel billets induction heating furnace adopts a non-contact monochrome infrared thermometer, equipped with temperature display and multiple output interfaces, for use by printers or recording instruments. There is a temperature display on the external control panel, which has the characteristics of high accuracy, good reliability, and strong resistance to environmental influences. When the measured temperature exceeds the set value, there are sound and light alarm functions.
