Steel Pipe Heat Treatment Equipment

Product use: Suitable for quenching and tempering treatment of workpieces such as pipes, steel pipes, stainless steel pipes, etc

Overall quenching: 500KW/1000HZ

Quenching pier head reheating: 120KW/1000HZ

Overall tempering: 200KW/500HZ

Tempering pier head reheating: 80KW/500HZ

Production capacity: 1.5-10 tons/hour

Scope of application: 60.3 * 4.83 * 9.9; 73.02*5.51*9.9; 88.9*6.45*9.9; 114-139.7; 188.28-219.08;

The pipe heat treatment equipment is fully automated and intelligently controlled by PLC. Do you want to have a set of pipe heat treatment equipment that is both energy-saving and environmentally friendly? Forever Electromechanical is a direct selling manufacturer specializing in the production of induction heating equipment and induction heat treatment equipment. Here, you can enjoy reliable service, high-quality product quality, and a low-energy pipe heat treatment and tempering production line.

Equipment Name: Pipe Heat Treatment Equipment

Equipment power: KGPS medium frequency quenching power supply 600KW+tempering 400KW Product specifications: diameter 90mm x wall thickness 6.45mm x length 10m Quenching and tempering temperature: 980 degrees for high quenching temperature, 700 degrees for high tempering temperature, and 30 degrees above zero for room temperature. There should be no burn on the outer surface, and the straightness after heat treatment should be ensured to be less than or equal to 20mm.

Implementation function: Temperature closed-loop control, setting quenching and tempering temperatures, automatically adjusting power supply through infrared temperature measurement (power supply power within adjustable range, higher not exceeding the total design power supply, lower not less than 50% of the total design power supply), implementing online monitoring function through touch screen, real-time viewing of quenching and tempering temperature curves, quenching water temperature and quenching water flow rate through touch screen, and saving online real-time data to touch screen.

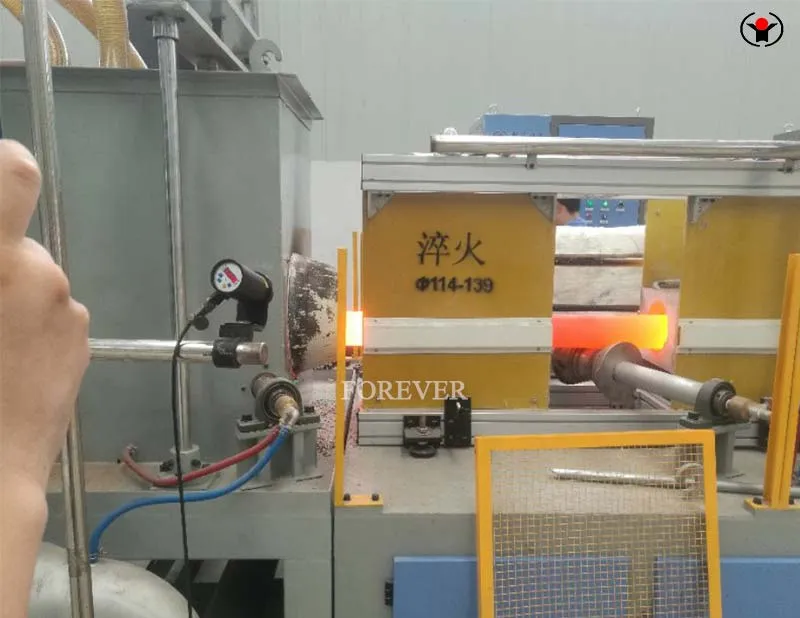

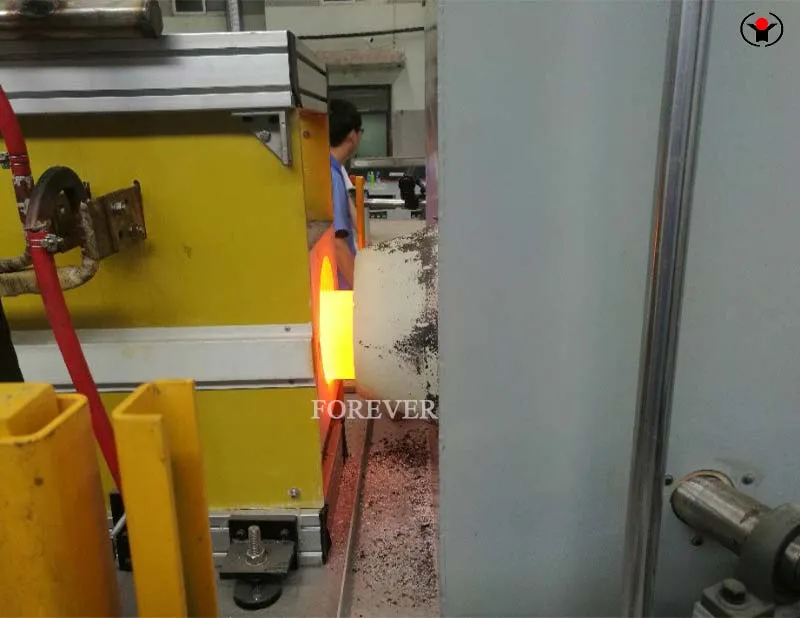

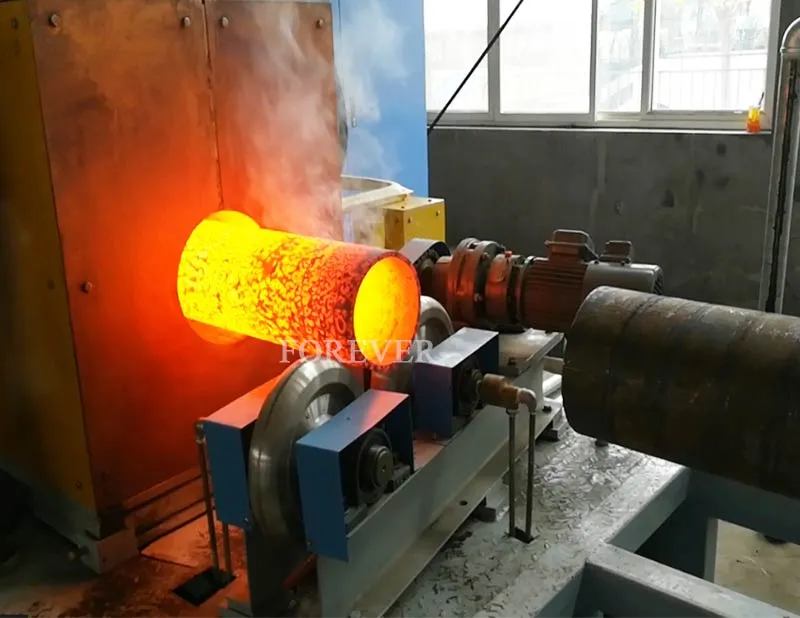

Working process of pipe heat treatment equipment:

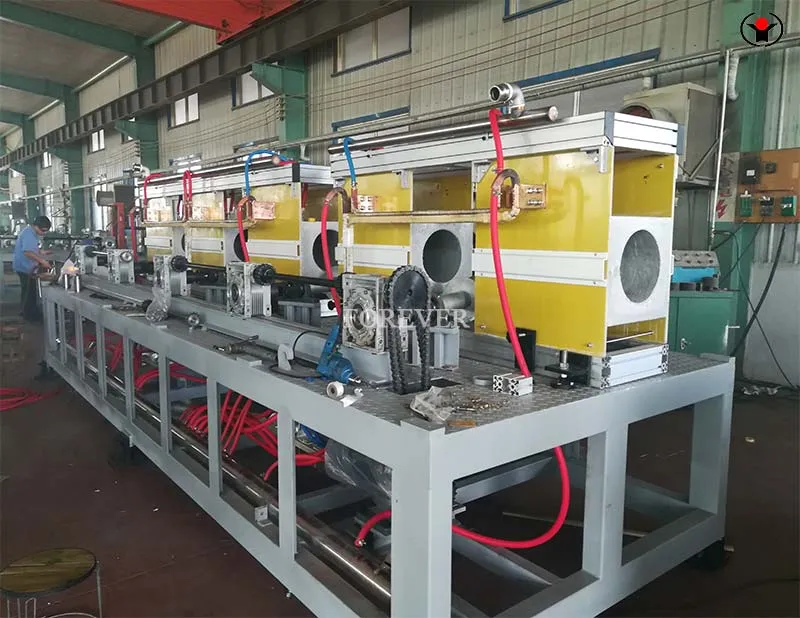

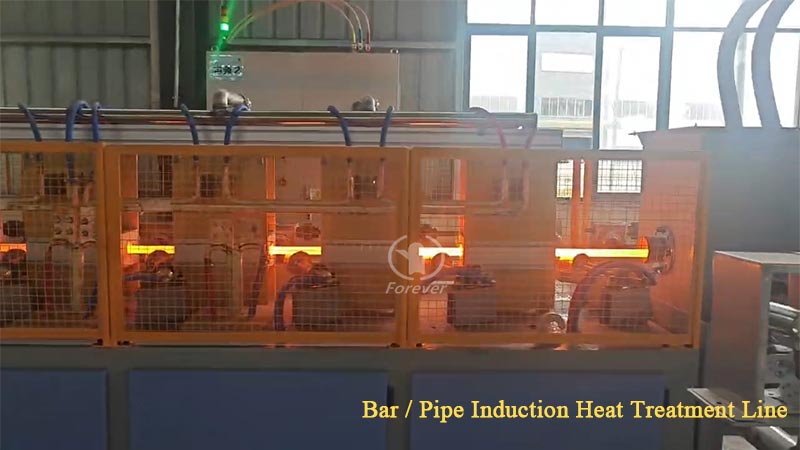

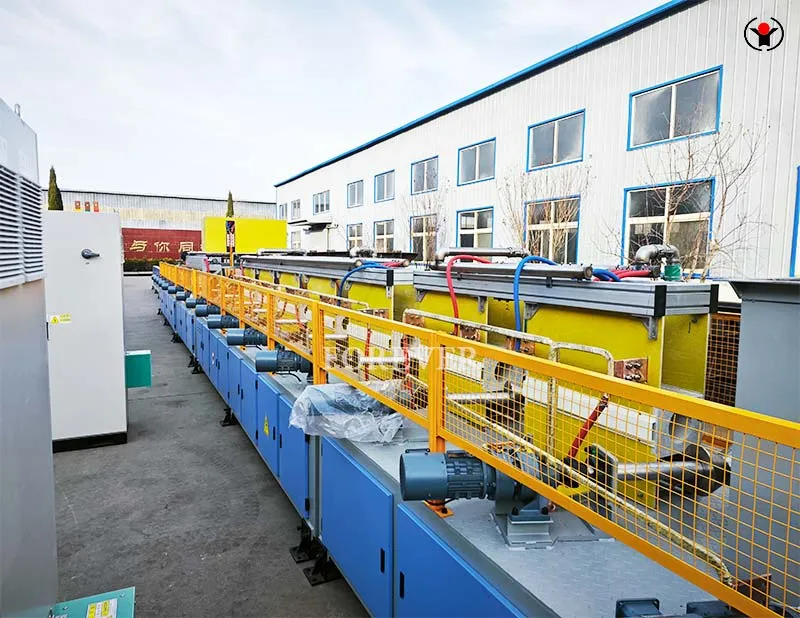

The storage rack is equipped with automatic feeding, variable frequency roller feeding, rotating heating, rotating water spray quenching treatment, rotating tempering treatment, variable frequency roller output, and material receiving system. The entire process of the pipe heat treatment equipment is automatically completed by PLC, and various parameters of the steel pipe quenching and tempering furnace production process are recorded throughout the process. The series resonant medium frequency power supply is operated.

1. Technical after-sales service with professional engineers for overseas equipment.

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.
