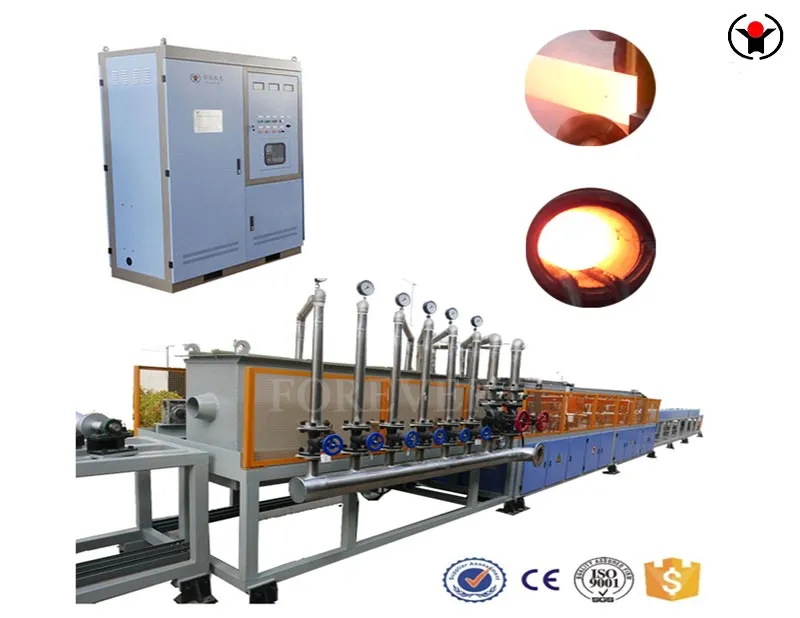

Steel Pipe Induction Hardening Heat Treatment Machine

Product Usage:

Used for Hardening treatment workshops for steel pipes with diameters greater than 20, stainless steel pipes, seamless steel pipes, thick walled pipes, etc

With practical experience in induction heating equipment, our company specializes in producing steel pipe Induction hardending machine with reliable product quality and superior performance. We can design and manufacture various types of steel pipe hardening production lines and supporting production lines according to customer requirements to meet their actual production needs. We have a sound sales network and after-sales service system to quickly and timely meet customer needs. Achieve user satisfaction.

1. The modular design, installation, and operation of intermediate frequency power supply power devices are simple and convenient.

2. Long service life and strong anti-interference ability.

3. The driver board is directly connected to the IGBT power module, which is efficient and energy-saving.

The driver board is developed by senior engineers from Yuantuo. The driver board comes with a work indicator light and a digital display, making it easy to operate and debug.

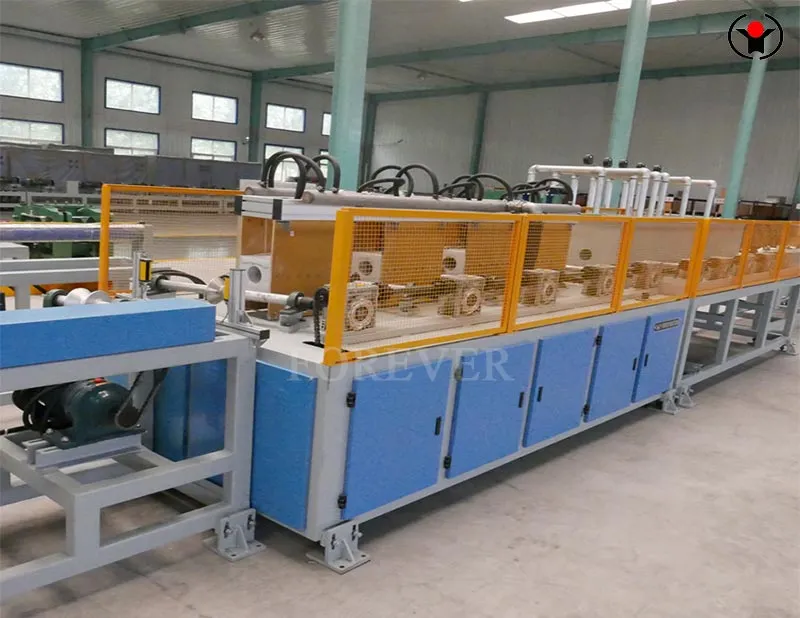

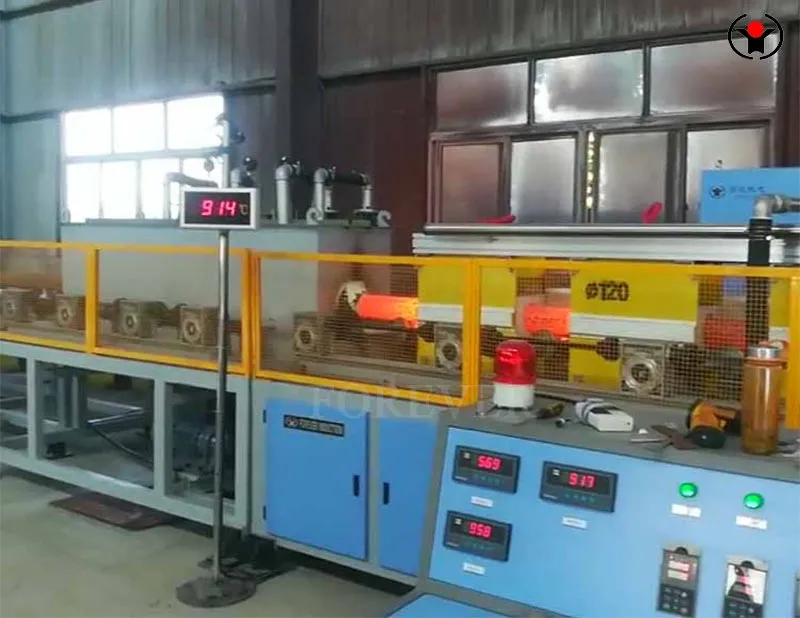

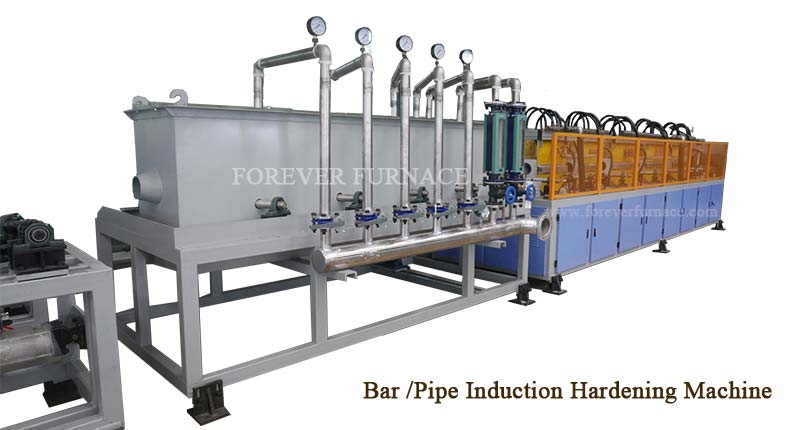

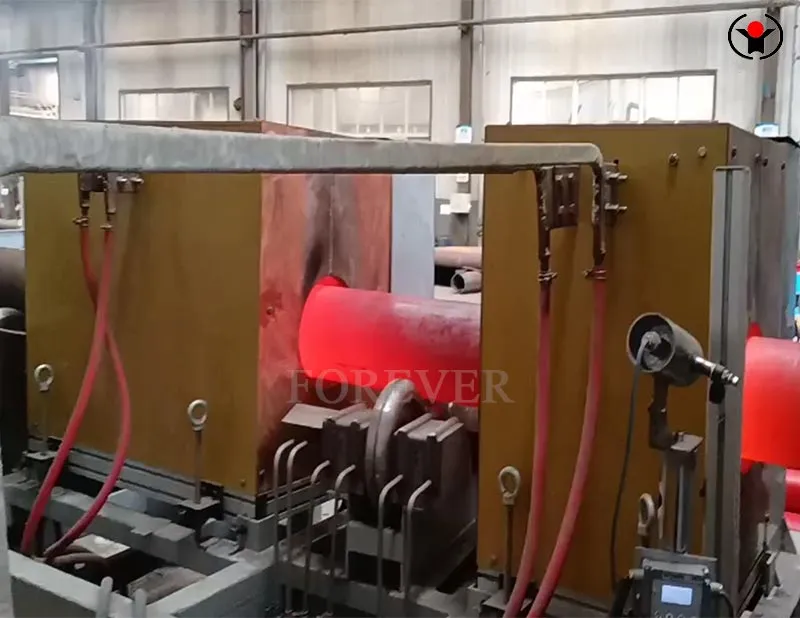

This set of medium frequency induction hardening equipment is designed for steel pipe quenching heat treatment production lines. The heating sensor adopts a quick change structure, which is convenient for maintenance and replacement. The conveying roller adopts a hollow water-cooled rotating roller, which will not cause bearing overheating and damage during induction heating, ensuring its long-term stable operation. The feeding method adopts inclined roller self rotating feeding to ensure the uniformity of heating and quenching. The steel pipe heat treatment quenching furnace adopts a dual color American Leitai thermometer for temperature detection, which heats more evenly and has a high yield of qualified products,

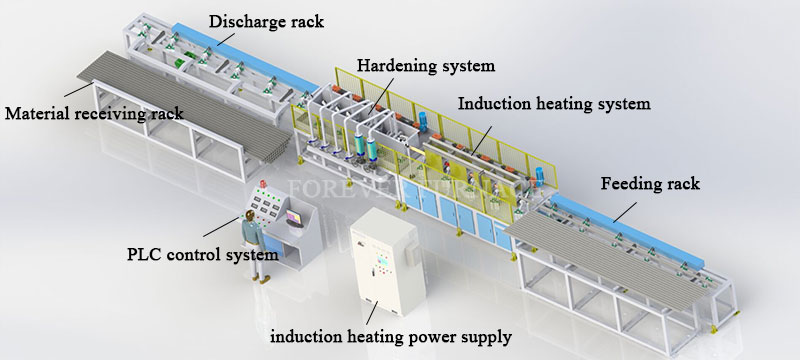

The entire working process of the steel pipe quenching production line has achieved fully automatic control of the feeding, heating, quenching, and receiving processes. PLC automatically controls the entire mechanical part. The entire process flow is as follows:

Crane material lifting, storage platform, automatic feeding and flipping system, sensor heating, quenching completion, discharge roller conveyor, automatic unloading and receiving mechanism.

1. Technical after-sales service with professional engineers for overseas tempering equipment

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.
