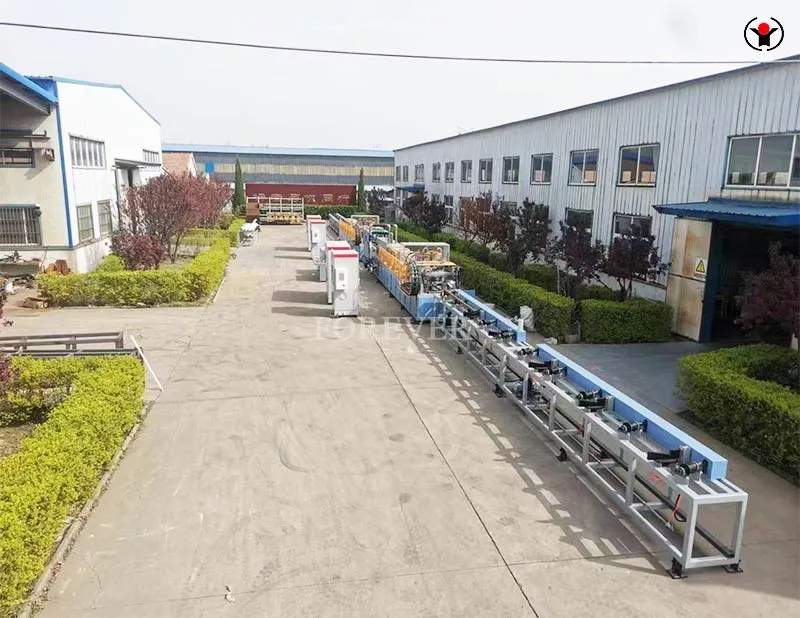

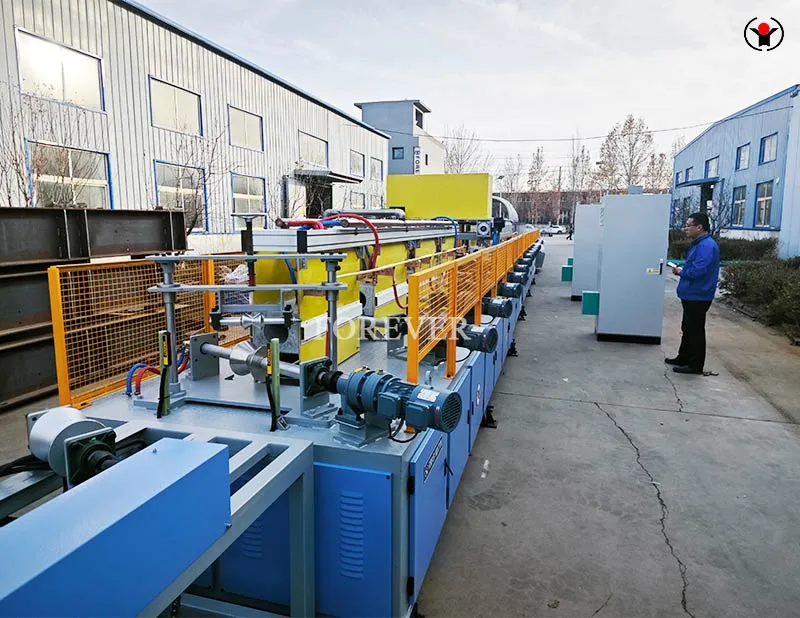

Seamless Steel Pipe Induction Hardening and Tempering Furnace

Product application: Suitable for quenching and tempering heat treatment of metal workpieces such as steel pipes, seamless pipes, stainless steel pipes, etc

Quenching:500KW/1000HZ

Quenching pier head temperature repair :120KW/1000HZ

Overall tempering:200KW/500HZ

Tempering pier head temperature repair: 80KWI500HZ

Production capacity: 1.5-10 tons/hour

Scope of application: 60.3 * 4.83 * 9.9; 73.02*5.51*9.9; 88.9*6.45*9.9; 114-139.7; 188.28-219.08;

Forever has experienced senior engineers who have worked in the field of induction heating equipment for many years. They have rich experience and practice in the design, process, manufacturing, and management of precision seamless steel pipe quenching and tempering furnaces. They focus on providing customers with excellent solutions and services for precision seamless steel pipe quenching and tempering furnaces, and have expanded their production lines to multiple countries. Here, you can enjoy our high-quality services, stable and reliable product quality, and convenient transportation location! Welcome to visit the factory and negotiate business!

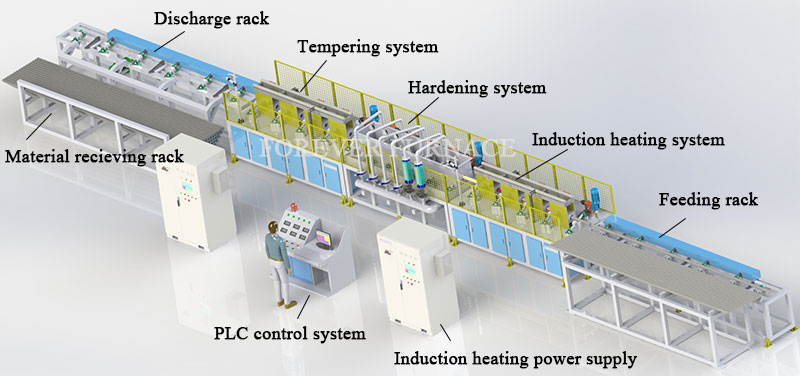

1. Quenching medium frequency power supply range: KGPS160-1300KW

2. Tempering medium frequency power supply range: KGPS160-750KW

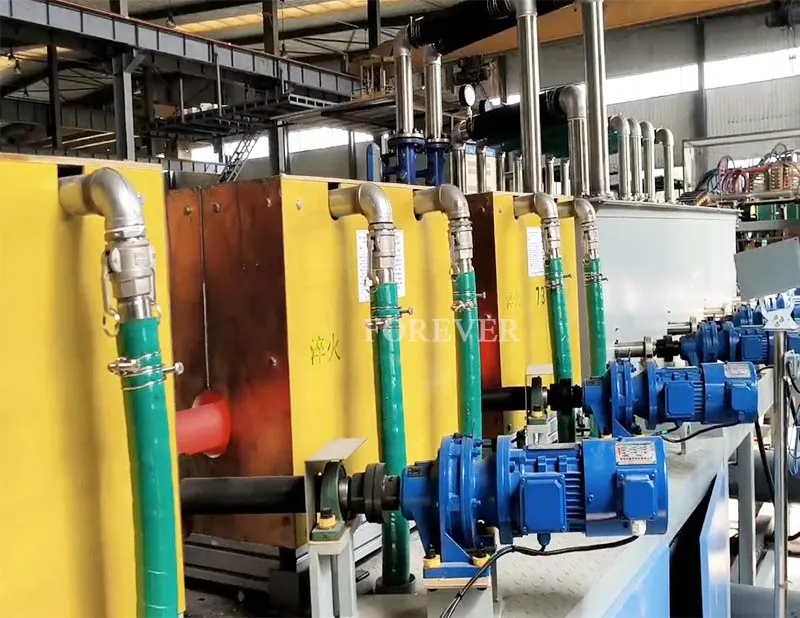

3. Quenching and tempering sensors (including capacitor banks, water and gas circuits, etc.)

4. Closed cooling system for intermediate frequency power supply and sensors

5. Copper bar connecting wire (connecting wire between power cabinet and induction furnace)

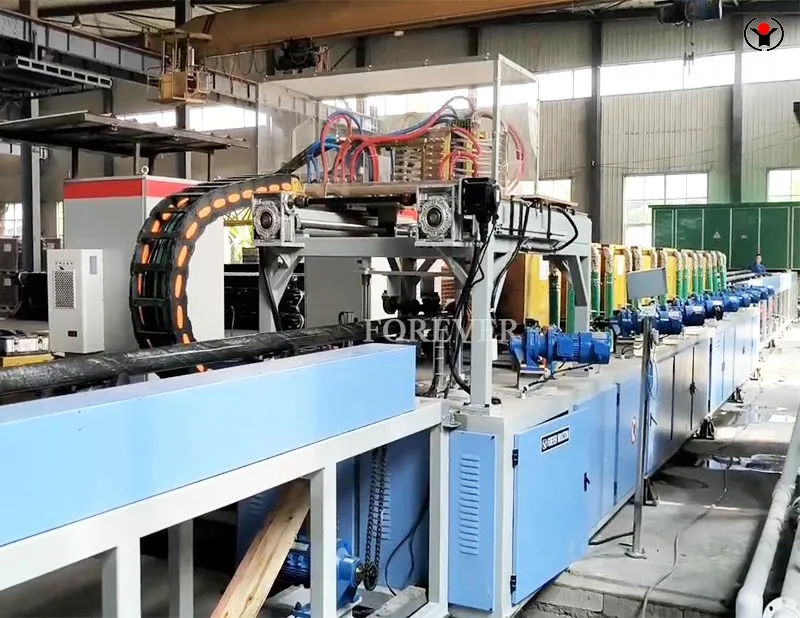

6. Input/output system (the workpiece rotates while feeding at a uniform speed, and runs smoothly, with adjustable speed and more uniform heating)

7. Quenching and tempering spray system

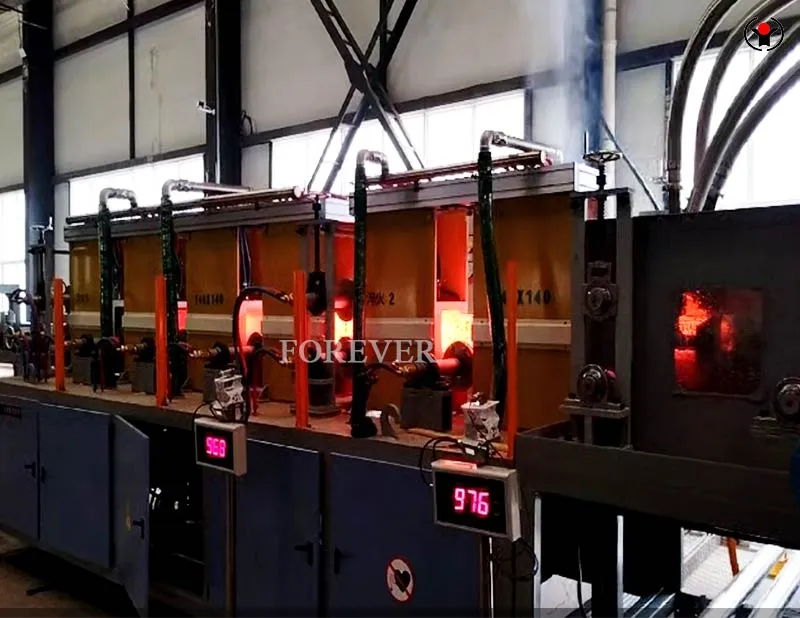

8. Quenching and tempering infrared temperature measuring device (equipped with American Raytheon infrared thermometer to display the temperature of the workpiece in real time, allowing the workpiece to be observed at any time during the quenching and tempering process)

9. Plc control system (capable of controlling the operation of the entire mechanical part, human-machine interface, fully digital, highly user-friendly operation). The central console (including variable frequency speed regulation and temperature control, Huayan industrial computer, remote start, etc.) is used to directly operate the entire quenching and tempering equipment on the central console, requiring only one person to operate the entire equipment, saving labor and costs.

1. Technical after-sales service with professional engineers for overseas equipment.

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.
