Applications of Anti-Collision Rod Quenching Equipment:

Suitable for metal workpieces such as anti-collision rods and profiled steel.

As a non-standard customized product, our engineers strictly design and manufacture based on the process parameters you provide. Please provide detailed process parameters including workpiece specifications, heating temperature, production capacity, and other special requirements when consulting. Forever's technical engineers will design a surface induction quenching equipment tailored to your needs.

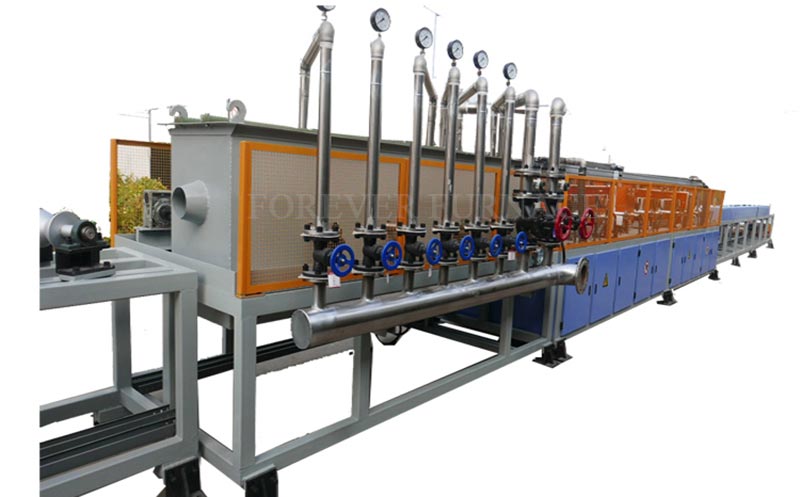

Anti-Collision Rod Induction Quenching Equipment

Composition of Anti-Collision Rod Quenching Equipment:

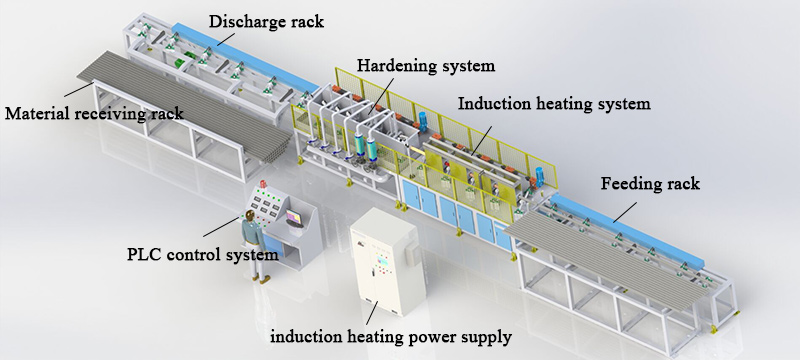

The surface induction quenching heat treatment equipment comprises FarTuo's proprietary intelligent medium-frequency induction heating system, medium-frequency quenching system, closed-loop water cooling system, storage rack, quenching mechanical conveying device, infrared temperature measurement system, spray quenching system, output device, discharge rack, and central control system.

Process Flow of Anti-Collision Rod Induction Quenching Equipment:

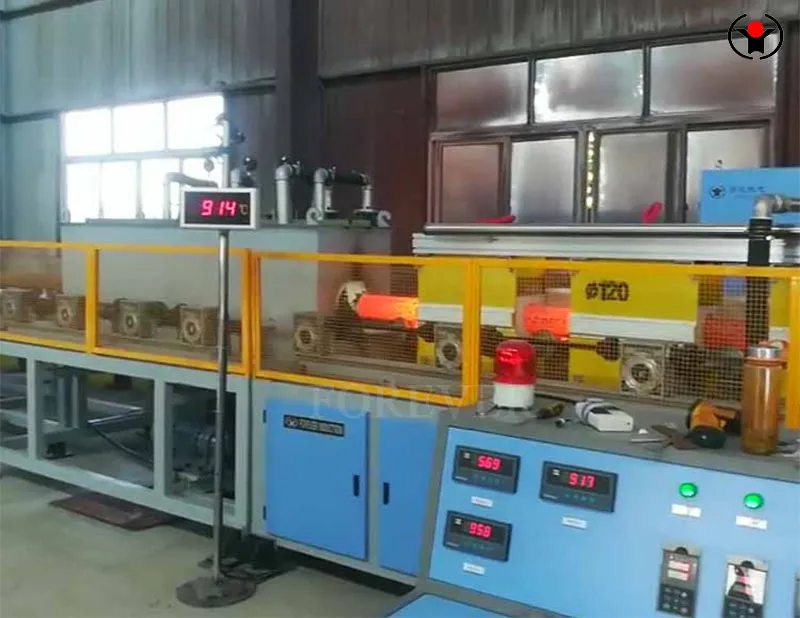

After anti-collision beams are heated to a certain temperature, they are processed by the quenching spray system. The heating method employs online continuous heating.

With the complete anti-collision beam Induction quenching equipment, placing the workpiece on the storage rack initiates automated operations controlled by the PLC system. The fully automated system stores, displays, automatically records, and prints mechanical operation parameters, heating parameters, quenching parameters, and temperature data. The system operates automatically according to preset process parameters, ensuring simple operation.

Anti-Collision Rod Induction Quenching Equipment
