Tubing heat treatment line

Tubing heat treatment line

Features:

1.Application:Heat treatment for casing, tubing, oil pipe
2.Available Power:100KW-10000KW
3.Non-standard Product:Professional Customization

Product Detail

Application Video

Product Tags

Forever Tubing heat treatment line is non-standard product, please tell us the tubing diameter, wall thickness, length and capacity.Then our engineer will provide you with suitable proposal for tubing induction heat treatment equipment .

● Application: Quenching and tempering for tubing, casing, pipes.
● Heating way: Induction heating
● Diameter: ø60.32-114.30 mm
● Length : 9-14 m
● Temperature for quenching900-930℃
● Temperature for tempering550-580℃

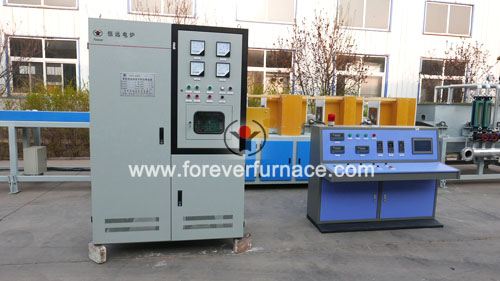

tubing heat treatment

Main configuration for the line for tubing heat treatment line

● Medium frequency power supply: The power will be matched as per your productivity.
●  Inductor for quenching
● Spay system for cooling
●  Inductor for tempering
●  Closed cooling system for IF power supply & inductor
●  Infrared temperature measurement and display
●  Remote control with PLC touch screen(including power supply start & stop, frequency control speed motor,Temp.display and closed loop control.)
●  Mechanical part : Storage platform, transportation device etc.

New type energy saving power supply

● Parallel resonance design, phase-shift control; mature and stable performance; more advantages for the power of 3000KW or above.
● DSP control, start with instant capture & Phase-Locked, meet the requirement of frequent start and stop ; 100% successful start rate.
● Self-Adaptive at frequency variation or load variation;the frequency adaptation range is 200-10000Hz; induction furnace replacement is automatic matching, no need to make any manual adjustments.
● The power supply cabinet adopts T2 copper which is processed by sandblasting and passivation; low leakage inductance, antioxidant, effectively reducing line losses.
● Full touch screen control, pure digital setting, with complete process record and strict purview control.The main parameters can be one key recovery of the factory settings.

certificateproduction-basecustomer visting

company introduce

More details about our casing/tubing induction heating equipment, please feel free to contact us by sending email to tom@foreverfurnace.com or talk to me on whatsapp 0086-13303078975
