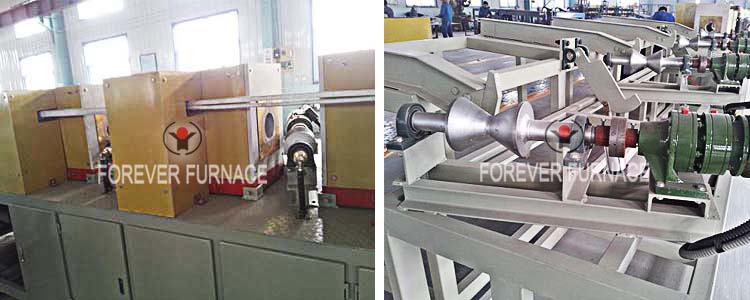

Steel Pipe Induction Heating Equipment

Steel Pipe Induction Heating Equipment


1.Application:Heat Treatment for Steel Bar,Steel Pipe,Oil Steel Pipe,Shaft,Oil Cylinder

2.Available Power:100KW-10000 KW

3.Non-standard Product;Professional Customization

Product Detail

Application Video

Product Tags

Engaged in manufacturing induction heating equipment for over 18years,Forever Furnace is one of the leading manufacturers of steel pipe induction heating equipment in China.The offered equipment is mainly used for steel pipe heat treatment for steel pipe plant.The good features of advanced induction heating technology, cost-effective solutions and powerful team of after-sale services has make our brand get good reputation in the supply of steel pipe induction heating equipment.

Steel Pipe Induction Heating Equipment Details

1.Steel Pipe Induction Heating Equipment Principle:

With easy operation and automatic infrared thermometer for the equipment,the user can monitor and control the temperature of the steel pipe during the whole processing and control the production cycle time with the time reply.When the equipment start to feed the material,the infrared thermometer will leave the pipes and rotate an angle,then the pusher will push the bars to induction heaters.Next the rollers will transmit the heated pipes to the roller end.Then feeder will turn the steel pipe to the discharging rack.During the transmitting process,the pusher will return normal and the next pipe will turn to the feeding rack.At the same time,the thermometer will be back to measurement position and contact the pipe head.Then one time feeding and discharging is over.Usually,the production line will be equipped with one holding furnace to make the pipes have uniform heating.

2.Reliable Performance of the Steel Pipe Induction Heating Equipment:

(1)IGBT AC variable frequency driving system can satisfy adjustment requirement.Low cost,simple construction and reliable running.

(2))IGBT induction heating power increase the system reliability and stability.

(3)All the induction heating system and transmission system controlled by PLC,induction heating system controlled by output close-loop and transmission system controlled by speed close-loop make sure that the machinery transmission speed and  output power of induction heating system remain constant.

(4)The technology of processing parameters catalog storage make sure that every specification can be produced in the same processing condition.

(5)Temperature compensation technology eliminate influence of the temperature fluctuation to the product quality.

3.Forever Furnace Customer Commitment for Steel Pipe Induction Heating Equipment:

1.The service mode of “1+2”,that is one sales person and one after-sales person will serve you once you buy our steel pipe induction heating equipment.

2.Provide local installment instruction and adjustment free of charge.Responsible for the local training for the technician and operator.

3.Provided the whole technical document including the Electricity Schematic Diagram.

4.One year warranty period,long term technical service and spare parts support.

5.For the new equipment,we will make a call every 15 days to know the equipment quality status.

6.If the customer equipment fault must be solved in customer’s factory,we will send technician to solve problem within 24-48 hours.


certificate vistingcompany introduce

 Forever Furnace is one of the leading induction heating equipment manufacturer in China.Focused on quality and service all the time,we will be your best partner for induction heat treatment technology.
