Square Billet Automatic Feeder Induction Heating Equipment

Product application: Suitable for rolling heating of metal workpieces such as square billets, continuous casting billets, cold billets, stainless steel, etc

Equipment power:1000KW-12000KW

Device Frequency : 500HZ-1200Hz

Production capacity: 40-300t/h

Workpiece size:120mm-160mm square billet, length 3000mm-12000mm

Applicable workpieces:Steel damage, square damage, square steel, etc

Energy Conversion: Depending on the temperature of the damaged surface of the steel, it consumes tens to tens of degrees of electricity per ton

Forever is committed to the production and design of square steel billet induction heating furnaces with many years of experience. The process is mature and stable, and the operation is reliable. The square steel billet heating furnace has one click operation, and one person can control the production of the entire medium frequency induction heating furnace. There is complete data monitoring, process recording, and strong traceability during operation. The specially customized human-machine interface of the square steel billet heating furnace displays production data in real time. Our professional technical team provides you with high-quality products and satisfactory services.

1. Equipment brand: Forever Electromechanical

2. Customized processing: Yes

3. Equipment name: Square steel billet heating furnace

4. Square billet size range: (6mmx6mm) - (500mmx500mm)

5. Length range of billet: over 2 meters

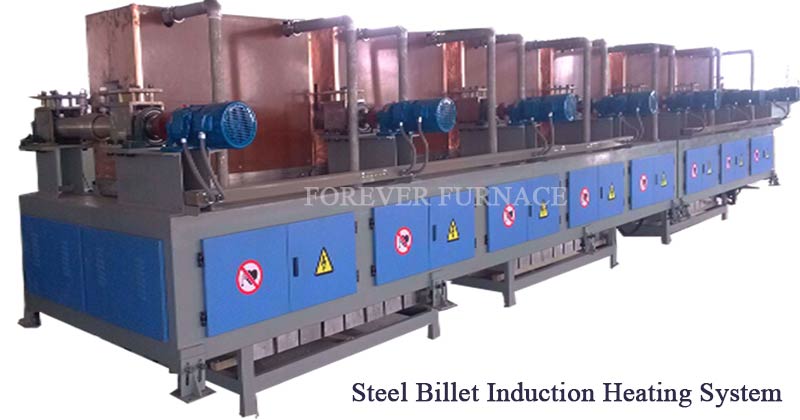

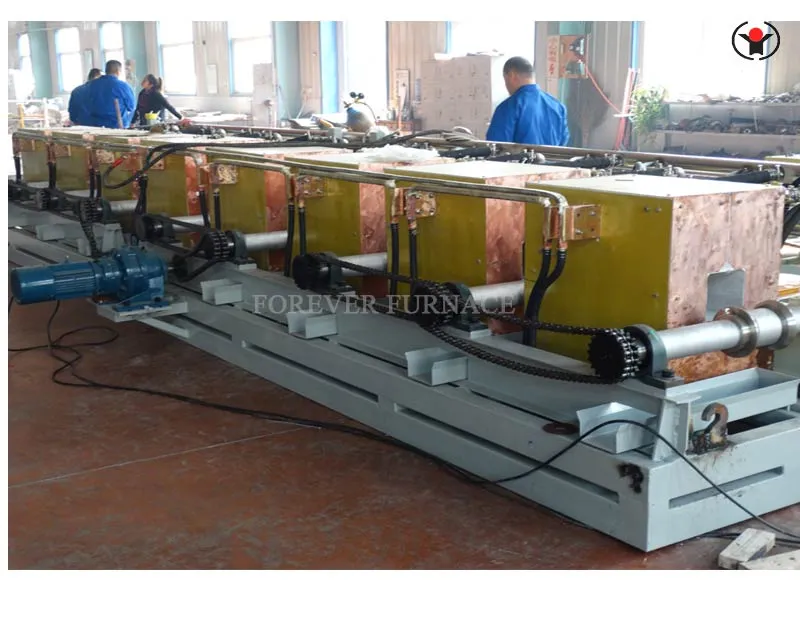

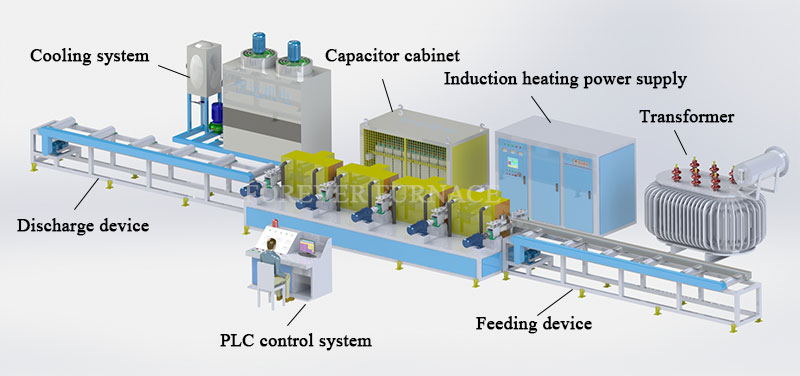

The mechanical components of the square steel billet heating furnace include the furnace frame, feeding mechanism, feeding mechanism, discharging mechanism, etc. The action setting and heating cycle are completed by LPC.

1. Feeding mechanism

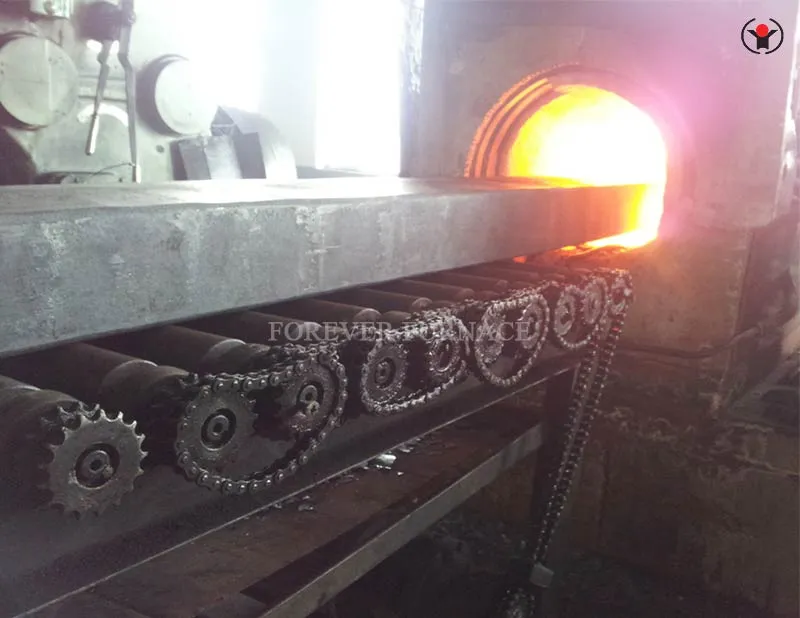

The feeding mechanism is completed by a storage platform, a V-shaped groove in front of the furnace, and a conveying device. Install a roller discharge mechanism at the discharge port to prevent the material from colliding with the furnace outlet.

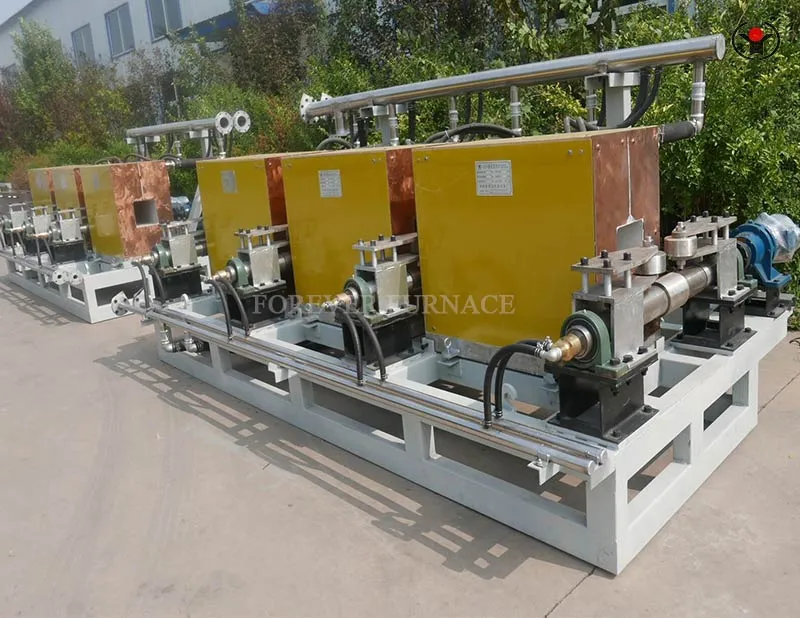

2. Furnace frame

It is a welded component made of steel, containing water, circuit, gas components, capacitor slots, copper bars, etc. Above it is a sensor.

3. Infrared temperature measuring device

The temperature measurement device for the square steel billet heating furnace adopts a non-contact monochrome infrared thermometer, equipped with temperature display and multiple output interfaces, for use by printers or recording instruments. There is a temperature display on the external control panel, which has the characteristics of high accuracy, good reliability, and strong resistance to environmental influences. When the temperature of the star exceeds the set value, there will be sound and light alarm functions.
