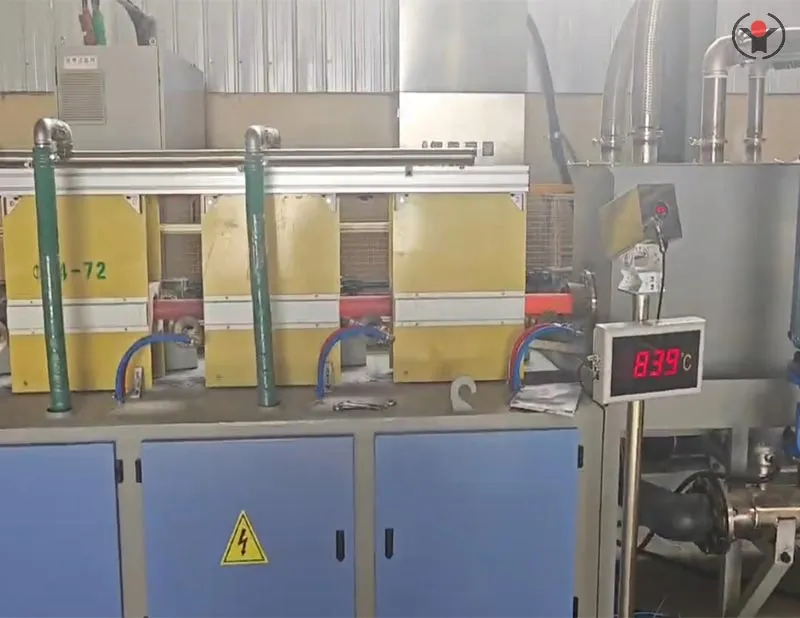

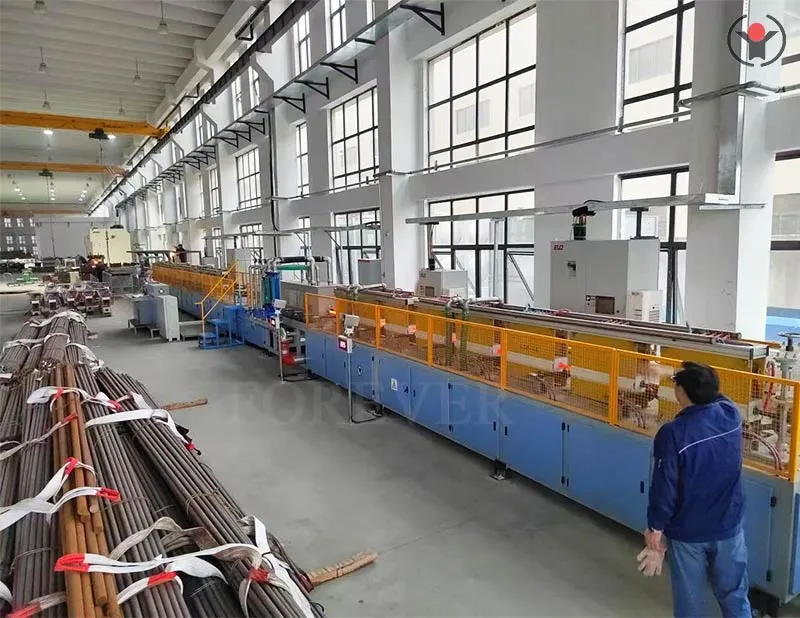

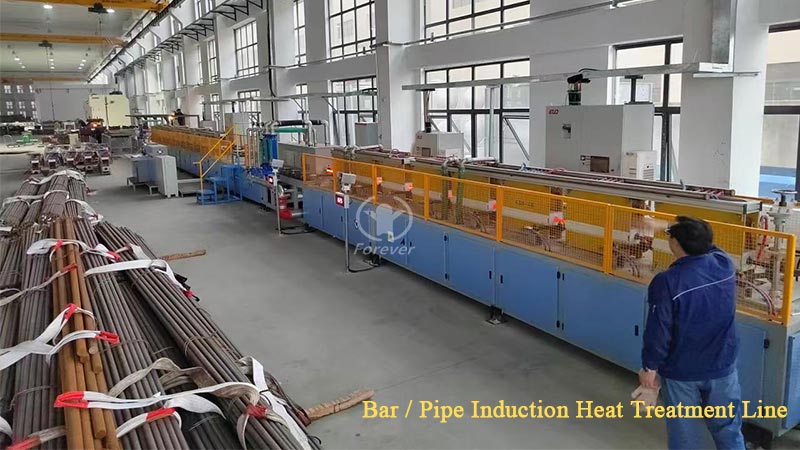

Grinding rod induction hardening and tempering equipment

Suitable for hardening and tempering heat treatment of metal workpieces such as steel bars, stainless steel, grinding rods, and lead screws

Quenching power/frequency:160-1000KW/0.5-4KHz

Tempering power/frequency:100-600KW/0.5-2.5KHz

Production Capacity:0.5-3.5t/h

Scope of application: 8mm-120mm

Main application: Suitable for quenching and tempering heat treatment of steel bars, low-carbon alloy steel, wind turbine bolts, lead screws, and hydraulic cylinder rods.

Energy Conversion: Adopting the method of hot quenching followed by high-temperature tempering, the power consumption per ton is 420-480 degrees.

The grinding rod induction hardening and tempering equipment produced by our factory is used for the production of grinding rods in industries such as mining, cement building materials, thermal power generation, flue gas desulfurization, magnetic materials, and chemical industry. The grinding rod induction hardening and tempering equipment adopts a high-performance structure to evenly heat the workpiece. Factory direct sales, after rigorous quality testing, the quality is guaranteed, so feel free to choose!

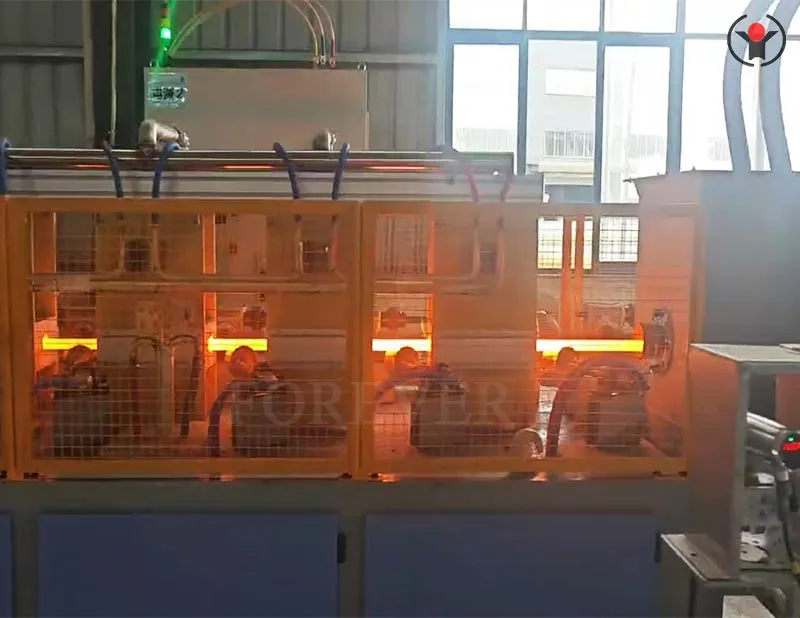

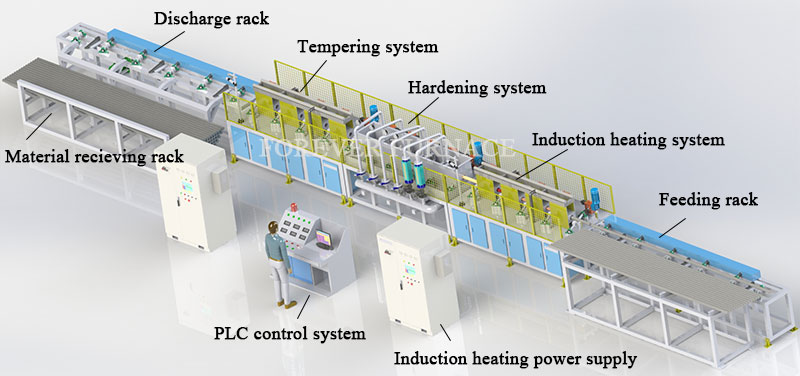

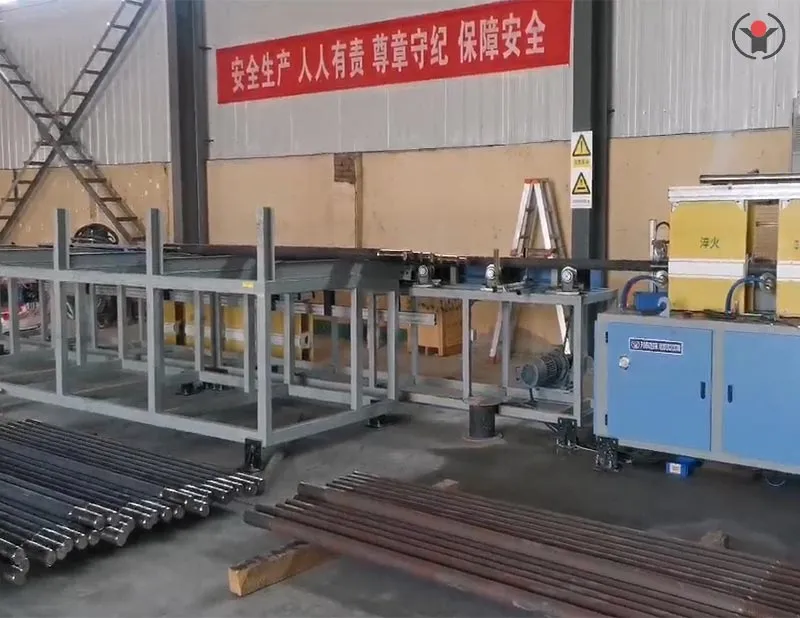

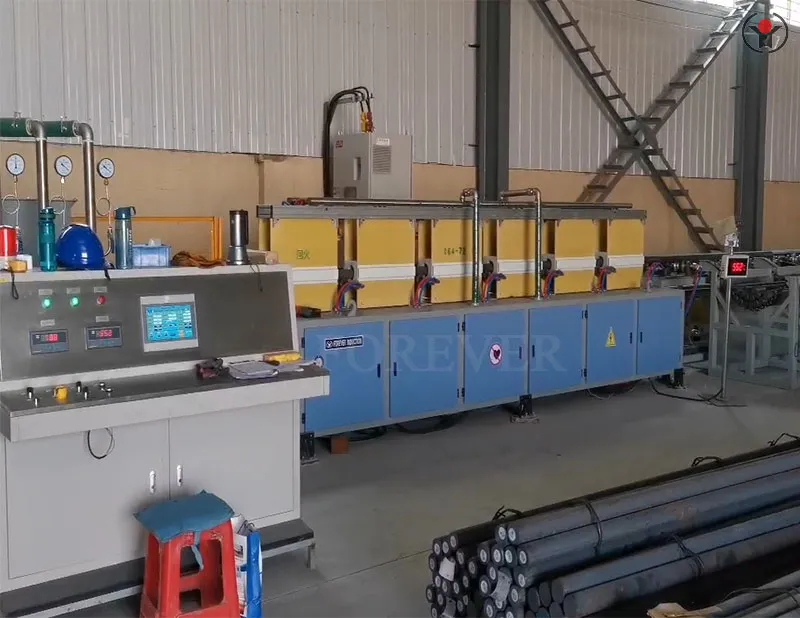

The mechanical actions of this complete set of equipment are controlled by PLC, and only the rod material needs to be manually placed on the storage rack. The rest of the actions are automatically completed by the system controlled by PLC. A set of programs can be set according to each product specification of the user. When working, simply click on the product specification that needs to be produced on the touch screen, and all actions will be automatically completed by the PLC program. Crane material lifting, storage platform, automatic feeding mechanism, feeding roller conveyor, quenching induction heating, infrared temperature measurement, discharging roller conveyor, spray quenching, quenching completion, tempering conveying mechanism, tempering induction heating, infrared temperature measurement, discharging roller conveyor, cooling mechanism, and receiving rack.

The internal stress of the round steel has not been relieved (it is very easy to break the rod and not wear-resistant); The internal structure of round steel is loose or not tight, etc. Due to these defects, the use of round steel as a grinding rod can result in significant wear and tear, as well as problems such as bending, breakage, winding, sharp ends, low production, failure to achieve the expected pass rate, and heavy workload in subsequent magnetic separation processes. Therefore, a grinding rod induction hardening and tempering furnace is needed, which extends the service life, improves the production efficiency of the grinder, saves production costs, and reduces the labor of workers power.

1. Technical after-sales service with professional engineers for overseas equipment.

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.
