Rails Induction Hardening Equipment

Product use: Used for quenching heat treatment of metal workpieces such as rails, steel bars, steel pipes, stainless steel, etc.

Forever specializes in the production of induction heating and quenching equipment, which is energy-saving, environmentally friendly, and efficient. It uses American Leitai thermometers to control the temperature of metal workpieces, ensuring uniform heating and quenching. Forever provides free technical solutions and quotations for induction heating and quenching equipment to users. Forever has an excellent service team dedicated to serving your medium frequency induction heating equipment

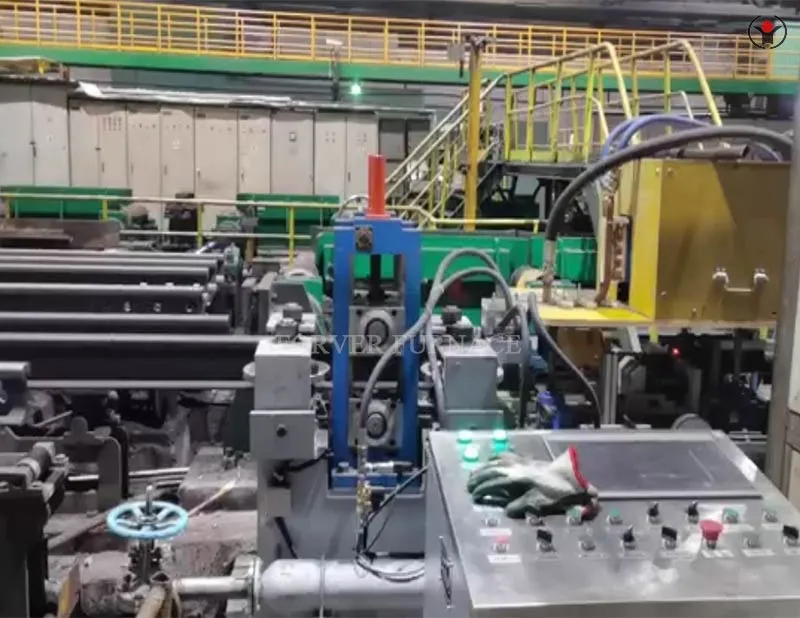

Rail Induction Hardening Machine

Main technical parameters of induction heating hardening equipment:

1. Power supply system: air-cooled IGBT new energy-saving induction heating power supply

2. The hourly output is 0.5-3.5 tons, with a suitable range of 820-0180mm.

3. Conveyor roller conveyor: The axis of the roller conveyor forms an angle of 18-21 ° with the axis of the workpiece. The workpiece rotates while moving forward at a constant speed, making the heating more uniform. The roller conveyor between the furnace bodies adopts

304 non-magnetic stainless steel and water-cooled,

4.Roller grouping: The feeding group, sensor group, and discharge group are independently controlled, which is conducive to continuous heating without creating gaps between workpieces.

5. Temperature closed-loop control: Both heating and quenching are controlled by the American Leitai infrared thermometer closed-loop control system, with precise temperature control.

6. Industrial control computer system: Real time display of the current working parameter status, workpiece parameter memory, storage, printing, fault display, alarm and other functions.

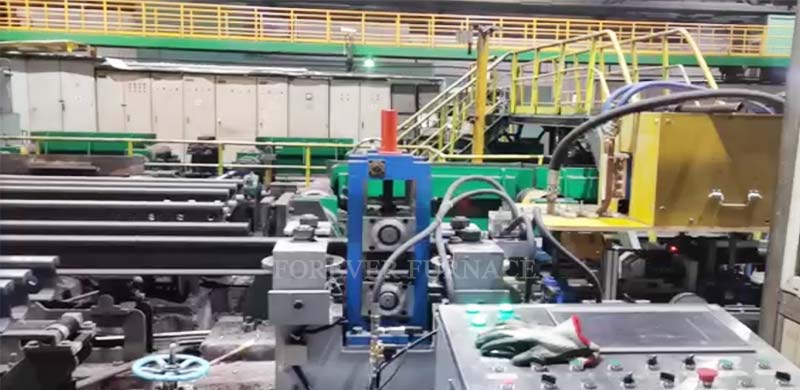

Rail Induction Hardening Machine
