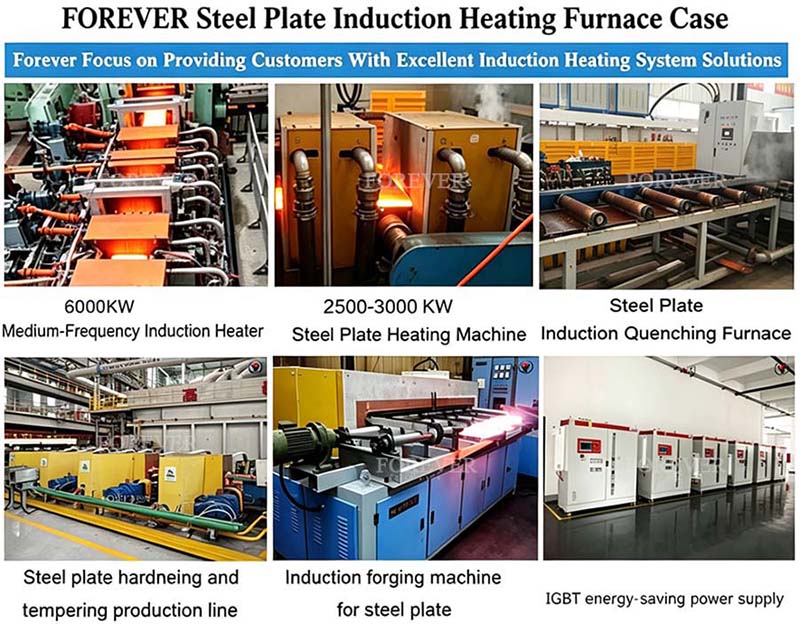

Steel Plate Induction Heating Furnace: Advantages of Induction Heating Equipment with Infrared Closed-loop Temperature Control

Forever Electromechanical, a trusted manufacturer of  induction heat treatment machine, highlights the core strengths of its steel plate induction heating furnace equipped with infrared closed-loop temperature control system. Designed for preheating, quenching and surface heat treatment of medium and thick steel plates, this furnace addresses common industry issues including uneven heating, temperature drift and unstable metallurgical results. The intelligent temperature regulation system brings reliable, repeatable and energy-efficient heat treatment solutions for steel processing factories worldwide.

Precise Infrared Closed-loop Temperature Control Eliminates Temperature Deviation

The biggest highlight of this steel slab heat treatment system lies in its full-range infrared closed-loop temperature control. High-precision infrared pyrometers are installed along the heating zone to continuously capture real-time surface temperature of moving steel plates. Collected temperature data is fed back instantly to the IGBT induction power supply. The system automatically adjusts output power to maintain target temperature. Temperature tolerance can be controlled within ±3℃. Compared with open-loop manual setting systems, it avoids overheating or insufficient heating caused by plate thickness variation, moving speed fluctuation or material difference, ensuring consistent temperature across the whole steel plate surface.

Uniform Induction Heating Improves Steel Plate Metallurgical Performance

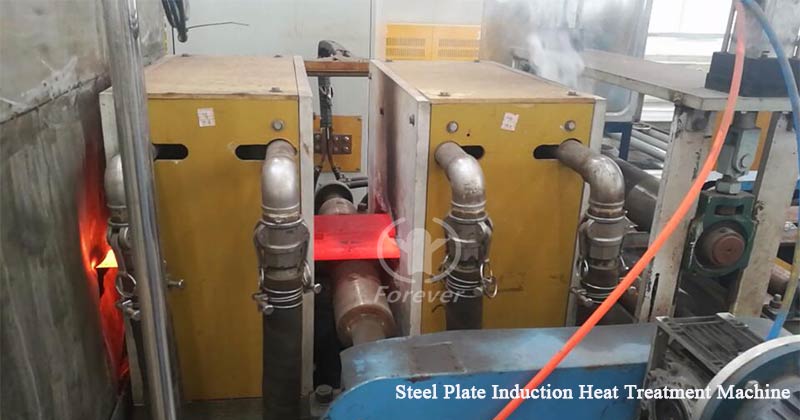

The furnace adopts segmented induction coil layout matched with the closed-loop temperature monitoring system. Alternating electromagnetic field generates internal heat inside the steel plate, different from slow surface heat transfer of traditional resistance furnaces. The steel plate obtains uniform heating through its thickness. After heat treatment, the workpiece gains balanced hardness, fine and stable grain structure. It effectively reduces internal stress, deformation and local overheating defects. Whether for plate quenching, preheating or stress relief treatment, the finished steel plate maintains stable mechanical properties and low reject rate.

Intelligent Automatic Operation Reduces Labor and Operating Costs

The whole set of steel plate induction heat treatment equipment is equipped with industrial PLC and touch screen HMI. Multiple heat treatment recipes can be stored for different steel grades, plate widths and thicknesses. Operators can call preset parameters with one click during product changeover. Combined with infrared closed-loop feedback, the system realizes unattended automatic running. Conveying speed, heating power and cooling parameters are adjusted dynamically in real time. Multi-protection functions including over-temperature, over-current, water shortage and fault alarm guarantee safe continuous production. It cuts manual intervention and lowers dependence on experienced technicians.

High Energy Efficiency and Low Oxidation for Greener Production

Induction heating only heats the steel plate workpiece without heating the whole furnace chamber, achieving high electrothermal conversion efficiency. The infrared closed-loop system prevents unnecessary excessive power output, further saving electricity consumption. Fast heating speed shortens the time steel plates stay at high temperature, greatly reducing surface oxidation and decarburization. Less oxide scale means less material loss and cleaner workshop environment. The equipment produces no open flame or flue gas, complying with increasingly strict global industrial environmental requirements.

Modular Design for Flexible Layout and Convenient Maintenance

Forever Electromechanical adopts modular design for this steel plate induction heat treatment production line. Induction coils, infrared temperature sensors, power cabinet and roller conveyor are independent modules. It can be customized according to client’s plate size, production capacity and workshop space. Sensors and key components are easy to access for inspection and replacement. The company provides full lifecycle services including scheme design, manufacturing, on-site installation, commissioning and technical training. With mature infrared closed-loop control technology, Forever Electromechanical keeps helping steel plate manufacturers upgrade heat treatment lines and achieve high-quality automated production.
