Steel Billet Induction Heating Machine｜Forever Electromechanical

Introduction

Global metal forging and hot rolling manufacturers are continuously seeking low-carbon, high-stability heating solutions to cut operational expenses while improving workpiece quality. Forever Electromechanical, a professional induction heating equipment exporter, upgrades its Steel billet induction heating furnace equipped with mature IGBT medium-frequency power supply. The system delivers outstanding energy-saving performance and precise temperature control for round and square steel billets before hot forging, rolling and heat treatment. This new generation heating unit has gained growing recognition from metal processing enterprises across Europe, Russia, Middle East and Southeast Asia.

IGBT Power Supply: Core of Energy-Saving Performance

The biggest highlight of this billet induction heating machine lies in self-developed full digital IGBT power cabinet, replacing conventional SCR power sources widely used in older furnaces. The IGBT inverter design lifts electrothermal conversion efficiency above 95%, and maintains power factor over 0.97 under variable working loads. It effectively cuts idle no-load power consumption during billet feeding intervals. Compared with traditional heating equipment, the unit reduces total power consumption by 18–28%, forming obvious energy saving effect.

Different from gas furnaces or resistance heating devices, induction heating transfers heat inside steel billets directly through electromagnetic induction. There is no extra energy loss from heating air or furnace refractory materials. The IGBT module supports fast power adjustment and soft switching, lowering circuit switching loss and harmonic interference to the power grid. For long-time continuous 24-hour production, the accumulated electricity cost reduction brings remarkable economic returns for large forging workshops.

Uniform Heating & Lower Oxidation Loss

Beyond energy saving, precise temperature consistency is another core advantage. The steel billet electric induction heating machine adopts optimized induction coil and closed-loop infrared temperature detection system. Temperature deviation inside steel billets can be controlled within ±3℃. Uniform through-heating avoids huge thermal stress caused by rapid temperature jump, greatly reducing oxide scale loss on billet surface. Less oxidation improves finished billet yield and cuts raw material waste, solving common defects such as uneven metallographic structure and cracking during forging.

The equipment supports flexible adjustment for multiple steel grades and billet diameters. Operators can set target temperature and conveying speed on HMI touch screen. The system automatically matches output power without repeated manual debugging. It can seamlessly connect with automatic feeding machines, forging presses and hot rolling mills to form fully continuous production lines.

Stable Operation & Global Customized Service

Forever Electromechanical designs multiple safety protection modules, including overcurrent, overvoltage, water shortage and overtemperature protection, to guarantee stable heavy-load running. Modular structure simplifies daily maintenance, shortens downtime during coil replacement or specification switching. The whole set complies with international industrial standards and can adapt to various workshop environments.

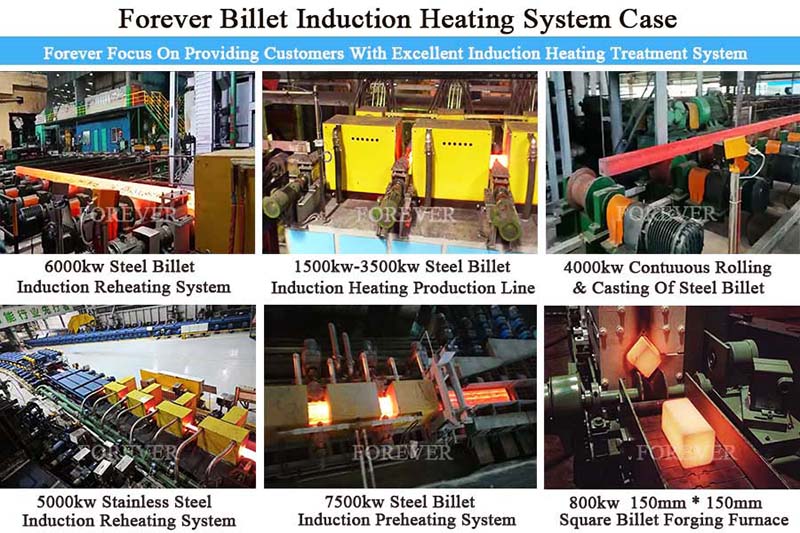

As an experienced manufacturer with abundant overseas delivery records, Forever Electromechanical provides one-stop service including technical proposal design, factory testing, container shipment, on-site remote commissioning and long-term spare parts supply. It can customize single furnace, twin parallel furnace and multi-station heating systems according to customers’ production capacity requirements. The equipment has been successfully commissioned in steel ball production, automotive component forging and seamless pipe heat treatment projects worldwide.

Outlook

With rising global energy cost and stricter carbon emission requirements, energy-saving induction heating technology will gradually replace traditional high-consumption furnaces. Forever Electromechanical will keep optimizing IGBT heating systems, helping more metal processing factories realize green transformation. The company welcomes inquiries from global buyers for project quotation, technical drawing discussion and factory inspection.
