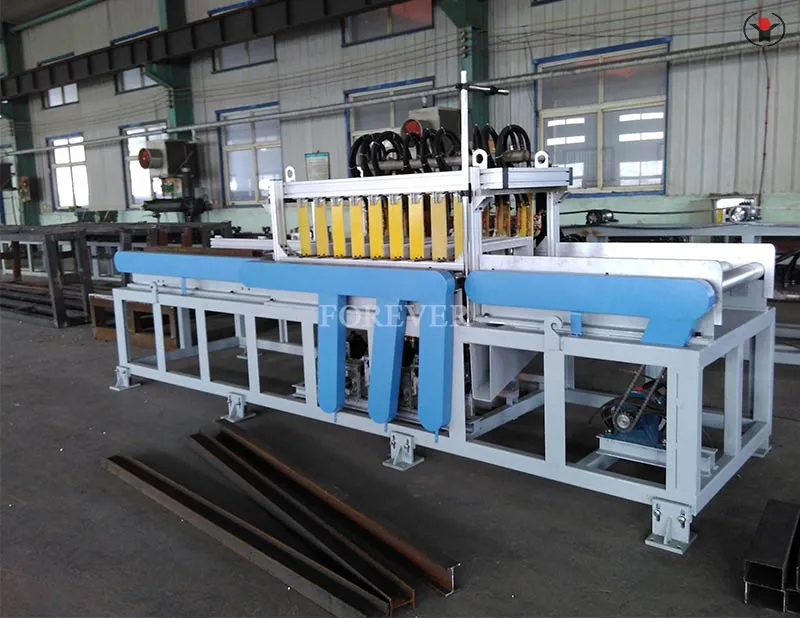

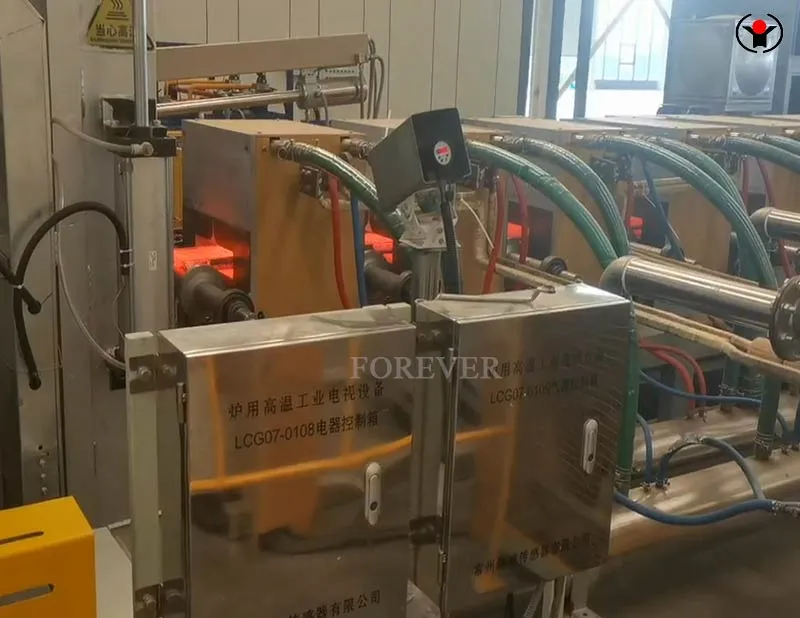

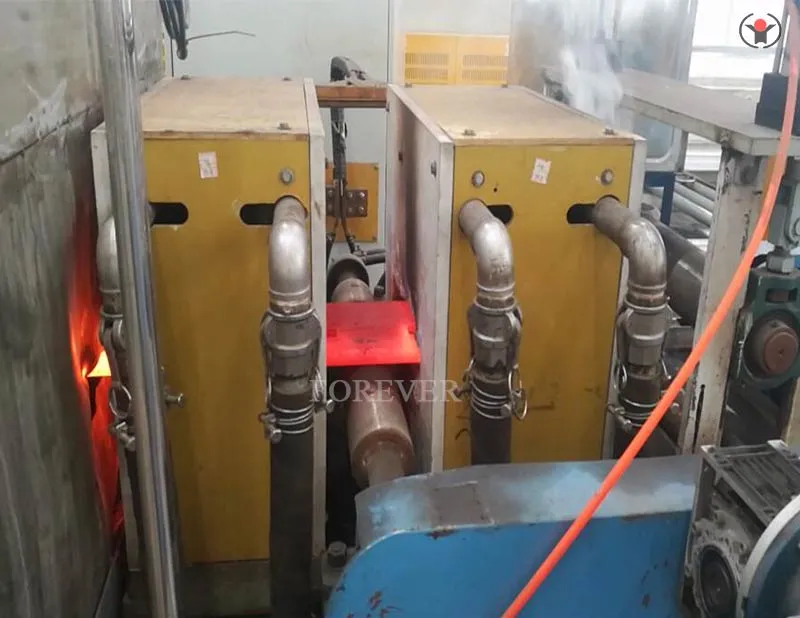

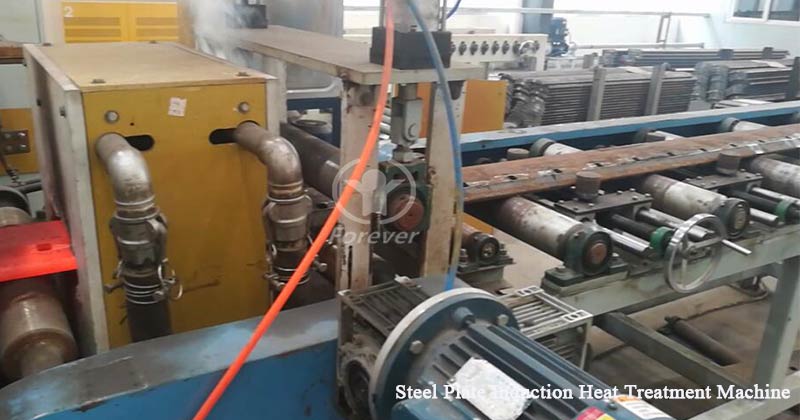

Steel Plate Induction Heat Treatment Line

Uniform heating, strong strength, plasticity, and toughness after processing, no need for straightening

Board thickness: 20mm~60mm

Board width: 80mm~500mm

Production efficiency: 0.6t/h-2.5t/h

Ton of electricity consumption: 380-400 kWh per ton of electricity consumption

Remarks: Non standard customized equipment, designed according to customer requirements

Steel Plate Induction Heat Treatment Line

Characteristics of steel plate heat treatment production line:

The feeding system, heating system, and quenching system are integrated, with strong completeness and reasonable combination, effectively saving customers time in selecting equipment; ·High precision design ensures material wear, and the roller conveyor between the furnace bodies is made of 304 non-magnetic stainless steel, which is smooth and wear-resistant, and will not damage the workpiece during use.

Composition and characteristics of steel plate heat treatment line

Roller electrical isolation

We have designed a sturdy and durable roller electrical isolation system to address the issue of workpiece and roller ignition damage caused by equipment, completely solving the problem of workpiece ignition damage.

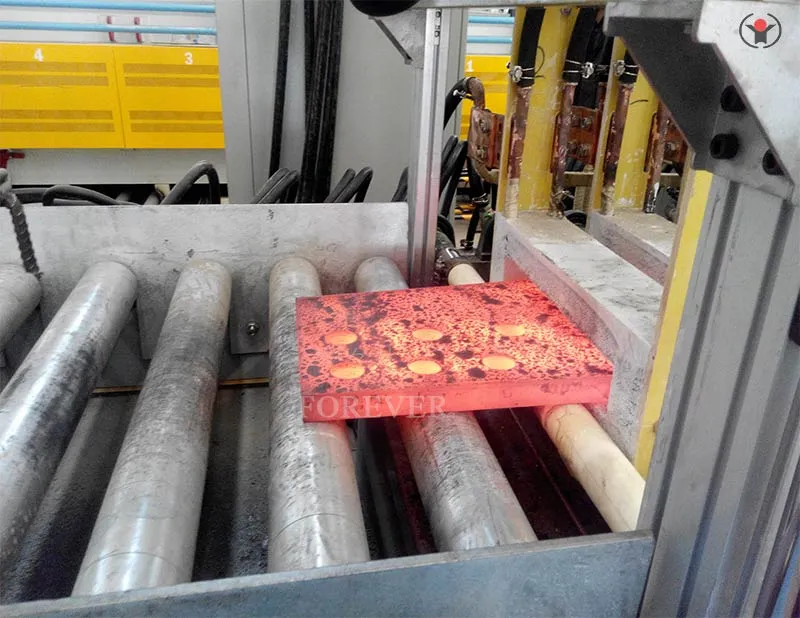

Feeding system

Roller conveyor+power double pinch roller, each axis is driven by an independent motor reducer and controlled by an independent frequency converter; Flexible design of differential output, segmented control of operating speed.

Industrial computer system

Real time display of current working parameters and status, sheet parameter memory, storage, printing, fault alarm, automatic power reduction and constant temperature maintenance, and many other powerful functions.
