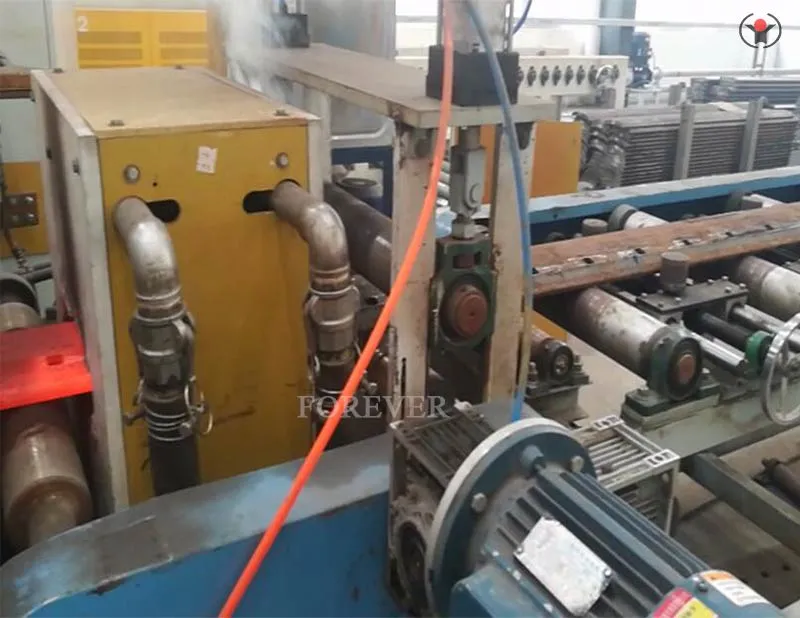

Steel Plate Induction Annealing Machine

Product use: Suitable for annealing treatment of metal workpieces such as steel plates, sheets, and materials with a thickness greater than 5mm

Forever Electromechanical specializes in the production of sheet annealing furnaces. With new technologies and newly designed sheet induction annealing furnaces, new technologies, and new investments, we can customize induction heating equipment, induction heat treatment equipment, and many other induction heating devices according to your process needs to meet your different needs.

Equipment name: Plate Induction Annealing Furnace

Equipment brand Forever

Non standard customization: Yes

Heating steel materials: SPCC, IF, DC06, 201, 304 and other materials

Size range: Workpieces with a thickness of 5mm or more

Heating temperature: The specific heating temperature is designed according to the requirements of the workpiece heat treatment process. Production efficiency requirements: Calculated based on the length of the user's workpiece and the thickness of the plate. Equipment power range: 100KW-2500KW (designed according to the workpiece)

The plate induction annealing furnace adopts intelligent series resonant intermediate frequency power supply control and features: Power function: ordinary 380V or 660V three-phase or six phase 50Hz AC power is rectified into DC power through a rectifier device, and then converted into AC power of the required frequency through an inverter system. Through the principle of electromagnetic eddy current, our workpiece is induced and heated by itself.

1. Parallel resonance design, phase-shifting power adjustment, fully open rectification, high power factor, small harmonic components, easy operation.

2. The power supply and sensor always maintain reliable matching, with full power output, low turn off losses, and small reactive power components, saving 15-30% electricity compared to traditional inverter power supplies.

3. Variable frequency and load adaptive, automatic matching for induction furnace replacement, no need for manual adjustment.

4. T2 copper bars are used inside the cabinet, which have been sandblasted and passivated; Low leakage inductance, anti-oxidation, effectively reducing line losses.

Full touch screen control, pure text-based tuning, with complete process records and strict level permissions. The main parameters can be restored to factory settings with one click. 6. The plate annealing furnace has self-protection functions (overcurrent, overvoltage, water pressure, phase loss, undervoltage, overload), and has self diagnostic function in case of situations

1. Technical after-sales service with professional engineers for overseas equipment.

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.
