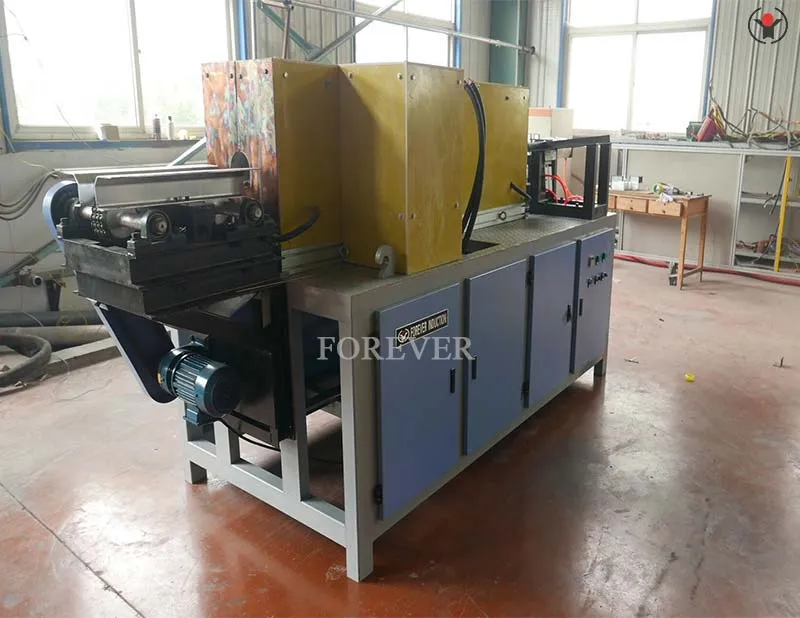

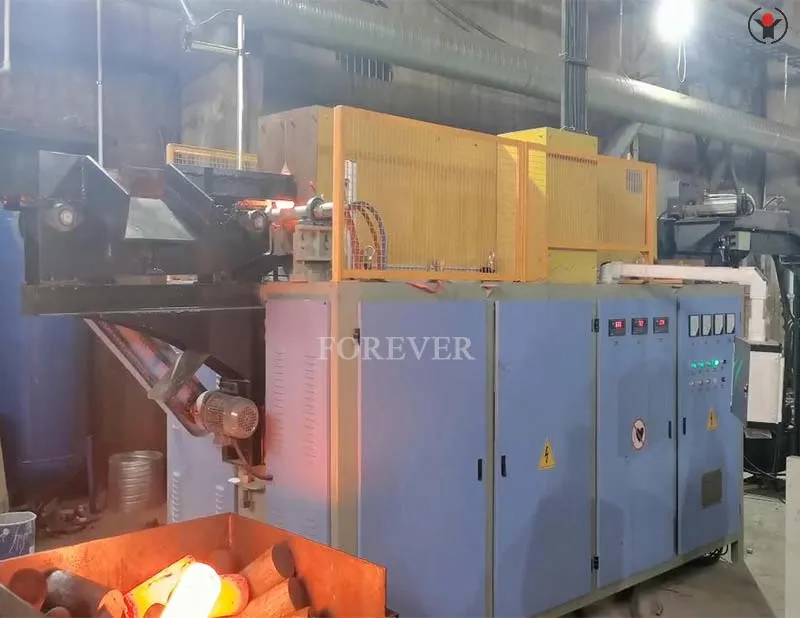

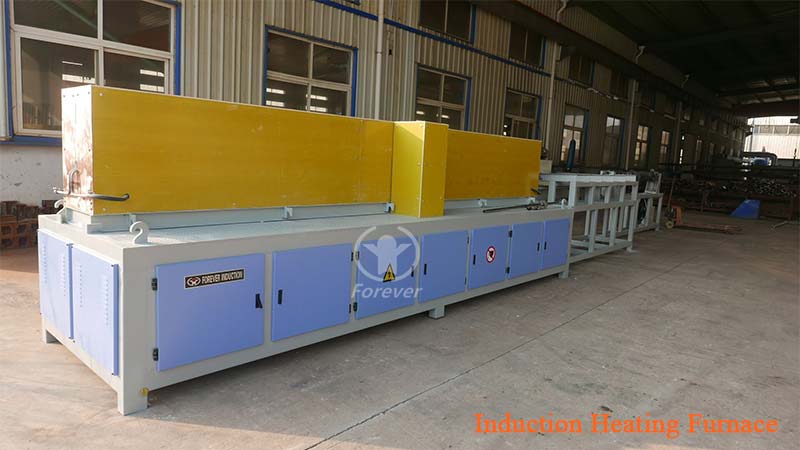

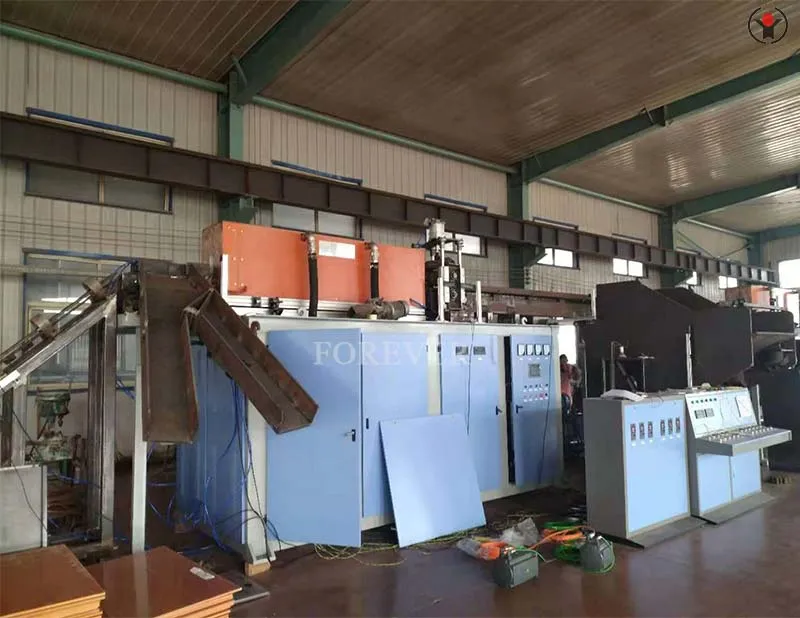

Intermediate frequency forging induction heating furnace

Suitable for forging heating of metal workpieces such as steel bars, steel pipes, and plates

Equipment power: 500KW-1250KW

Production capacity: 500Hz-4000H

Feeding system: fully automatic washboard feeding machine

Energy Conversion: Heating one ton of steel to 1150C, consuming 330-360 kWh of electricity

Forever is a professional induction heating equipment manufacturer that customizes suitable forging heating equipment, induction heat transfer equipment, quenching heat treatment equipment, and quenching and tempering heat treatment production lines according to your process needs. We can also transform old forging heating equipment for you. Ensure the performance of its equipment and improve its production efficiency

1. Intelligent series resonant intermediate frequency power supply control, fully open rectification, high power factor, and small harmonic components.

2. Fast heating speed, high production efficiency, and minimal oxidation and decarbonization.

3. The workpiece does not require preheating during the heating process and can be turned on or off at any time. It can be set to fully manual, fully automatic, or semi-automatic modes, which has advantages in production scheduling.

4. The inlet and outlet ends of the medium frequency heating forging furnace are sealed with 4mm purple copper plate, which greatly reduces magnetic leakage and extends the service life.

5. Equipped with a dual color American Leitai thermometer at the export end, it displays the current temperature of the workpiece in real time and heats it more evenly.

6. PLC fully automatic intelligent control of human-machine interface, with one click restoration function.

7. Adaptive power, high production efficiency, and cost savings.

1. Technical after-sales service with professional engineers for overseas equipment.

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.
