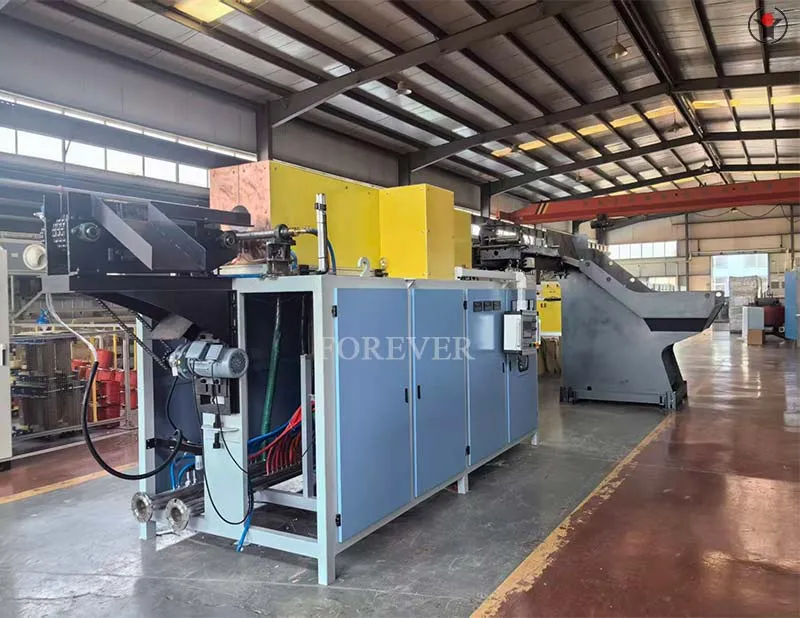

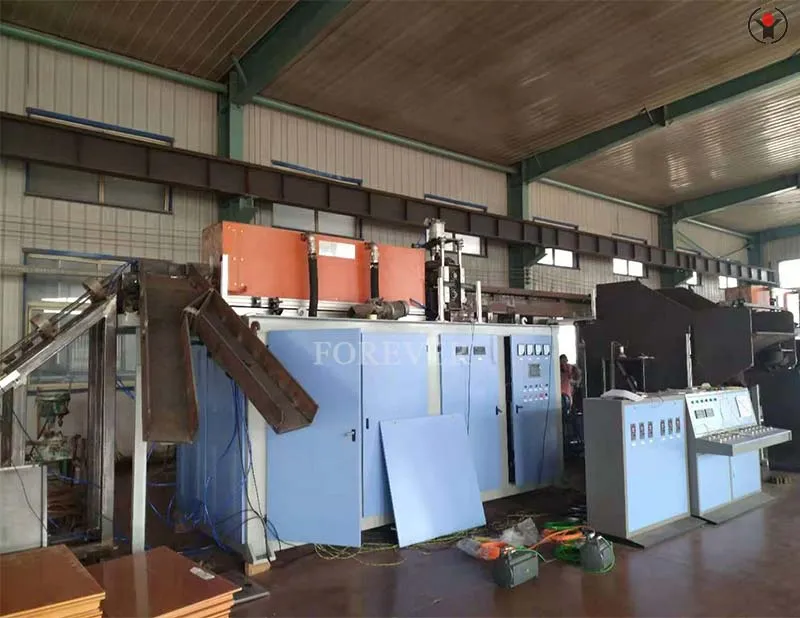

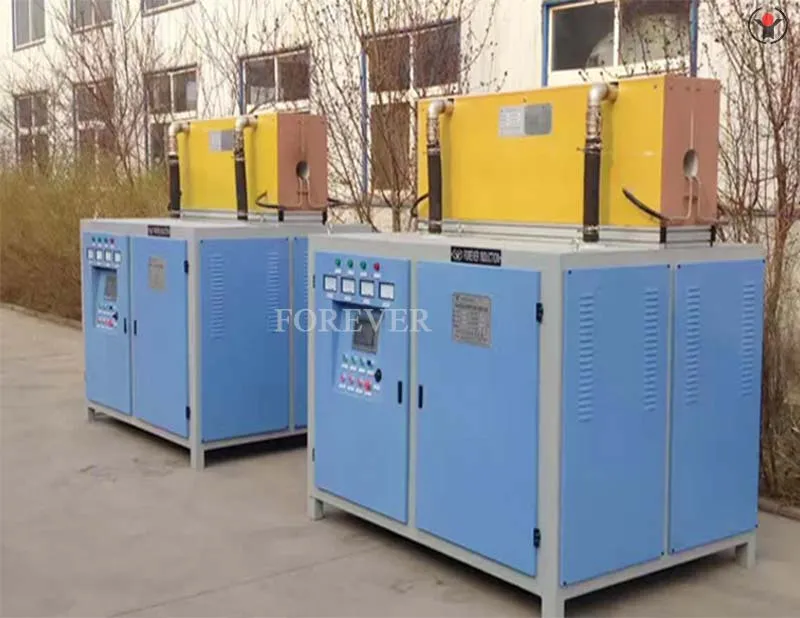

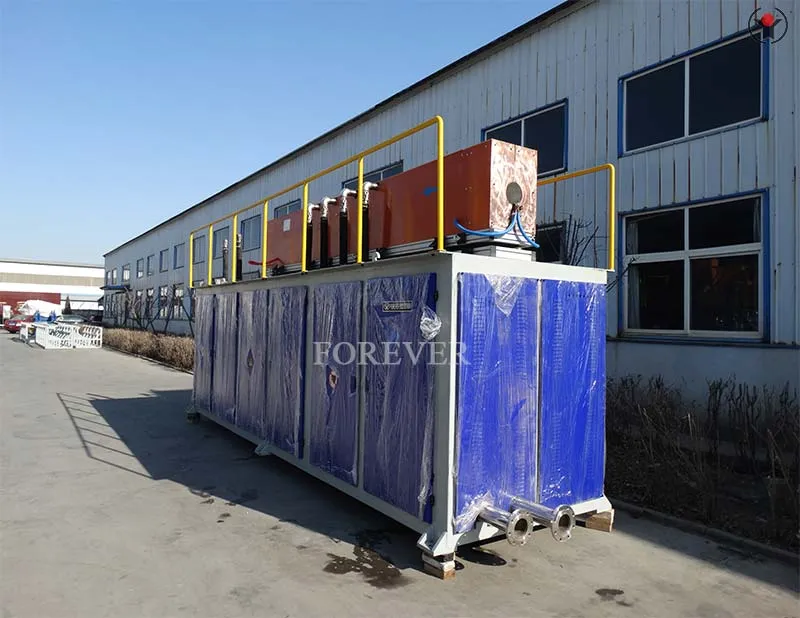

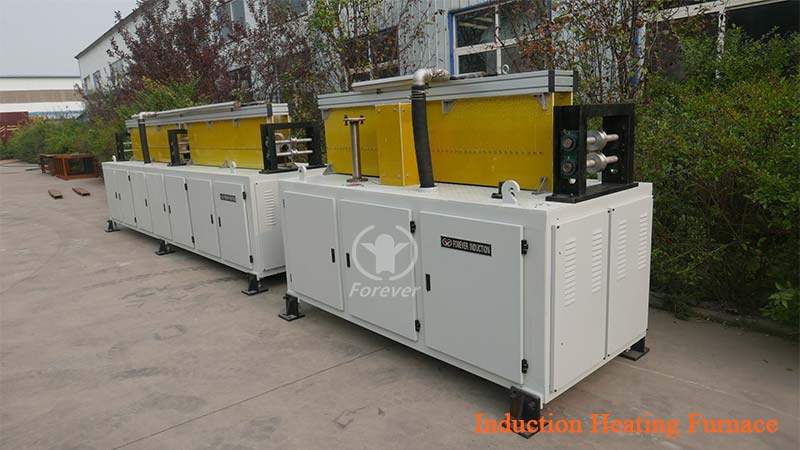

Aluminum bar induction heating furnace

Product Usage: Suitable for heating metal workpieces such as aluminum bars and profiles

Forever is a specialized company that integrates research and development, production, and sales of aluminum rod heating furnaces. It is one of the earliest domestic manufacturers specializing in the production of aluminum rod induction heating equipment. Equipment PLC fully automatic intelligent control, aluminum rod induction heating furnace closed-loop temperature control, uniform heating, no overburning, no deformation, no cracks, quality assurance, providing users with free technical solutions and quotations for aluminum rod rapid induction heating furnace.

The aluminum bar induction heating furnace adopts intelligent series resonant intermediate frequency power supply control characteristics:

1. Parallel resonance design, phase-shifting power adjustment, fully open rectification, high power factor, small harmonic components, easy operation.

2. The power supply and sensor always maintain reliable matching, with full power output, low turn off losses, and small reactive power components, saving 15-30% electricity compared to traditional inverter power supplies.

3. Variable frequency load adaptive, automatic matching of induction heating equipment replacement, no need for manual adjustment.

4. T2 copper bars are used inside the cabinet, which have been sandblasted and passivated; Low leakage inductance, anti-oxidation, effectively reducing line losses.

5. Full touch screen control, pure digital tuning, with complete process records and strict level permissions. The main parameters can be restored to factory settings with just one click. 6. The aluminum rod heating production line has self-protection functions (overcurrent, overvoltage, water pressure, phase loss, undervoltage, overload), and the equipment has self diagnostic capabilities in case of situations.

1. The heating temperature is high, and it is non-contact heating, which makes the heating of the workpiece more uniform.

2. Carefully designed sensors with high heating efficiency and fast heating speed; The temperature is easy to control.

3. According to customer needs, the workpiece can be heated as a whole or locally;

4. The entire set of intermediate frequency heat transfer equipment has high temperature control accuracy and fully automatic intelligent control;

5. Good working environment, no pollution, low energy consumption;

6. Less work space and high production efficiency;

7. Capable of heating workpieces with complex shapes;

8. The workpiece is easy to heat evenly and the product quality is good;

1. Technical after-sales service with professional engineers for overseas equipment.

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.
