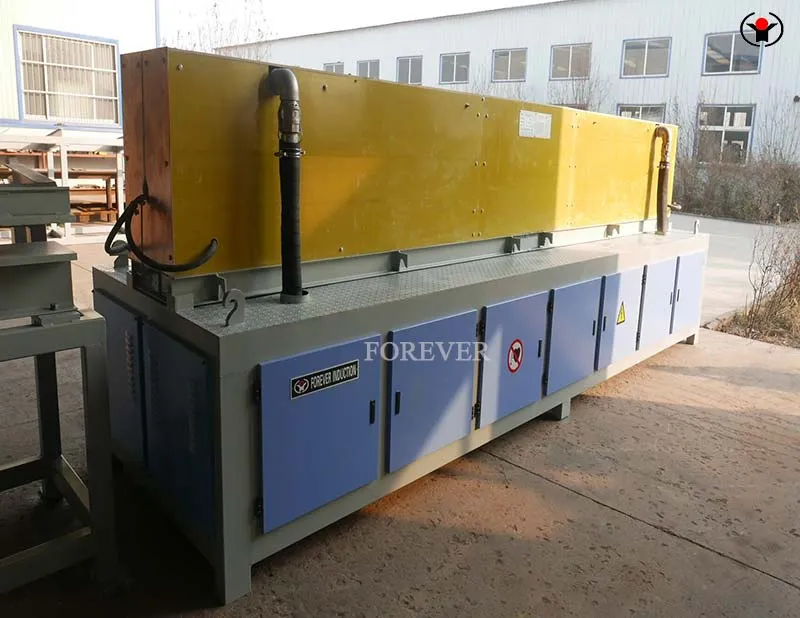

Drill Rod Corrosion-Resistant Heating Equipment

Suitable for corrosion-resistant heating of metal components such as drill pipes, automotive stabilizer bars, drill pipes, steel pipes, etc.

 The drill rod corrosion-resistant induction heating equipment specializes in heating metal components for subsequent corrosion protection to meet required specifications. Corrosion-treated components exhibit enhanced corrosion resistance, wear resistance, and broad application scope. Widely used in construction materials, architecture, road construction, hydraulics, machinery, marine engineering, and other fields, it has become a primary application in industrial sectors.

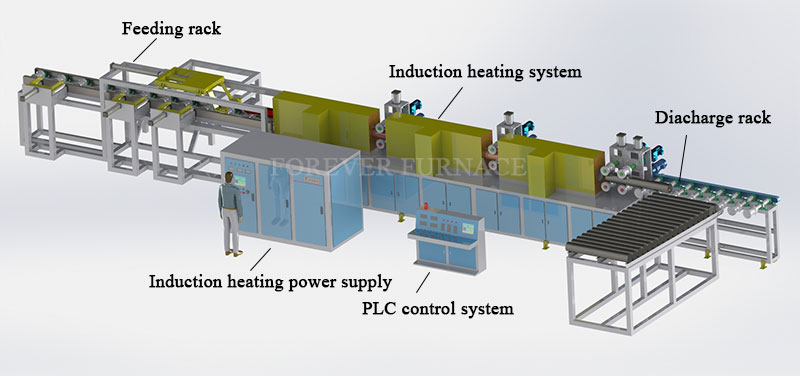

- Utilizes electromagnetic induction heating with resonant air-cooled induction heating power supply control, featuring full-touchscreen operation, pure digital adjustment, and comprehensive process records.

- Employs PLC intelligent control program combining human-machine interface for "one-touch start" operation requiring minimal manual supervision.

- Constructed with high-efficiency fireproof materials for superior heat retention, high-temperature resistance, and wear resistance.

- Rapid temperature increase, responsive process requirements, energy-efficient operation, and simple controls.

- Equipped with an American Raytek temperature monitor at the furnace inlet for real-time temperature display and precise control.

- Corrosion-treated components demonstrate enhanced corrosion resistance and consistent hardness performance.

Drill Rod Corrosion-Resistant Induction Heating Equipment Inductor Technology

1.Inductor copper tubes use T2 oxygen-free copper winding with wall thickness ≥3.0mm, featuring high-strength, high-temperature-resistant insulation materials for extended service life.

2. 5mm purple copper plates encapsulate in/out material ends to minimize magnetic leakage and prolong equipment lifespan.

3. High-strength aluminum alloy inductor base reduces magnetic leakage and heat interference. Water-cooled rollers with frequency-adjustable motors are installed between inductor sections.

4. 304 non-magnetic stainless steel water-cooled roller paths and independent motor-reducer drives with frequency inverters enable flexible speed difference control and segmented speed regulation.

1. Technical after-sales service with professional engineers for overseas equipment.

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.
