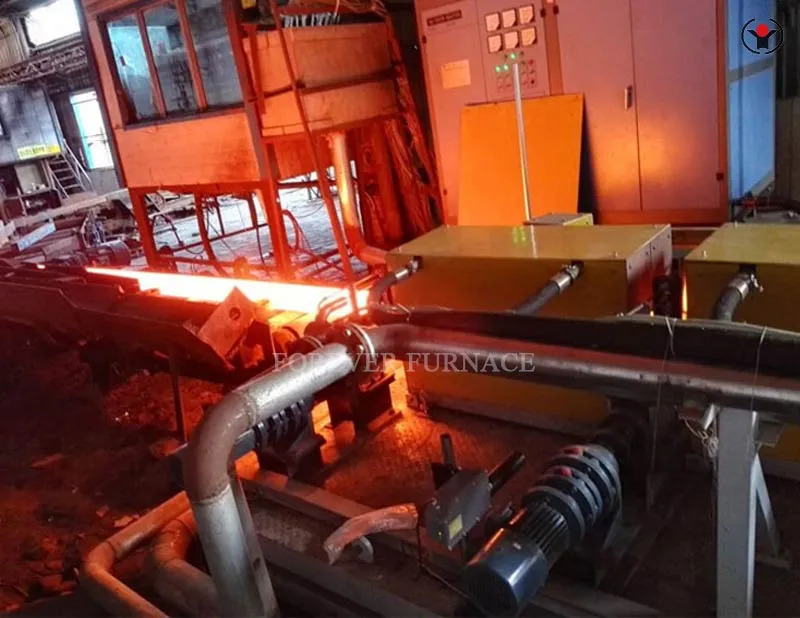

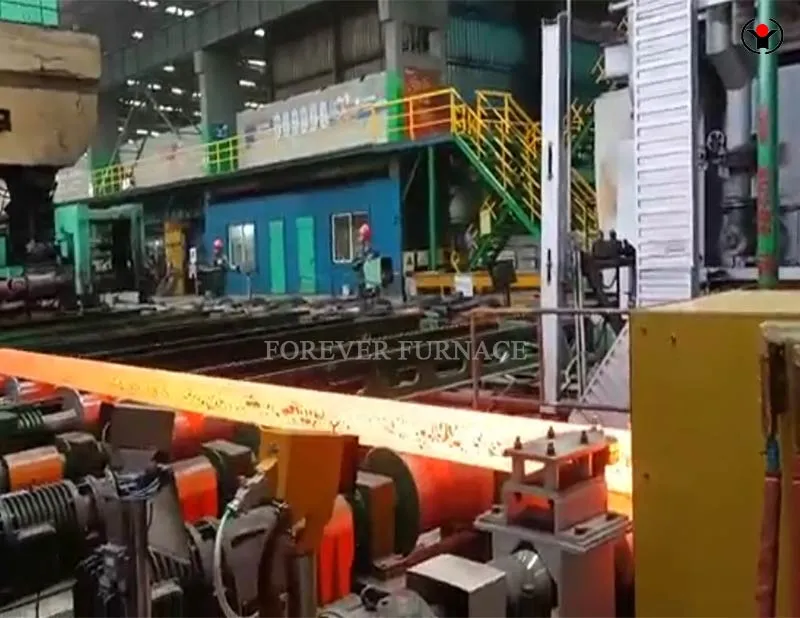

Continuous Casting Billet Induction Reheating Furnace

Product Usage:

Suitable for heating and reheating metal workpieces such as continuous casting billets, cold damaged billets, and stainless steel billets

Equipment power:1000KW-12000KW

Device Frequency : 500HZ-1200Hz

Production capacity: 40-300t/h

Workpiece size: 120mm-160mm square defect, length 3000mm-12000mm

Applicable workpieces: Steel damage, square damage, square steel, etc

Energy Conversion: Depending on the temperature of the damaged surface of the steel, it consumes tens to tens of degrees of electricity per ton.

Forever specializes in providing continuous casting billet induction reheating furnaces, PLC fully automatic intelligent control, closed-loop temperature control for continuous casting billet reheating furnaces, uniform heating, no overburning, no deformation, no cracks, quality assurance, and free technical solutions and quotations for steel billet induction heating furnaces and continuous casting steel reheating equipment for users.

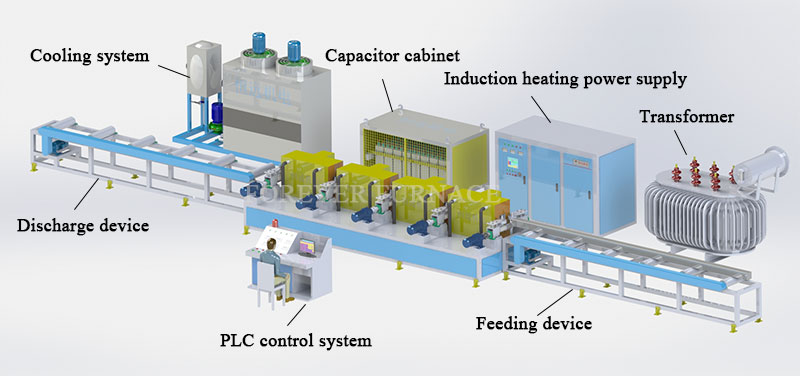

·Provide remote control consoles with touch screens or industrial computer systems according to user needs. Specially customized human-machine interface, highly user-friendly operation instructions, allowing one person to operate the entire equipment, saving labor and costs. All digital, high depth adjustable parameters, as long as the steel type, size, and equipment of the workpiece are input, the relevant parameters will be automatically called up without manual recording, reference, or input. Has high-precision historical curve function. It can be backed up via USB or network, and data can be saved for a long time. Strict level management system, equipment equipped with a one click restoration system. If there is a problem during adjustment or if you want to restore the device to its original state, simply press a button to restore the original data.

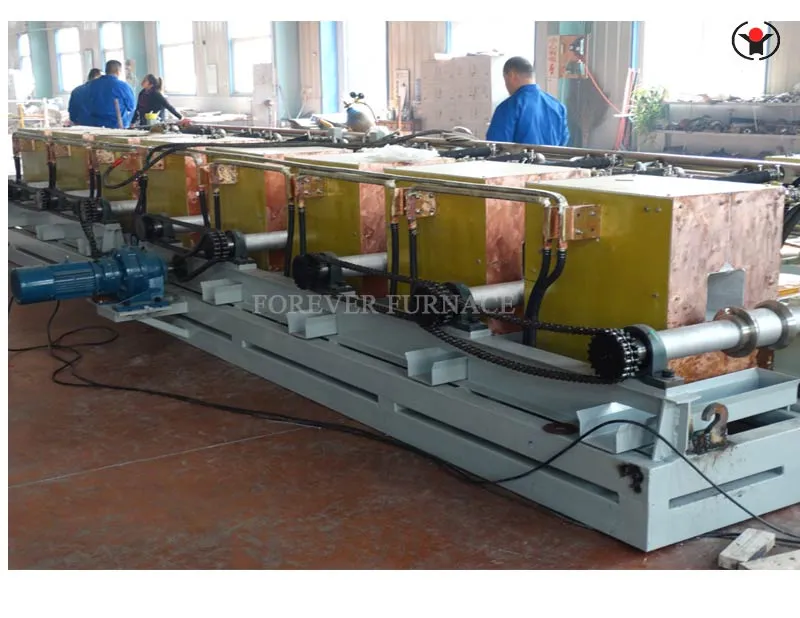

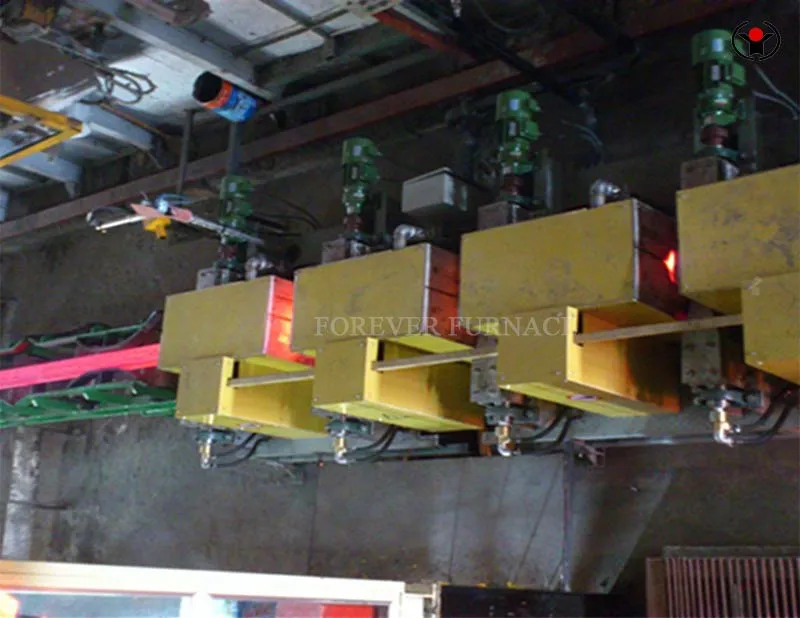

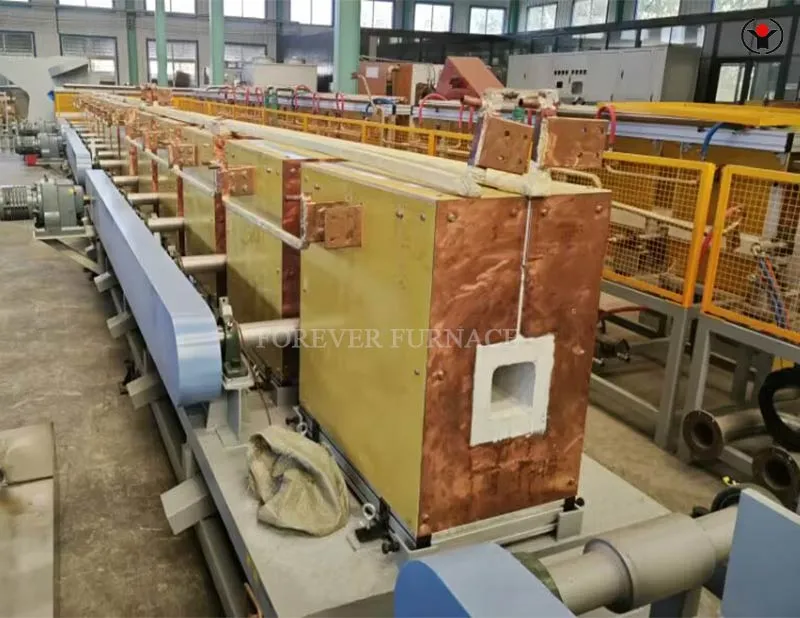

The furnace body adopts a contour design, and the copper tube is wrapped with T2 hydrogen free copper. The wall thickness of the copper tube is greater than or equal to 2.5mm. The insulation material of the furnace body is made of knotted material imported from the United States, which has high strength, high temperature resistance, and longer service life. A water-cooled roller is installed between every two sections of the furnace body, and each roller is equipped with a variable frequency speed control motor. The two ends of the furnace body are sealed with a whole piece of copper plate,. The furnace chassis frame is made of non-magnetic stainless steel or aluminum alloy to reduce the impact of magnetic leakage and heat generation on other components. Install a water pressure gauge and high water temperature protection for each section of the furnace body.

1. Technical after-sales service with professional engineers for overseas equipment

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.
