Full automatic casting grinding ball making machine,grinding ball forged & rolling production line manufactuer

Full automatic grinding ball forged & rolling making machine

1.20mm-φ120mm grinding steel ball forged & rolling by skew rolling mill line, also known as abrasive wear-resistant media, is a consumable, the main purpose is to grind the material so that the material grinding finer, to achieve the use of standards, mainly used in mines, power plants, cement plants, steel mills, silica sand plant, coal chemical industry and other fields.

2.Specification: φ20mm-φ120mm

3.Round steel material: 65Mn、60Mn、50Mn、B2、B3、40Cr、45 etc.

4.Round steel length: 3000-6000 mm

5.Heating method: Induction heating furnace

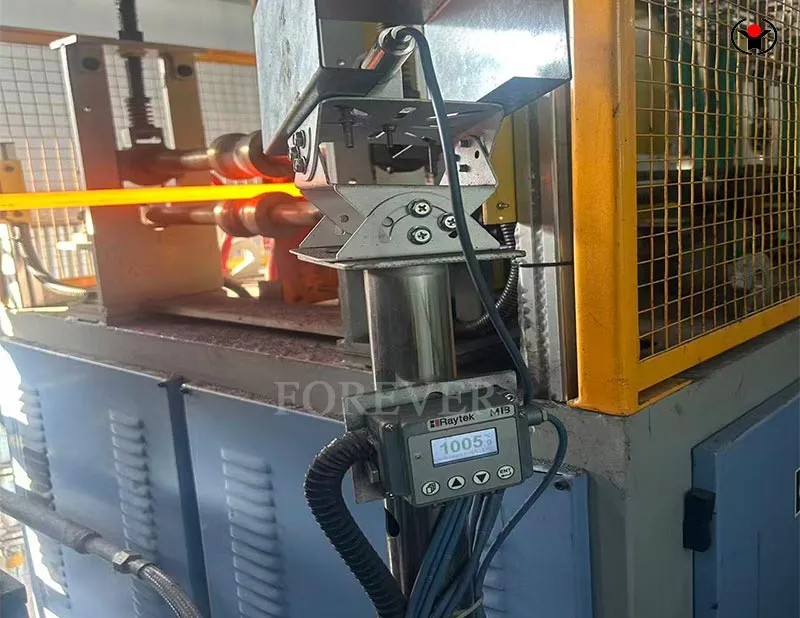

6.Heating temperature: 950～1050℃

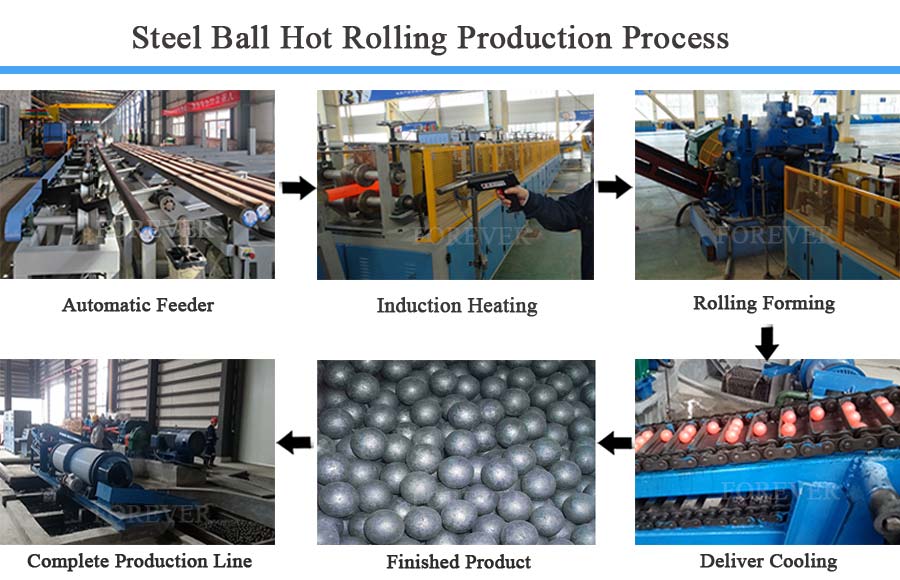

Full automatic grinding ball forged

Characteristics

The rolling steel ball production line has the following characteristics through multiple innovative designs:

1. Automatic feeding control, improved automation level, and reduced labor intensity for workers;

2. Adopting induction heating, environmentally friendly and pollution-free, uniform temperature, and high production efficiency;

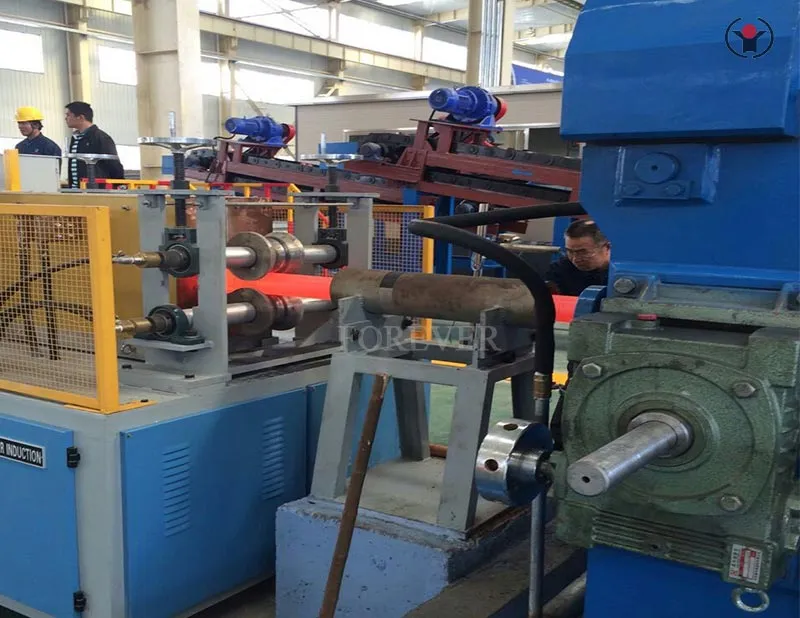

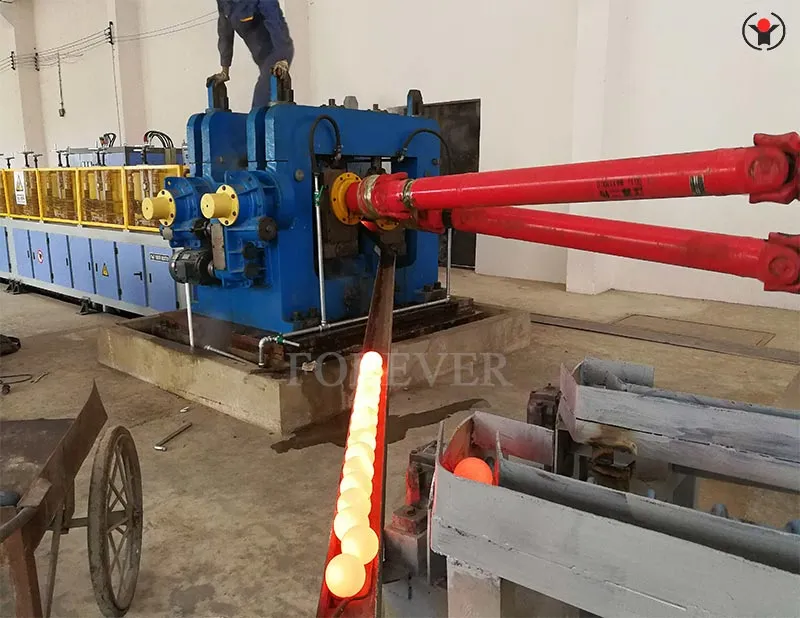

3. The ball rolling machine adopts a cast steel semi closed frame, with good rigidity and no deformation of the base;

4. The rolling mill is equipped with an electric side pressure adjustment device, which is easy to adjust and operate.

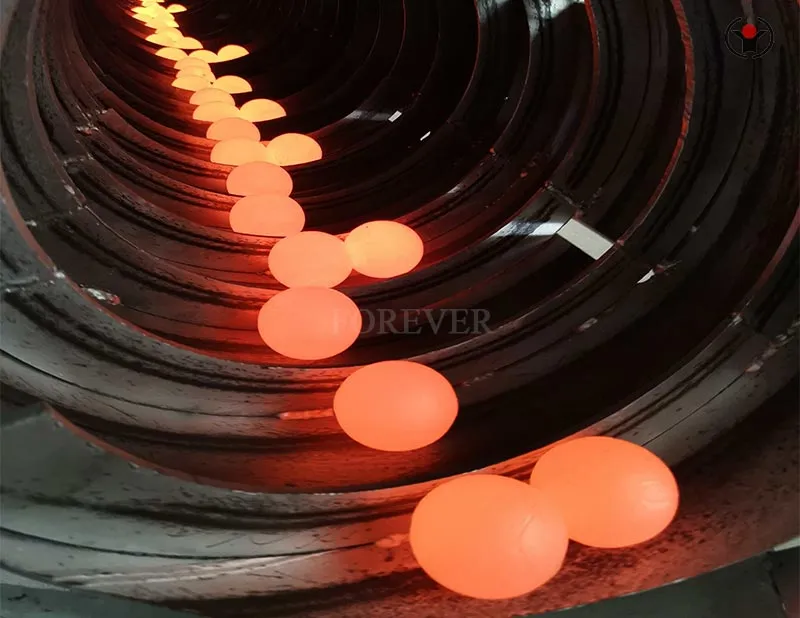

5. Automatic control of quenching and tempering temperature for steel ball heat treatment to ensure quenching and tempering quality;

6. The produced steel balls have exquisite appearance, high hardness, and low damage rate.

The steel balls produced by our company's steel ball rolling equipment have precise dimensions, round geometric shapes, high hardness, and good mechanical properties, as well as excellent qualities such as wear resistance, no deformation, and no cracking. Its characteristics are manifested as:

a、 Overall high hardness: surface hardness can reach 57HRC-67HRC, volume hardness can reach 56HRC-64HRC, and the hardness gradient distribution is uniform;

b、 High impact toughness: impact toughness greater than 12J/cm;

c、 Low damage rate: The anti stripping and anti crushing performance is more than 10 times that of general cast steel balls, with over 20000 impacts from falling balls. The actual damage rate does not exceed 1%, which is close to no breakage

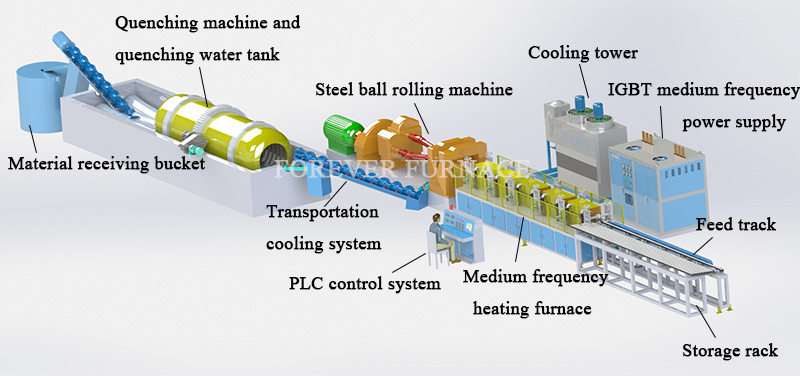

Full automatic grinding ball forged

Technical parameter of grinding ball hot rolling & forged production line:

Model	unit	ZQ20	ZQ30	ZQ40	ZQ50	ZQ60	ZQ80	ZQ100	ZQ125
Ball diameter	mm	15-20	20-30	30-40	35-50	40-60	60-80	80-100	90-125
Roll diameter	mm	160	220	250	280	325	450	520	630
Roller angler range	°	0-5	0-6	0-6	0-8	0-6	0-8	0-7	0-7
Productivty	pcs/min	125	100	78	75	72	60	50	40
Moter power	kw	22	37	90	132	185	400	630	800
