Steel bar induction heat treatment furnace

Used for induction heat treatment of steel bar with a diameter of 8-120mm

Quenching power/frequency:160-1000KW/0.5-4KHz

Tempering power/frequency:100-600KW/0.5-2.5KHz

Production Capacity:0.5-3.5t/h

Scope of application:20mm-120mm

Main application:Suitable for induction heat treatment of steel bars, low-carbon alloy steel, wind turbine bolts, lead screws, and hydraulic cylinder rods.

Energy Conversion:Adopting the method of hot quenching followed by high-temperature tempering, with a power consumption of 420-480 kWh per ton

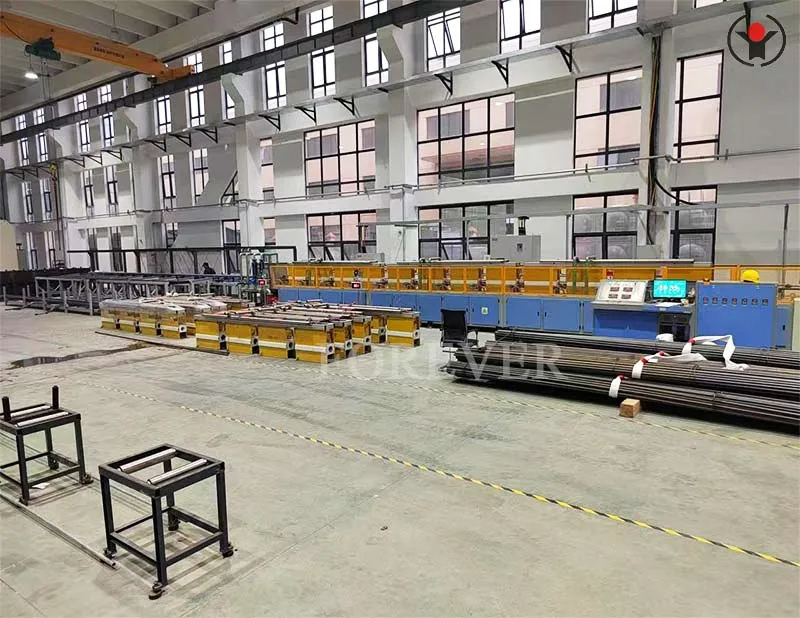

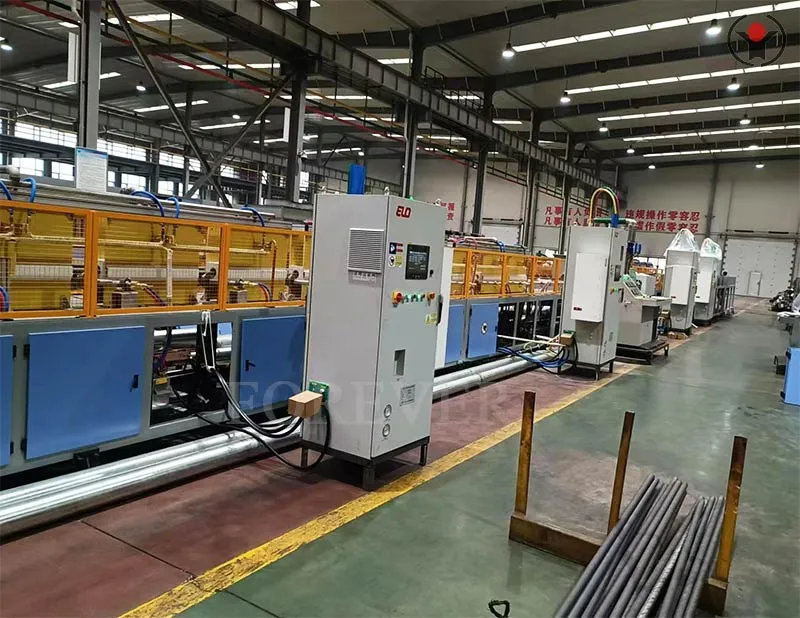

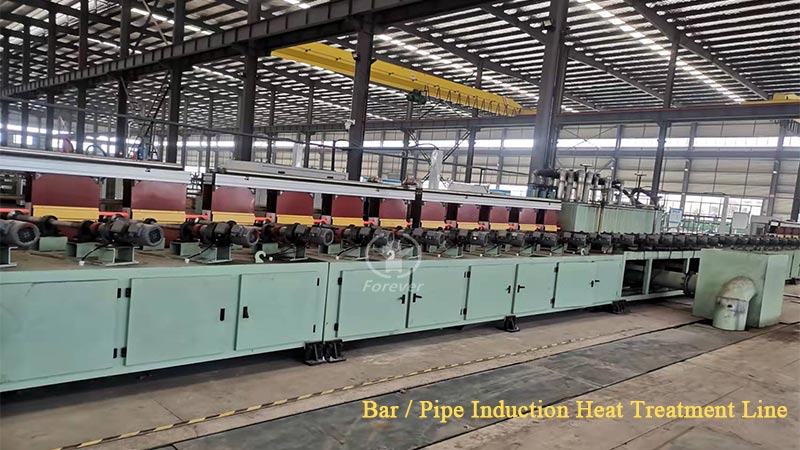

Round steel quenching and tempering line is an equipment used in the metal heat treatment industry for quenching and tempering heat treatment of workpieces such as bars, bar materials, steel bars, round steel, and round bars. It is developed and produced by Forever Electromechanical Manufacturer based on multiple successful cases. Can be used in the quenching and tempering production workshop for round steel with a diameter of 10-120mm. Round steel processed by the round steel quenching and tempering production line has high hardness and toughness, and has a wider range of applications!

1. It has automatic loading and unloading functions.

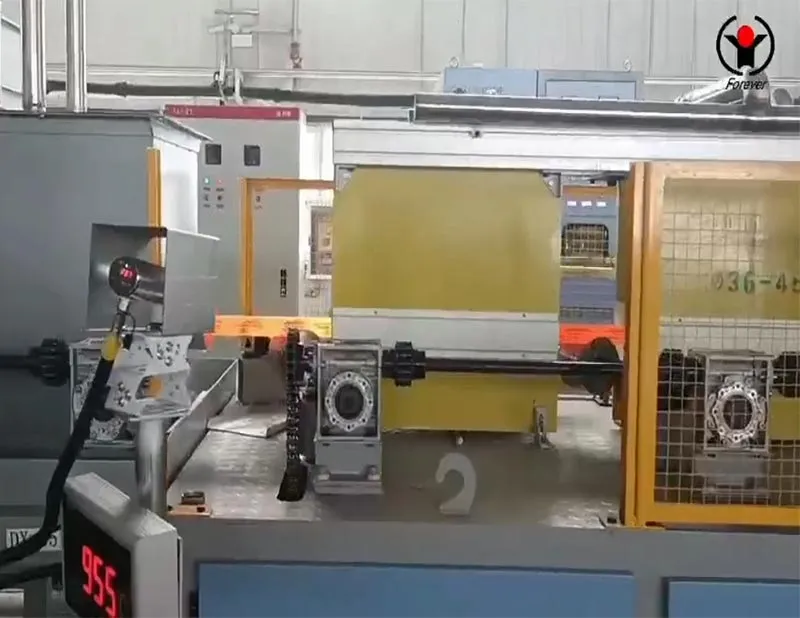

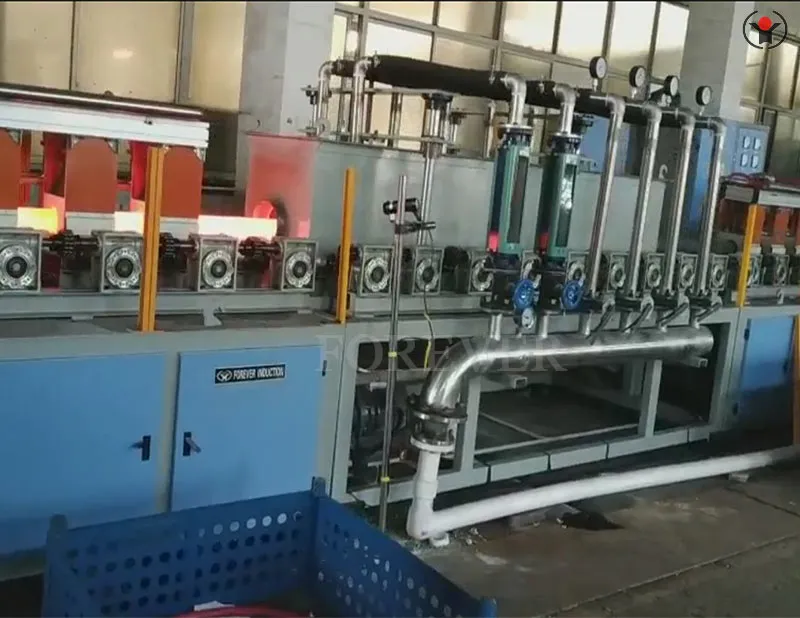

2. Heating has multi-level heating function to ensure the uniformity of heating temperature. At the same time, temperature measuring instruments are installed at the furnace outlet to measure the heating temperature of the bar material in real time before cooling and after tempering of the workpiece.

3. The quenching power, tempering power, quenching temperature, tempering temperature, and workpiece feed rate are all automatically controlled by the system, which can provide temperature closed-loop control function.

4. Heating power, power supply, current, frequency, tempering power, tempering power supply voltage, current, frequency, heating feed rate, induction heat treatment, tempering temperature and other parameters are set and recorded by the system, and the processing parameters can be traced.

5. After being processed by the steel bar induction heat treatment line, the round steel has no deformation, no cracks, and strong toughness, which can meet national standards.

6. The intermediate frequency power supply and heating furnace have water pressure protection, water flow protection, water temperature protection, air pressure protection, and photoelectric safety protection.

7. Alarm: Sound/light fault alarm, display and record alarm information on the control interface.

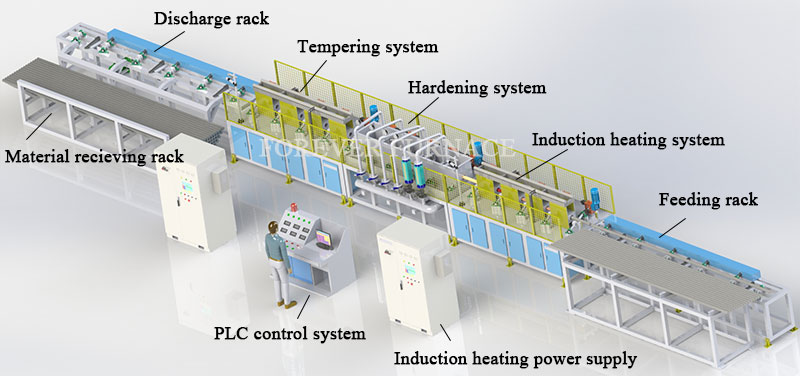

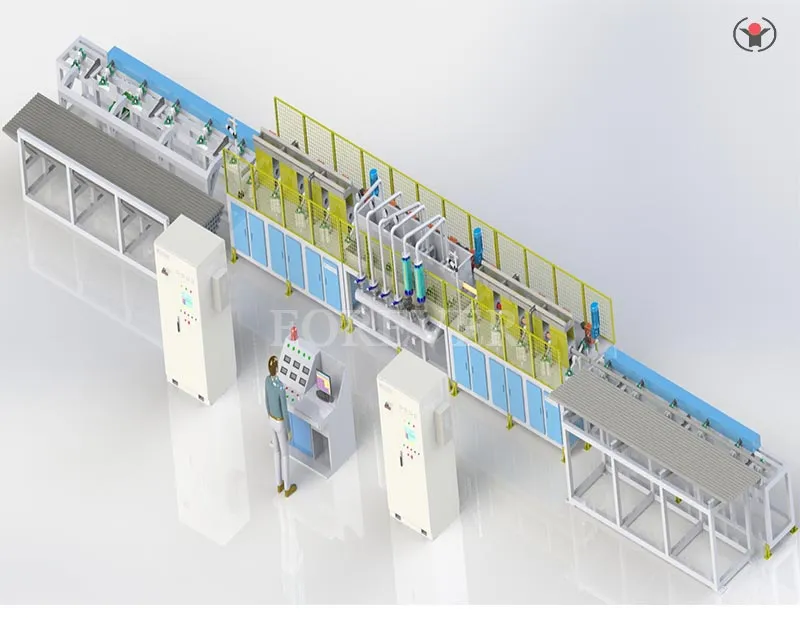

The round steel from 010 to 0120 can be induction heat treatment using online continuous heating. The complete production line only requires a crane to lift the steel bars onto the upper material rack, and the rest of the actions are automatically completed by the system controlled by PLC. The complete induction heating and heat treatment equipment production line uses Taiwan Huayan industrial control computer as the core control part, which stores, displays, automatically records and prints the mechanical operating parameters, quenching parameters, tempering parameters, temperature and other parameters of the entire system. The system runs automatically according to the set process parameters.

1. Technical after-sales service with professional engineers for overseas equipment.

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.
