Rod Pusher Induction Hardening And Tempering Production Line
Features:
Material: Carbon steel and alloy steel
Torsion Bar Diameter: 8mm to 50mm
Quenching Heating Temperature: 850°C
Hardened Layer Depth: 1.1~2.3mm
Production Efficiency Requirement: 140 sucker rods processed in 8 hours (customized based on user requirements) Control System: Closed-loop temperature control
The rod pusher induction hardening and tempering production line is a specialized induction heat treatment equipment developed by Forever, leveraging its many years of R&D and production experience. It is designed for heat treatment of rod pushers, torsion bars, torque rods, automotive stabilizer bars, and other components. Currently, Forever can produce custom torsion bar heat treatment furnaces for rod diameters ranging from 8 to 50mm. If you require rod pusher heat treatment, please visit our Forever Electromechanical Factory for inspection!

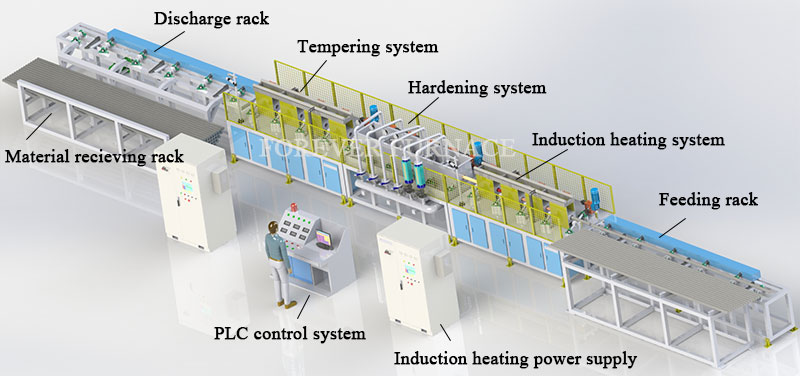

The line consists of an induction heating system, conveyor frame (loading/unloading frames), inductive heating power supply, cooling system, tempering system, and PLC control panel. Optional accessories include infrared thermometer, cooling tower, power transformer, and low-voltage distribution cabinet. The paired power supply is an energy-saving intelligent IGBT automatic induction heating power unit featuring full touchscreen operation, fully digitalized adjustment, comprehensive process records, and strict access control levels.

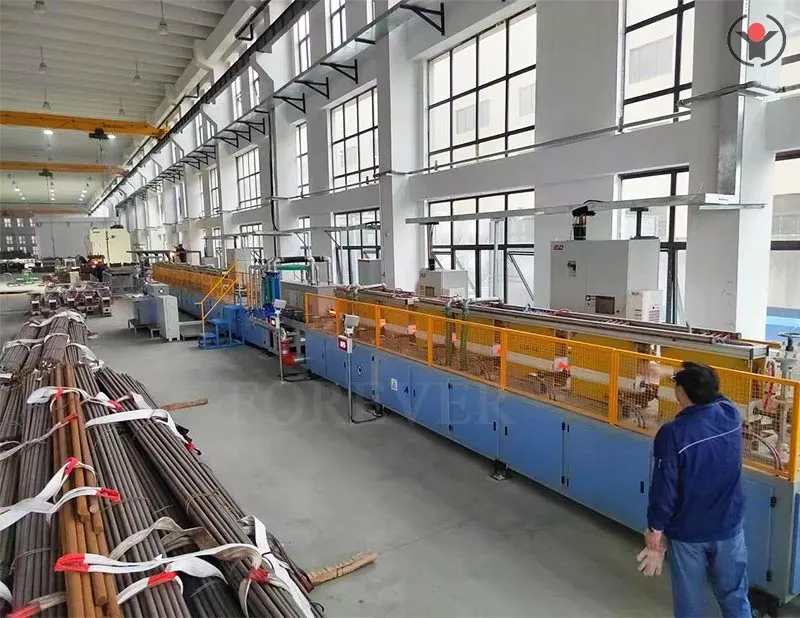

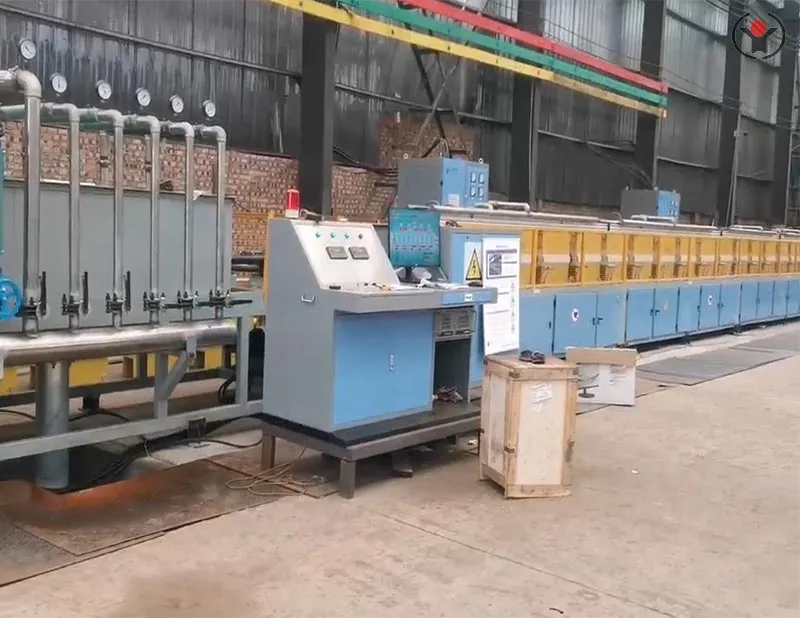

Company Case
After Sales Service Commitment :
1. Technical after-sales service with professional engineers for overseas equipment.
2. On site technical service guidance and training for operators to proficiently operate the entire equipment.
3. The warranty period is 12 months and online permanent service is provided.
Customer Visit
Transport
Our Company
