Long Bar Induction Heat Treatment Line

Suitable for heat treatment of metal workpieces such as steel bars, steel pipes, stainless steel, and special-shaped steel

1. Power supply system: air-cooled IGBT new energy-saving induction heating power supply

2. The hourly output is 0.5-3.5 tons, with a suitable range of 20-0180mm.

3. Conveyor roller conveyor: The axis of the roller conveyor forms an angle of 18-21 with the axis of the workpiece. The workpiece rotates while moving forward at a constant speed, making the heating more uniform. The roller conveyor between the furnace bodies adopts

304 non-magnetic stainless steel and water-cooled.

4. Roller grouping: The feeding group, sensor group, and discharge group are independently controlled, which is beneficial for continuous heating without creating gaps between workpieces.

5. Temperature closed-loop control: Heating and quenching are both controlled by the American Raytheon infrared thermometer closed-loop control system for precise temperature control.

6. Industrial control computer system: Real time display of the current working parameter status, workpiece parameter memory, storage, printing, fault display, alarm and other functions.

7. Energy conversion: using heating and quenching method, with a power consumption of 280-320 kWh per ton.

8. Human interface PLC fully automatic intelligent control system, "one click start" production worry free.

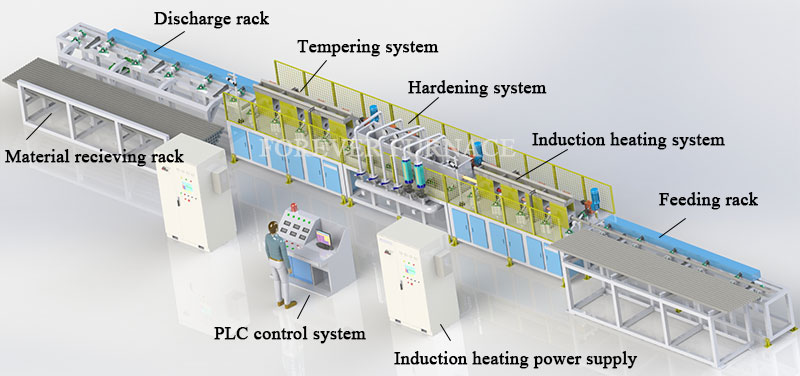

Crane crane, material storage platform, automatic feeding mechanism, feeding roller system, quenching induction heating system, infrared temperature measurement device, discharging roller, spray quenching system, quenching completion, discharging roller, cooling mechanism, and receiving rack

1. Adopting a new IGBT air-cooled induction heating power supply control, it has low power consumption, energy saving and environmental protection, and high production efficiency.

2. The intermediate frequency induction heat treatment equipment designed by Yuantuo adopts V-shaped rollers arranged diagonally in the transmission design to reduce radial jumping.

3. Fast heating speed, minimal surface oxidation, quenching process achieved during rotary heating, good straightness and no bending of steel after heat treatment.

4. After heat treatment, the workpiece has extremely high consistency in hardness, uniform microstructure, high toughness, and impact strength.

5. The PLC touch screen control system can record and save all process parameters of induction hardening of workpieces, making it convenient for you to view historical records in the future.

1. Technical after-sales service with professional engineers for overseas equipment.

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.
