Steel Billet Quenching & Tempering Line | Uniform Heating, High Efficiency

Meeting Growing Demand for Quality Steel Billet Heat Treatment

Steel billets are fundamental semi-finished materials for steel ball, steel bar and mechanical part manufacturing. The quality of quenching and tempering directly decides the final hardness, internal structure and service performance of downstream products. Traditional heat treatment for billets often suffers from uneven heating, big temperature difference between surface and core, serious oxidation and large deformation. Poor consistency of billets will cause high reject rate in subsequent rolling and forging processes. To solve these industry bottlenecks, Forever Electromechanical officially launches its new steel billet quenching & tempering line featured with uniform heating and high efficiency, bringing reliable induction heat treatment solutions for steel processing enterprises worldwide.

Advanced Induction Heating System Ensures Balanced Temperature Distribution

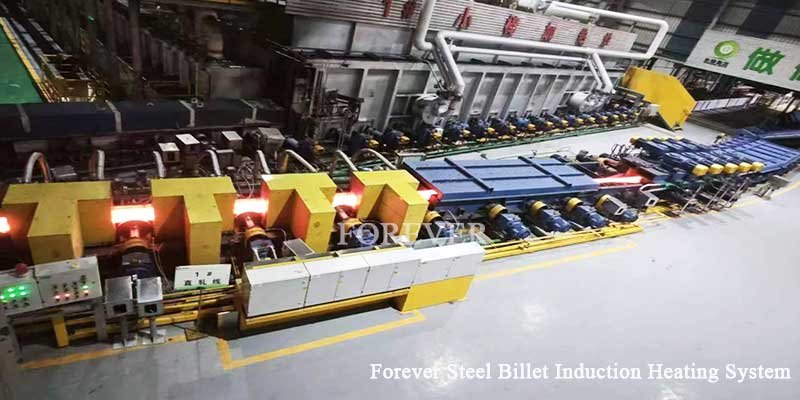

This steel billet quenching & tempering line adopts high-performance IGBT medium frequency induction heating power supply as the core heating unit. Different from conventional furnace heating, induction heating transfers energy to the billet rapidly. Specially designed induction coils and multi-point infrared temperature monitoring modules work together with the PLC closed-loop control system. The system tracks temperature changes in real time and automatically adjusts power, feeding speed and cooling flow. It effectively eliminates overheating or underheating issues, achieving highly uniform heating across the billet surface and inner layer. The whole quenching and tempering procedure runs continuously in one line, avoiding repeated handling and temperature loss caused by transfer between separate stations.

Stable Conveying Structure Supports Continuous High-Efficiency Production

The production line is equipped with optimized roller conveying and positioning mechanism. It keeps straight and stable feeding for steel billets of different specifications during heating and cooling stages, greatly reducing bending and twisting deformation. The line supports a wide range of billet sizes and multiple steel grades, including carbon steel, alloy steel used for grinding ball and steel bar production. It can operate 24 hours continuously with stable output and simple routine maintenance. Compared with traditional heating furnaces, the induction line cuts energy consumption significantly and generates much less oxide scale. Finished billets own uniform metallographic structure, balanced strength and toughness, which lays a solid foundation for follow-up skew rolling, forging and machining.

Intelligent Control and Customized Service for Global Buyers

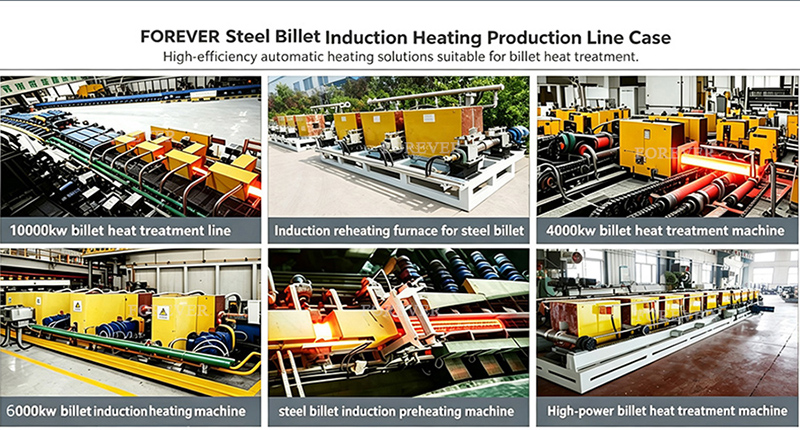

Forever Electromechanical builds an intelligent operating system for this steel billet induction heating machine. Multiple processing recipes can be saved inside the controller. Operators can switch technical parameters quickly when changing billet specifications, shortening trial time and improving production flexibility. The equipment supports remote fault diagnosis and data monitoring to help overseas users reduce downtime. Our engineering team provides customized layout design, on-site installation, commissioning and operator training services. Up to now, Forever’s induction heat treatment equipment has been delivered to mining, metallurgy and steel processing factories across the Middle East, Southeast Asia and Europe, earning positive feedback from clients.

Focus on Energy-Saving Induction Heat Treatment Innovation

With the global manufacturing industry pushing forward energy saving and low-carbon transformation, efficient induction heat treatment has become a preferred upgrading direction for metal processing plants. Forever Electromechanical will continue to invest in technology research, optimize coil design, power modules and automatic detection functions. The company will keep developing targeted heat treatment lines for steel billets, steel pipes, threaded rods and grinding balls. By combining stable equipment performance and thoughtful localized technical support, Forever Electromechanical helps steel billet producers upgrade production lines, improve product consistency and build stronger competitiveness in the global metal processing market.
