Pump rod quenching heat treatment furnace

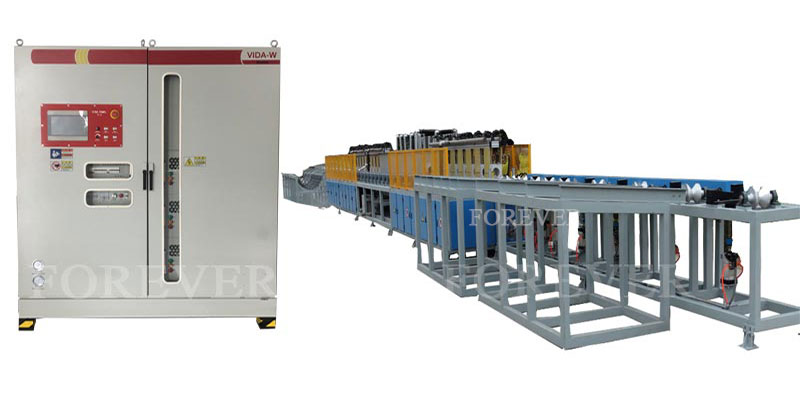

Part of the system that constitutes the Sucker rod induction quenching and tempering machine has been exposed

The storage platform and flipping machine of the quenching heat treatment furnace for sucker rods: The number of workpieces that can be stored on the storage platform can be determined according to the specific size of the workpieces. The flipping device is powered by a cylinder, which flips the billet from the storage platform onto the conveyor track each time.

Feed conveying track: It is installed at the feed end of the induction coil in the quenching heat treatment furnace of the sucker rod. It is powered by a variable frequency speed regulating motor, and its operating speed is infinitely adjustable. Its operating speed is slightly faster than that of the heating conveying track.

Heating conveyor track: It is a conveyor track specifically designed to adjust the operating speed of workpieces during heating. It is also powered by a variable frequency speed regulating motor to adjust its heating speed according to the heating process requirements of different specifications of products. Due to the fact that the V-shaped track wheel of the heating track is located in a high-temperature working area, a hole is drilled in the center of the track axis and cooling water is supplied to cool the track wheel.

Quick material extraction conveyor track: This track is installed at the discharge end and powered by another motor, running much faster than the heating conveyor track. After the workpiece is quenched, the track motor immediately starts, driving the workpiece to quickly leave the quenching zone. Unloading device: When the workpiece leaves the quenching working area and reaches the end of the track, the sensor installed at the end of the track will issue a "unloading" command. Then, the cylinder under the track will push the workpiece out of the track and roll it down the side slide rail to the finished product stacking area.

Forever Electromechanical Equipment Manufacturing Co., Ltd. has nearly 20 years of production history and rich experience in the production of quenching heat treatment furnaces for sucker rods, ensuring stable product operation and comprehensive after-sales service. Choosing Forever Electromechanical is definitely the right choice!
