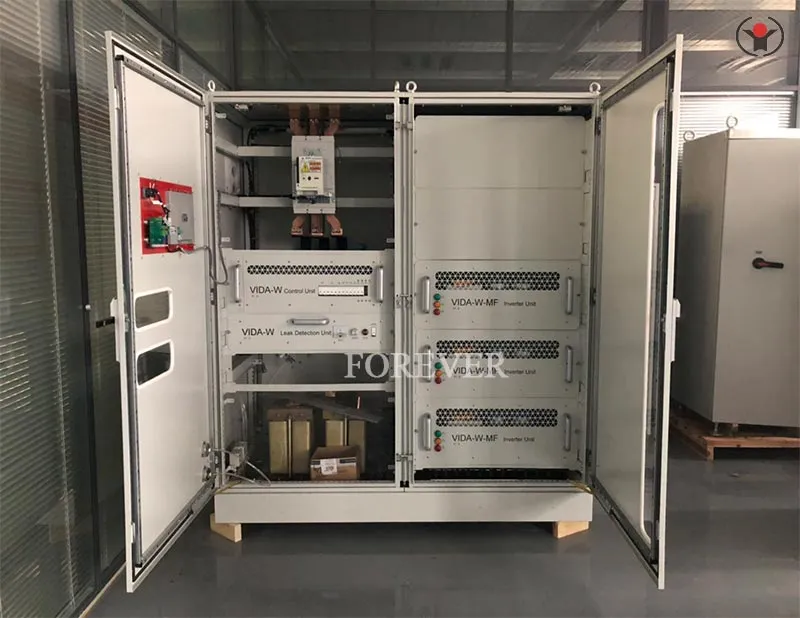

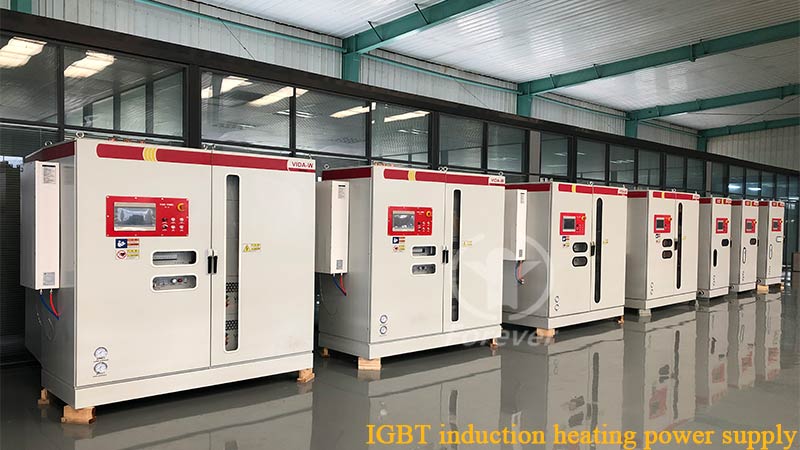

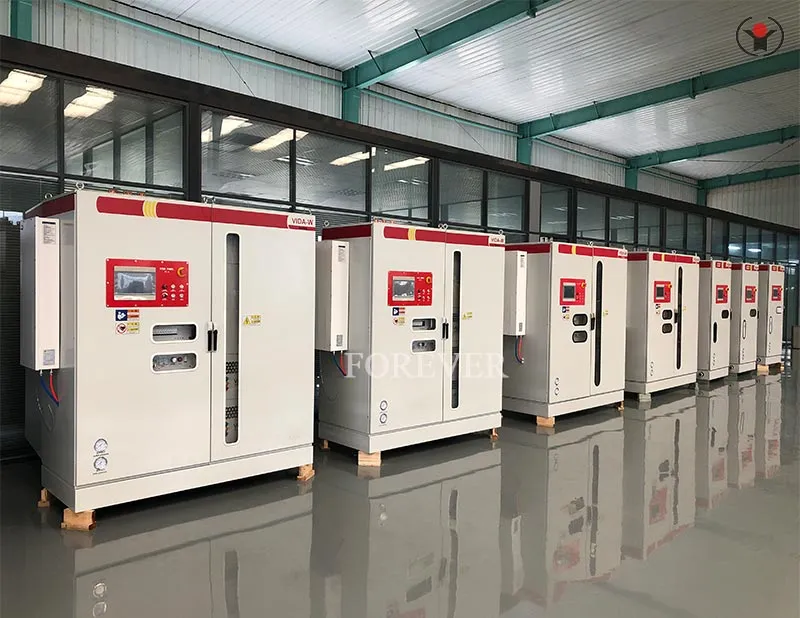

Meduim frequency induction heating power supply

Product Usage: Suitable for: Meduim frequency induction heating power supply

Forever specializes in designing and producing induction heating power supplies. The new intelligent intermediate frequency induction heating power supply is 15% -30% more energy-efficient than the old intermediate frequency power supply, with stable performance and high production efficiency. You sincerely choose and Forever wholeheartedly provides you with high-quality intermediate frequency induction heating power supplies.

Performance characteristics of meduim frequency induction heating power supply:

Series resonant design, fully open rectification, high power factor, and small resonant component.

T2 copper bars are used inside the cabinet, which have undergone sandblasting, passivation treatment, low leakage inductance, oxidation resistance, and effectively reduce line losses.

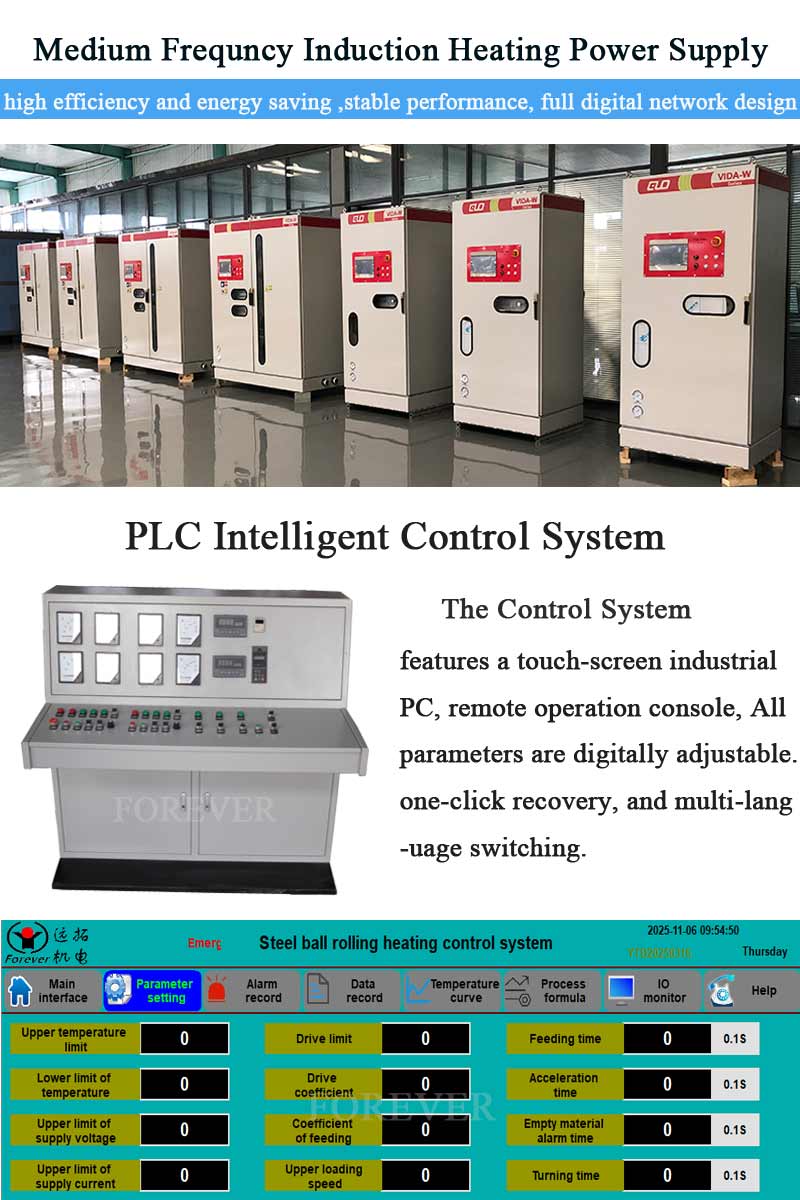

Intelligent quality system monitoring system: capable of real-time monitoring of power operation status, large database, flexible storage and viewing of process parameters.

One click quick start: Start time of 300ms, high success rate of startup.

Digital circuit wideband adaptation: With a wide frequency range (1-50kHz), it is suitable for various types of workpieces.

Fiber optic transmission: Imported fiber optic is used, which has fast transmission speed and strong protection capability, greatly improving the stability and reliability of the whole machine.

Surge absorption: dedicated incoming line reactor to reduce harmonic pollution to the power grid.

Filter damping controllable rectification module circuit: purifies the whole machine and resists impact.

Automatic recognition of incoming phase sequence: No manual adjustment of phase sequence is required.

The unique load matching testing function can directly test the matching situation of the load after replacing it.

Single motherboard: avoids the problem of excessive contact points and high failure rate caused by the combination of multiple control boards.

High power factor: No need for separate power compensation, reducing user electricity expenses and improving power supply capacity.

The electrical control cabinet uses industrial specific air conditioning to regulate the temperature and humidity inside the cabinet.

The power layout adopts the separation of water and electricity, avoiding the harm of accidental water leakage to power equipment and improving safety and reliability. High stability and complete protection circuit: overcurrent, overvoltage, phase loss, overload, overtemperature, water pressure, grounding fault, frequency tracking loss lock and other protection measures, fully functional, imported fiber optic transmission, fast and reliable protection.

Strong anti-interference ability

(a) All pulse lines use dual core shielded cables.

(b) All signals use twisted pair cables.

(c) To reduce the coupling inductance and capacitance between the intermediate frequency busbars, the output copper bars are tightly attached. Insulate the film and clamp it with adhesive tape to prevent vibration.

1. Technical after-sales service with professional engineers for overseas equipment.

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.
