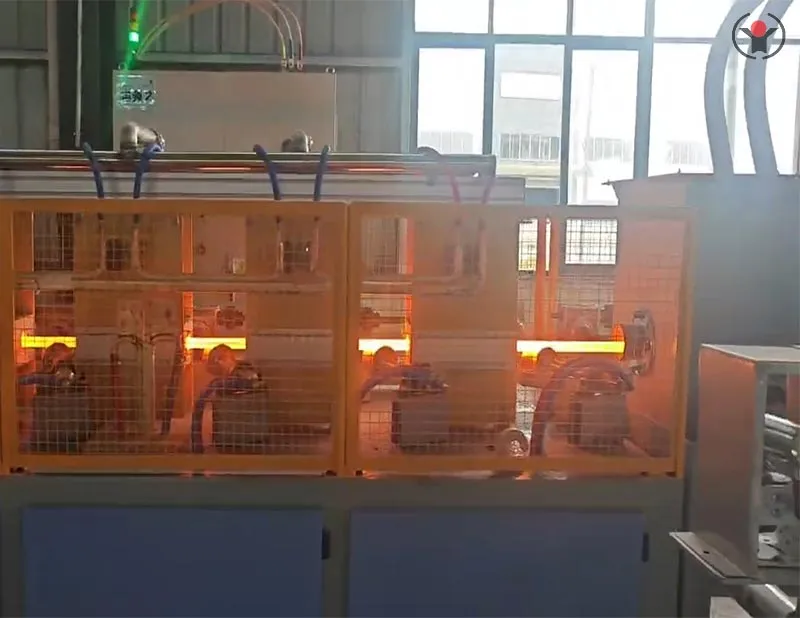

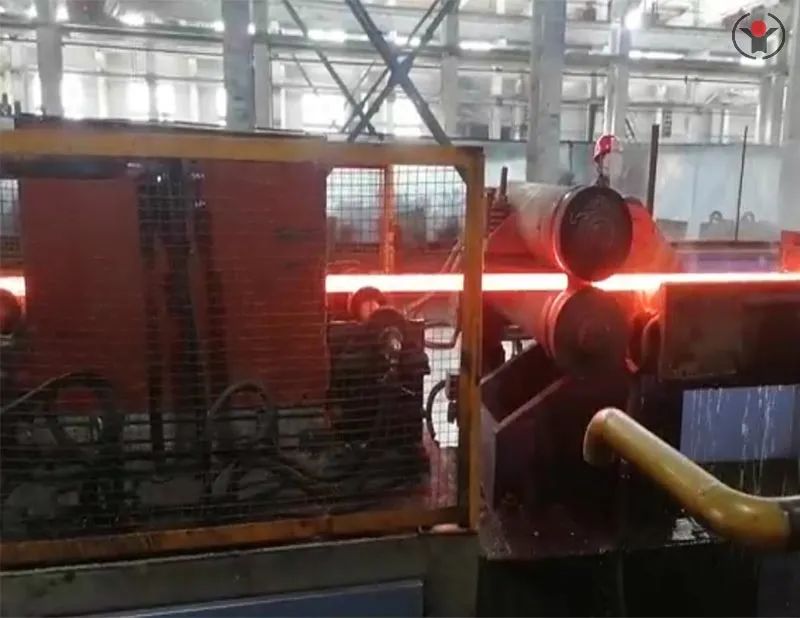

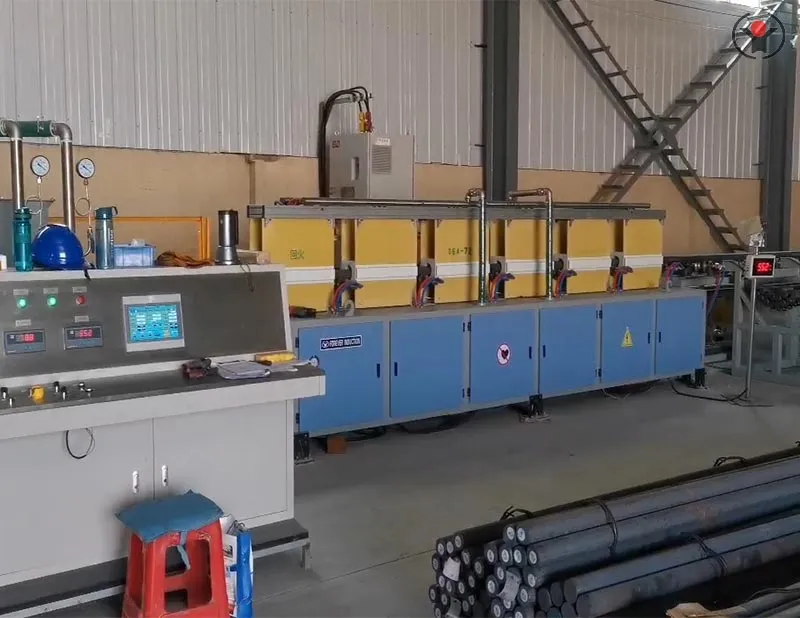

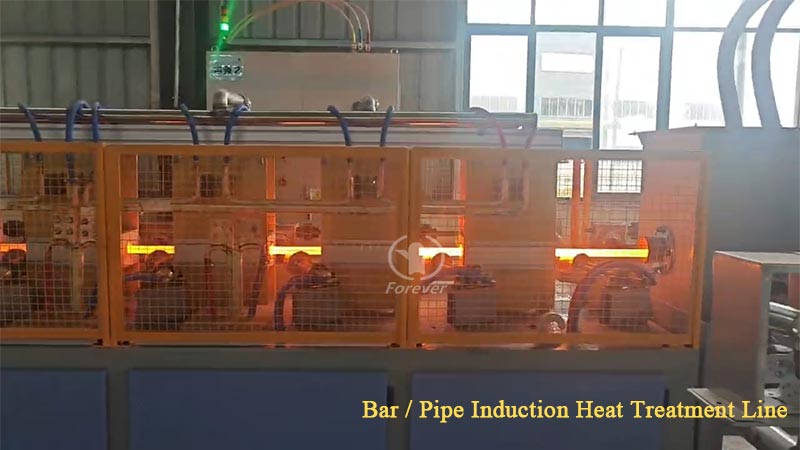

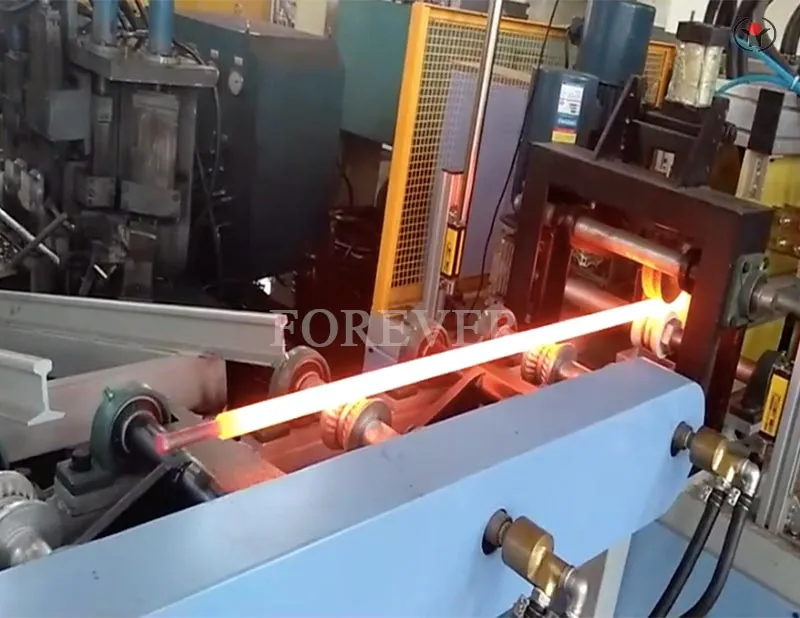

Sucker Rod Heat Treatment Machine

Suitable for heat treatment of sucker rods, drill rods and other workpieces

Forever Electromechanical specializes in producing heat treatment and tempering furnaces for sucker rods. The equipment is fully automated and controlled by PLC, and the production process is fully monitored by computers. High energy efficiency. Users can provide workpiece dimensions according to their needs, and the workpiece needs to be heated to a certain temperature and required conditions. Our technicians will design a perfect technical solution for the quenching and tempering heat treatment equipment of the sucker rod for you.

The heat treatment and tempering furnace line for sucker rods is a process of quenching and tempering the sucker rods to achieve insulation. After quenching, the sucker rods have wear resistance and increased hardness. Our sucker rod induction heat treatment and tempering furnace heats uniformly, and the quenched and tempered stone sucker rods have no cracks and superior product quality. High production efficiency, energy-saving and environmentally friendly equipment.

The manufacturing process of the induction coil for the heat treatment and tempering furnace of the sucker rod is designed based on the process parameters provided by the user, with the ratio of the inner diameter of the induction coil to the outer diameter of the billet being within a reasonable range. The sensor coil is made of a large cross-section T2 rectangular copper tube, which is annealed, wound, acid washed, water pressure tested, baked, double insulated with mica tape and glass ribbon, dried, knotted, assembled, and then fixed as a whole. After the entire sensor is made, it forms a rectangular prism with good vibration resistance and integrity. The two ends of the sensor are protected by water-cooled furnace copper plates, which can effectively prevent electromagnetic radiation from causing harm to the operator.

1. Technical after-sales service with professional engineers for overseas equipment.

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.
