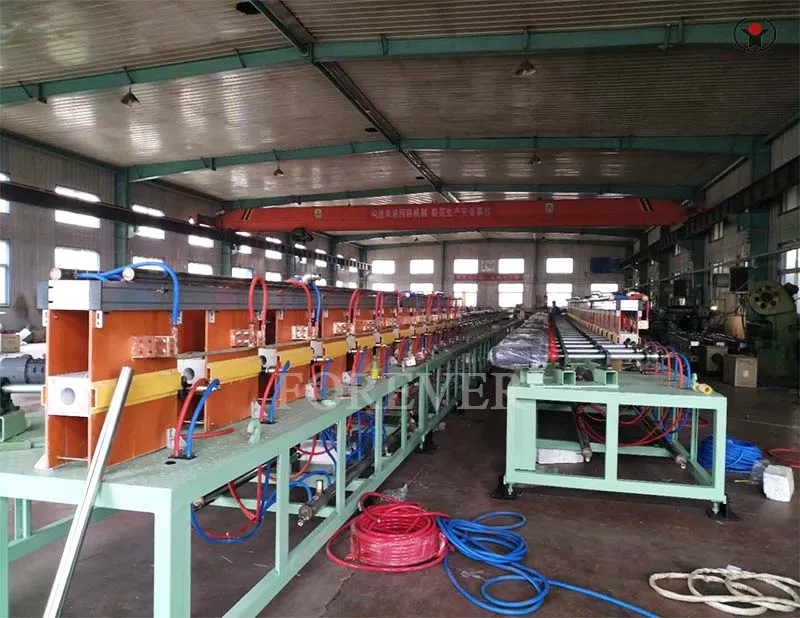

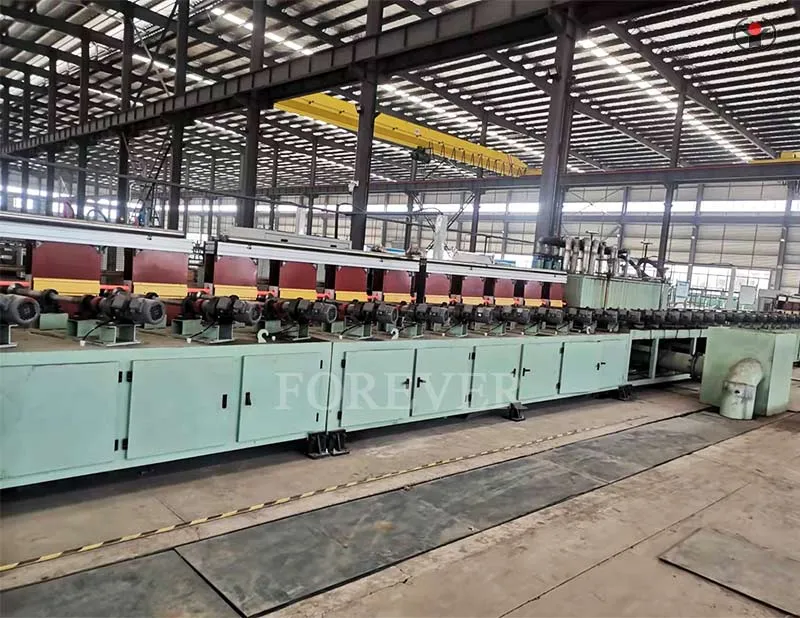

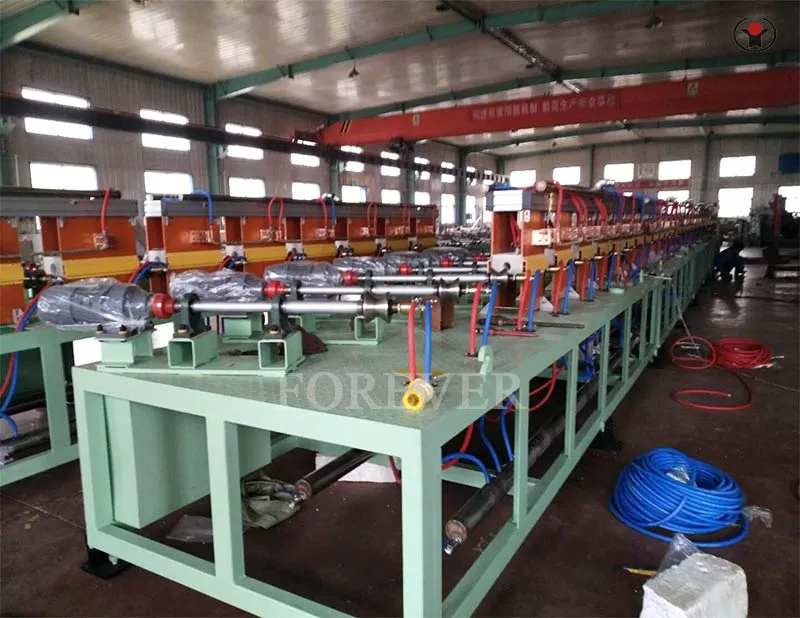

Medium Frequency Heat Treatment Production Line

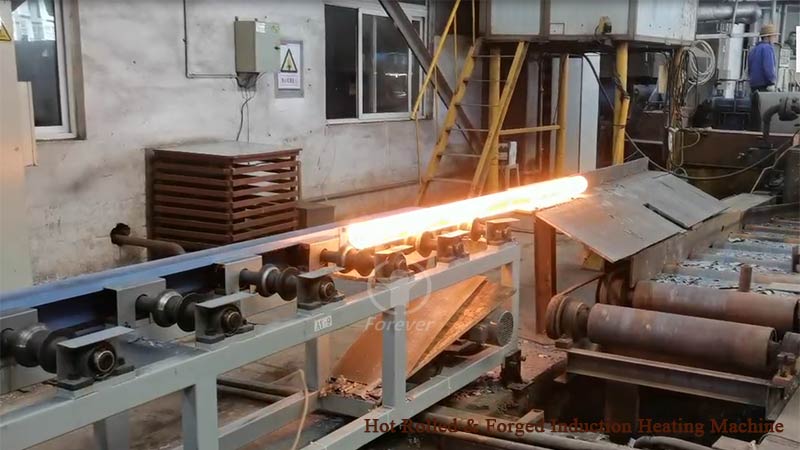

Product application: Suitable for heat treatment of metal workpieces such as steel bars, steel pipes, stainless steel, and irregular steel

Find a brand manufacturer for the intermediate frequency induction heat treatment production line, with guaranteed quality and after-sales service. Forever Electromechanical is a professional manufacturer of induction heating equipment, intermediate frequency induction heating furnaces, and induction heat treatment equipment. We can customize a cost-effective intermediate frequency induction heat treatment production line according to your process needs.

Main technical parameters of intermediate frequency induction heat treatment production line:

1. Power supply system: quenching power supply+tempering power supply

2. The hourly output is 0.5-3.5 tons, suitable for o20-o120mm and above.

3. Conveyor roller conveyor: The axis of the roller conveyor forms an angle of 18-21 ° with the axis of the workpiece. The workpiece rotates while moving forward at a constant speed, making heating more uniform. The roller conveyor between the furnace bodies is made of 304 non-magnetic stainless steel and water-cooled.

4. Roller grouping: The feeding group, sensor group, and discharge group are independently controlled, which is beneficial for continuous heating without creating gaps between workpieces.

5. Temperature closed-loop control: Both quenching and tempering use the American Raytheon infrared thermometer closed-loop control system for precise temperature control.

6. Industrial control computer system: Real time display of the current working parameter status, workpiece parameter memory, storage, printing, fault display, alarm and other functions.

Composition of intermediate frequency induction heat treatment production line:

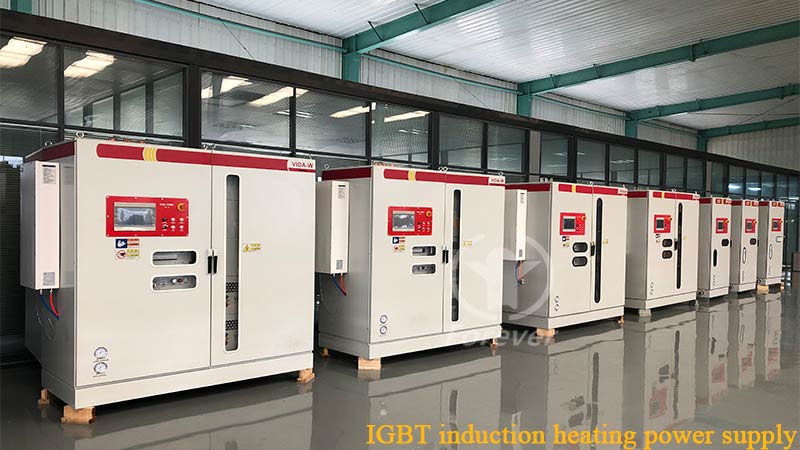

1. Quenching+tempering IGBT dual frequency induction heating power supply.

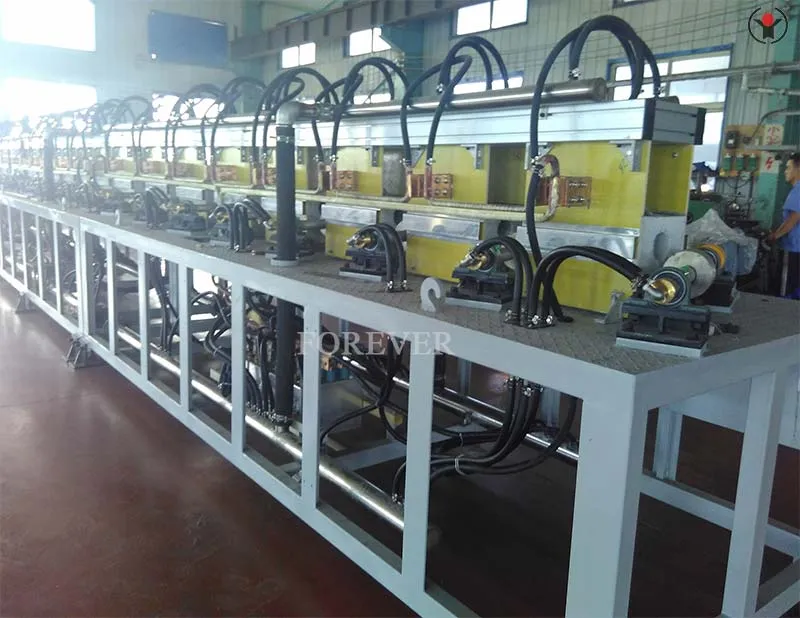

2. Quenching+tempering induction heating furnace body.

3. Storage rack.

4. Conveyor system.

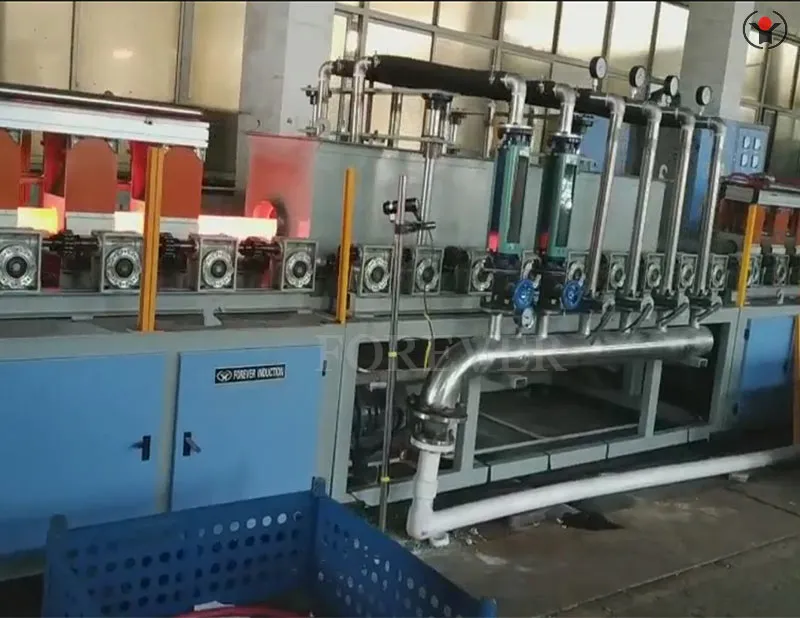

5. Quenching water tank (including stainless steel spray ring, flow meter and variable frequency roller)

6. Tempering furnace cabinet (including stainless steel pipes, dual frequency capacitor cabinet group, variable frequency drive)

7. Material receiving rack.

8. Human machine interface PLC control console.

9. Infrared temperature measurement and automatic temperature control device.

1. Technical after-sales service with professional engineers for overseas equipment.

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.
