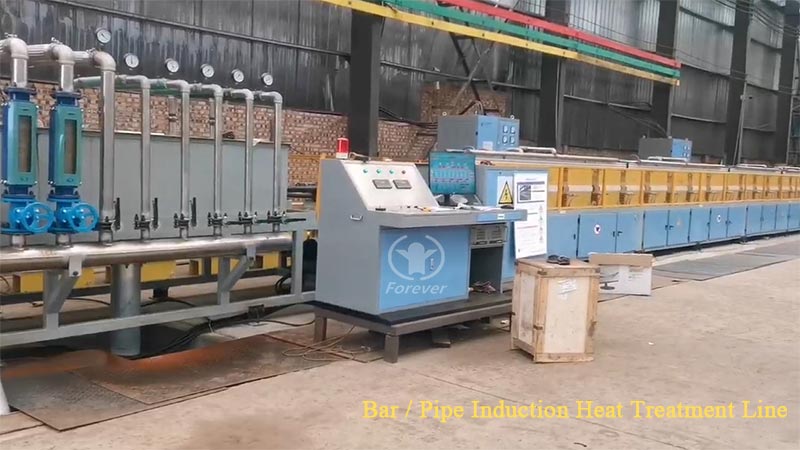

Long Bar Heat Treatment Machine

Suitable for processing workshops for long steel bars, bar materials, etc. with diameters greater than 10-150mm

Tempering power/frequency:160-1000KW/0.5-4KHz

Quenching power/frequency:100-600KW/0.5-2.5KHz

Production capacity:0.5-3.5t/h

Scope of application: 10mm-150mm

Main application: Suitable for quenching and tempering heat treatment of steel bars, low-carbon alloy steel, wind turbine bolts, lead screws, and hydraulic cylinder rods.

Energy Conversion: Adopting the method of hot quenching followed by high-temperature tempering, the power consumption per ton is 420-480 degrees.

The steel bar heat treatment and tempering equipment is produced using a relatively new method, and the size specifications are completely adjusted according to customer needs, greatly improving flexibility and eliminating unnecessary waste. At the same time, it can extend the service life, infinitely save costs, and reduce the labor of workers. Don't worry about the malfunction of the steel bar heat treatment and tempering equipment. The automatic alarm function greatly increases production.

The steel bar heat treatment and tempering equipment adopts MCSV7.6F medium frequency power supply control system, which mainly consists of three parts: main control board, rectifier trigger board, and inverter trigger board. Its core components adopt high-performance, high-density, large-scale dedicated DSP+FPGA composite integrated circuits, enabling all circuits to be digitized. All parameters can be digitally corrected on touch screens or remote devices, and it has the characteristics of high reliability, strong anti-interference ability, and fast response speed. The inverter system adopts the third-generation sweep frequency zero voltage soft start method, which has superior starting performance. Automatically and quickly capture the resonant frequency within the range of 200~10000Hz, and quickly lock and track to complete the start-up process. At present, when debugging analog or primary digital circuits in China, it is necessary to manually predict the resonance frequency and continuously adjust the starting frequency and operating angle to improve the success rate of starting, which requires high demands on workers. Especially when multiple sets of sensors need to be switched, it is often difficult for workers to master the tedious technical essentials, resulting in difficulties in starting and incorrect operating status, leading to frequent faults and tripping, and even large-scale damage to power devices. And all of this in our control system only requires clicking the "start" button, and all parameter judgments are automatically completed, allowing users to focus on the improvement and enhancement of their own product processes, no longer spending a lot of energy learning the use and adjustment of heating equipment.

1. Technical after-sales service with professional engineers for overseas equipment.

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.
