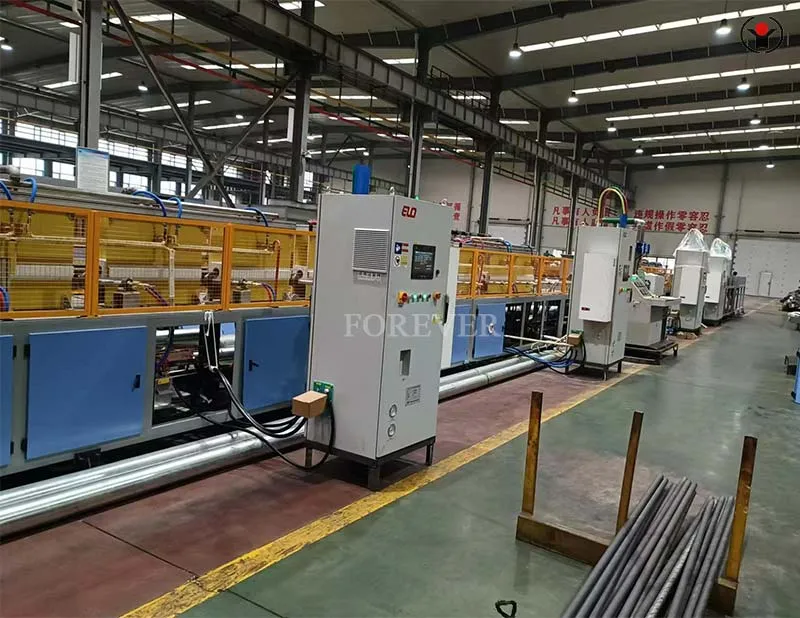

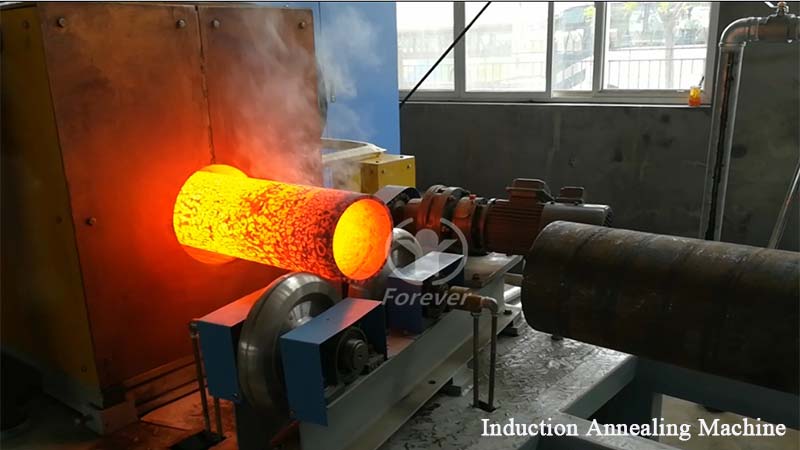

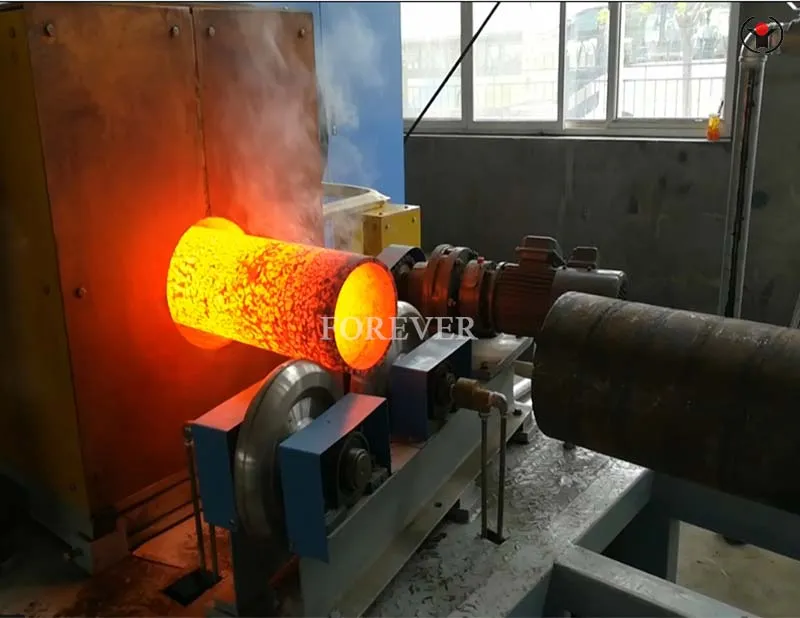

Thick walled steel pipe induction annealing furnace

Product Usage:

Used in heat treatment workshops for steel pipes with a diameter greater than 20, stainless steel pipes, seamless steel pipes, thick walled pipes, etc

Forever is a professional manufacturer with many years of production experience, specializing in the development and production of induction heating equipment such as thick walled steel pipe induction annealing furnaces, thick walled steel pipe induction annealing treatment furnaces, and thick walled steel pipe induction annealing furnaces for the automotive industry. Here, you can enjoy our reliable service, stable and reliable product quality, and convenient transportation location! Welcome to visit the factory and discuss business!

1. KGPS intermediate frequency power supply 500KW/1000HZ

2. Furnace frame (including capacitor cabinet group, water circuit, circuit, gas circuit)

3. Sensors (domestic brand series products)

4. Connect wires/copper bars (power supply to furnace body)

5. Conveyor output system

6. Infrared side temperature control system

7. PLC Control Console (Variable Frequency Speed Control)

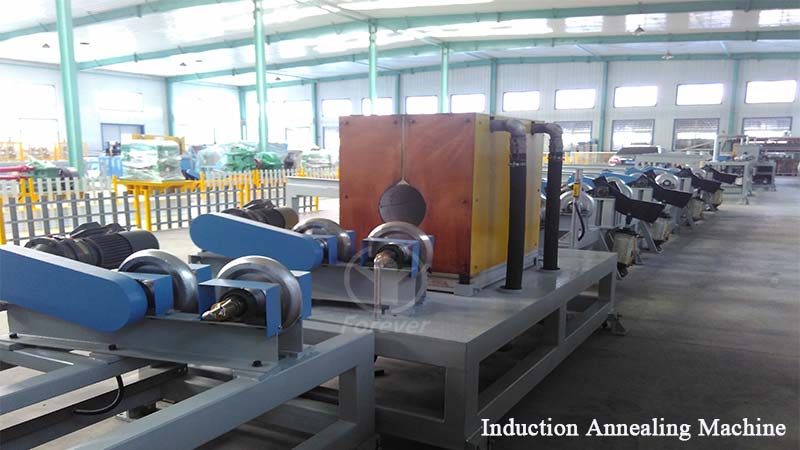

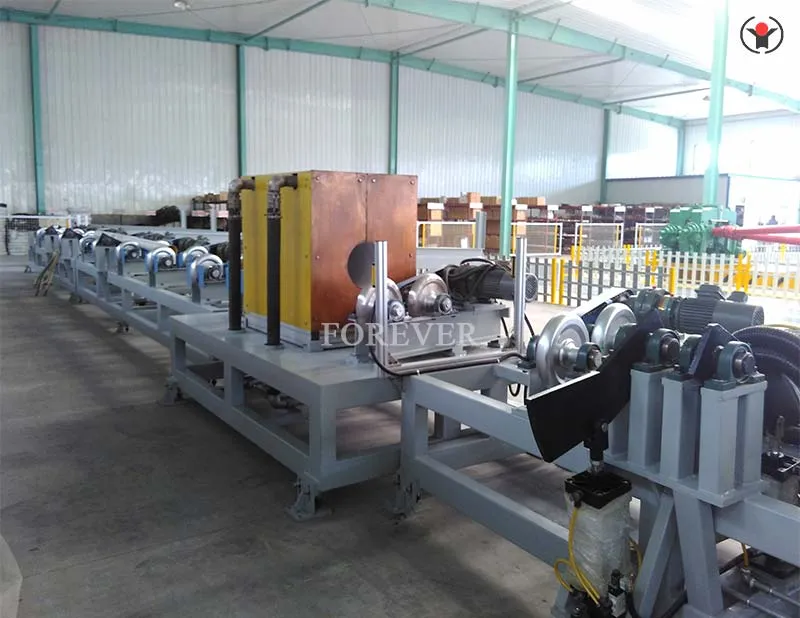

The conveying system of the thick walled steel pipe induction annealing furnace includes a conveyor roller, with the roller axis forming an angle of 18-21 ℃ with the workpiece axis. The workpiece rotates at a constant speed while moving forward at a constant speed, making the heating temperature more uniform. The furnace body roller is made of 304 stainless steel. The feeding system is driven by an independent motor reducer and controlled by an independent frequency converter. Segmented control of operating speed, flexible design.

The entire steel pipe annealing heat treatment equipment system adopts PLC centralized control, which can be manually or automatically controlled. The control system is reasonable, stable, reliable, accurate and anti-interference. All digital, high depth adjustable parameters, and the system adopts an expansion module to collect temperature as a closed-loop feedback signal. After processing by PLC program, corresponding adjustments are made to achieve closed-loop control of the system. Make your device control effortless.

1. Technical after-sales service with professional engineers for overseas equipment.

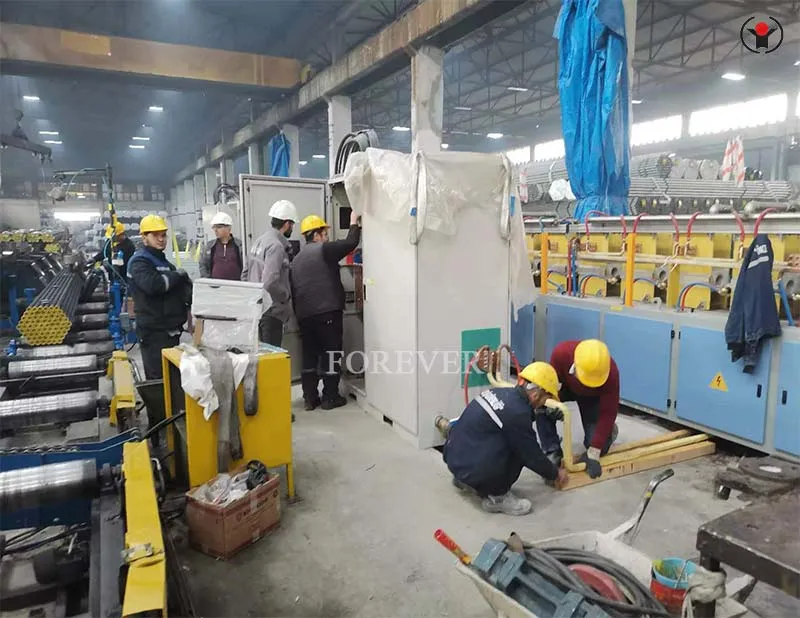

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.
