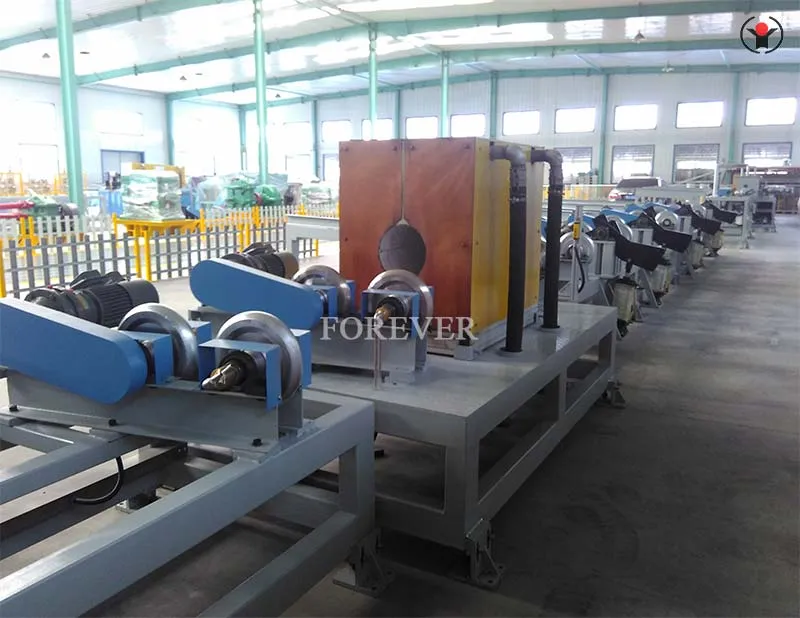

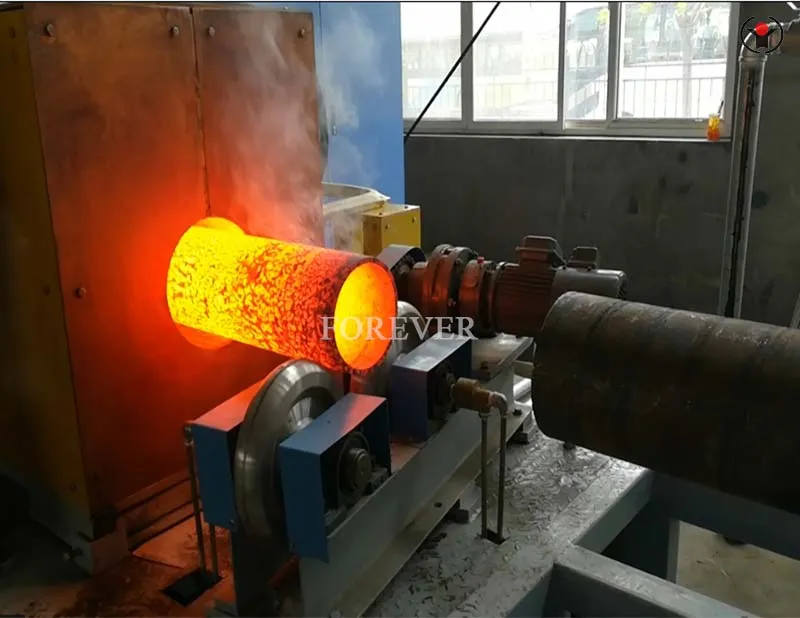

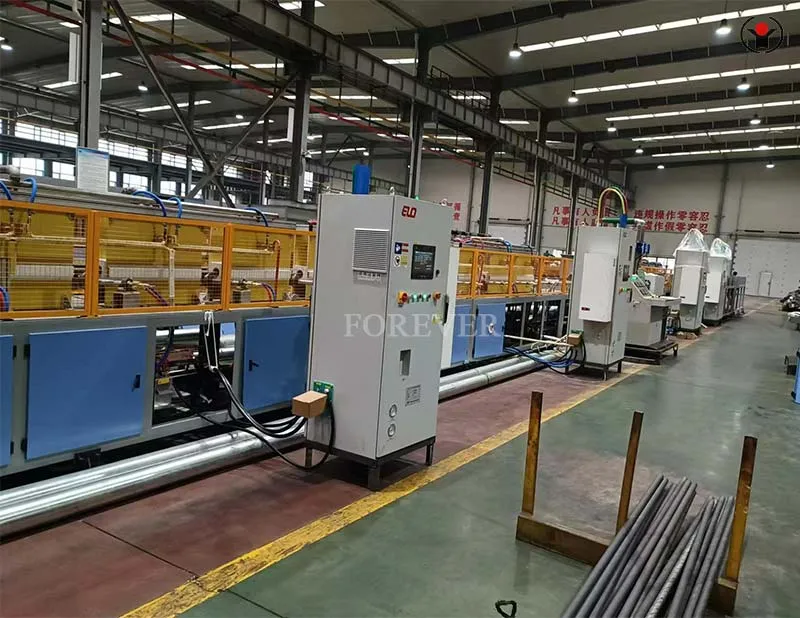

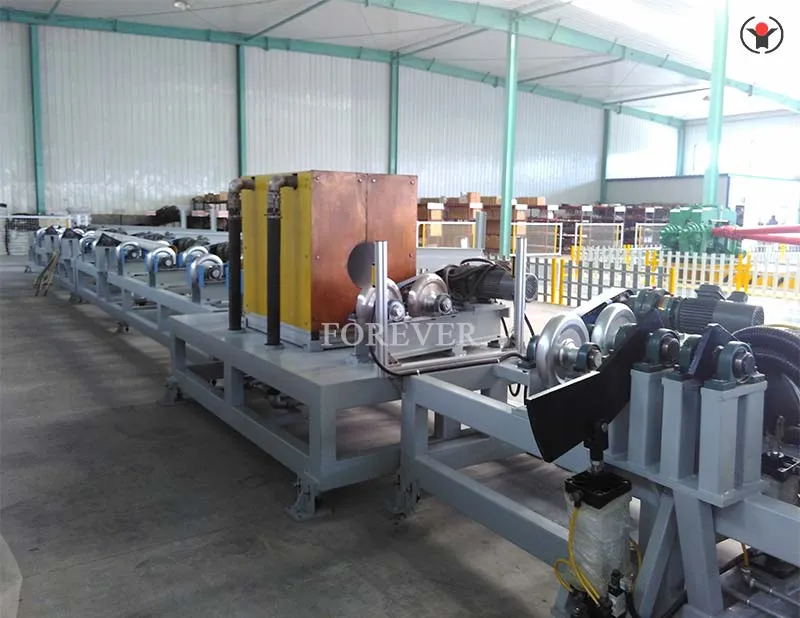

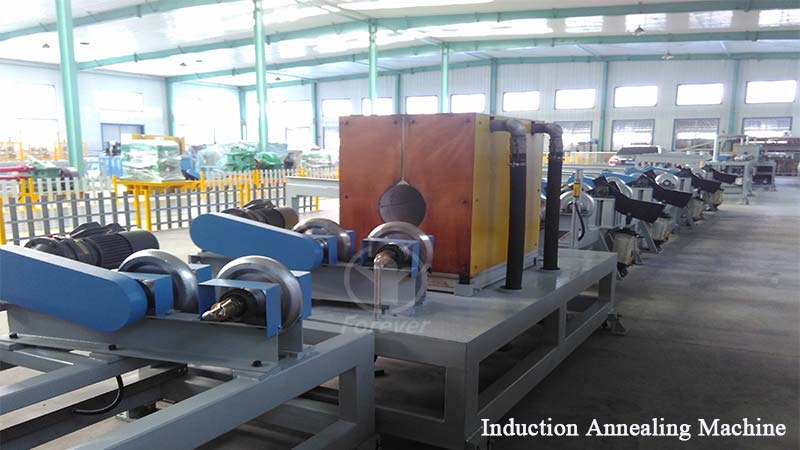

Steel pipe online weld induction annealing equipment

Suitable for annealing treatment of metal workpieces such as steel pipes, high-frequency welded steel pipes, stainless steel pipes, etc

Pipe diameter: 20~150 mm

Pipe length: 2-20m

Power requirement: 80-5000 kW

Quality standards: After heat treatment by this machine, the yield strength, tensile strength, hardness, elongation, and impact performance of the steel pipe can all meet the standards. Yuantuo Electromechanical specializes in customizing steel pipe online weld annealing equipment for you. Our company specializes in producing steel pipe online weld annealing equipment and has many years of experience in producing induction heat treatment equipment. We offer various industrial electric furnaces that can be customized on-site and manufactured according to specific needs. Provide users with excellent induction heating equipment system solutions and services for free, making customer products more competitive.

Equipment Name: Steel Pipe Online Weld Annealing Equipment

Equipment brand: Forever

Non standard customization: Yes

Workpiece material: carbon steel, alloy steel, etc

Delivery time: within 20 days

【1】 Parallel resonance design, phase-shifting power adjustment, mature and stable steel pipe online weld annealing equipment; More advantageous in the high-power range above 3000KW;

【2】 DSP control, quickly capture phase-locked start, meet frequent start stop requirements, high success rate;

[3] Variable frequency and load adaptive, with a frequency adaptation range of 200-10000Hz, automatic matching for induction furnace replacement, without the need for any manual adjustment; 【4】 T2 copper bars are used inside the cabinet, which have been sandblasted and passivated; Low leakage inductance, anti-oxidation, effectively reducing line losses;

【5】 Full touch screen control, pure digital tuning, with complete process records and strict level permissions. The main parameters can be restored to factory settings with just one click;

【6】 The power supply has a single unit power of 50-6000KW and a frequency of 200-10000HZ.

The characteristics of the steel pipe online weld annealing equipment include:

Temperature closed-loop control, using a dual color American Raytheon infrared thermometer to control the temperature, with the function of real-time display of the current temperature, so that the temperature difference between the annealed steel pipe and the furnace is controlled within 10 ℃.

Carefully designed sensors with high heating efficiency and fast heating speed; The copper tube of the sensor has uniform turns, easy temperature control, good insulation performance of the sensor, and is protected by 10 thick yellow insulation plates around it, with a long service life.

PLC human-machine interface, highly user-friendly operation instructions, fully digital, high depth adjustable parameters, providing corresponding language switching according to different countries and regions

The components of the steel pipe online weld annealing equipment are all made of well-known domestic and foreign brands, with a professional formula management system that ensures quality. After selecting the steel type and pattern parameters to be produced, the relevant parameters are automatically called, without the need to manually record, review, or input various workpiece parameter values.

1. Technical after-sales service with professional engineers for overseas equipment.

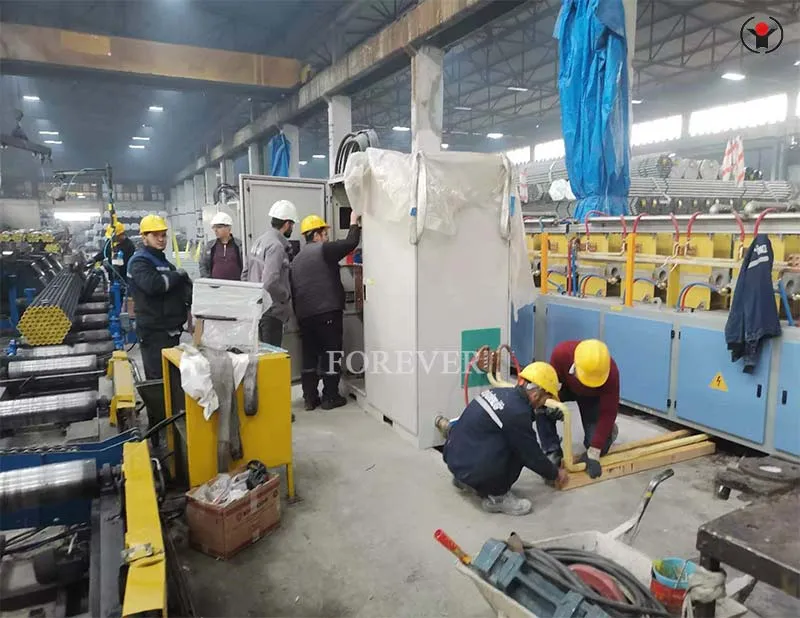

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.
