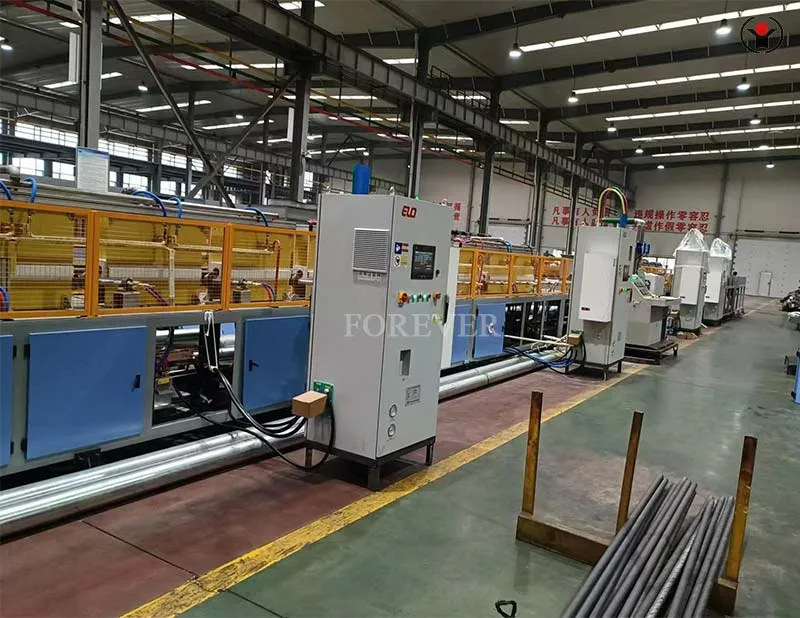

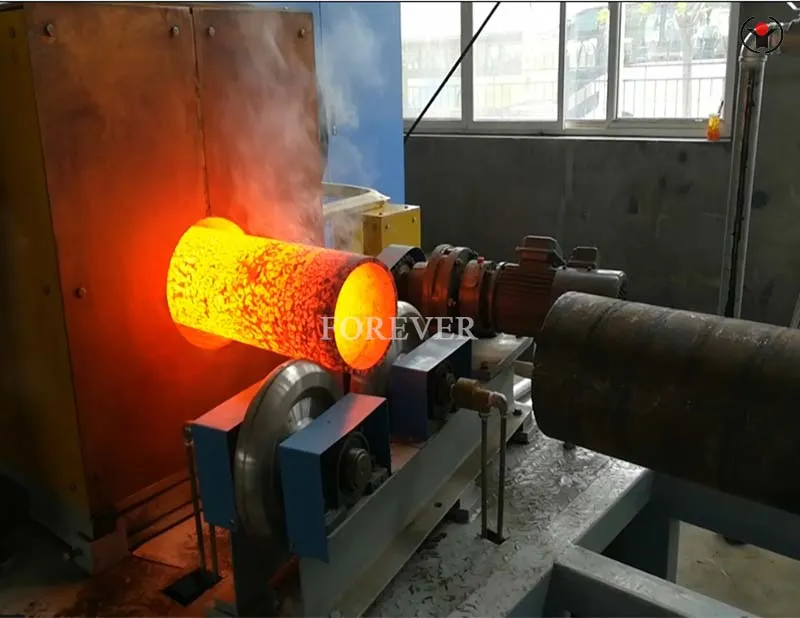

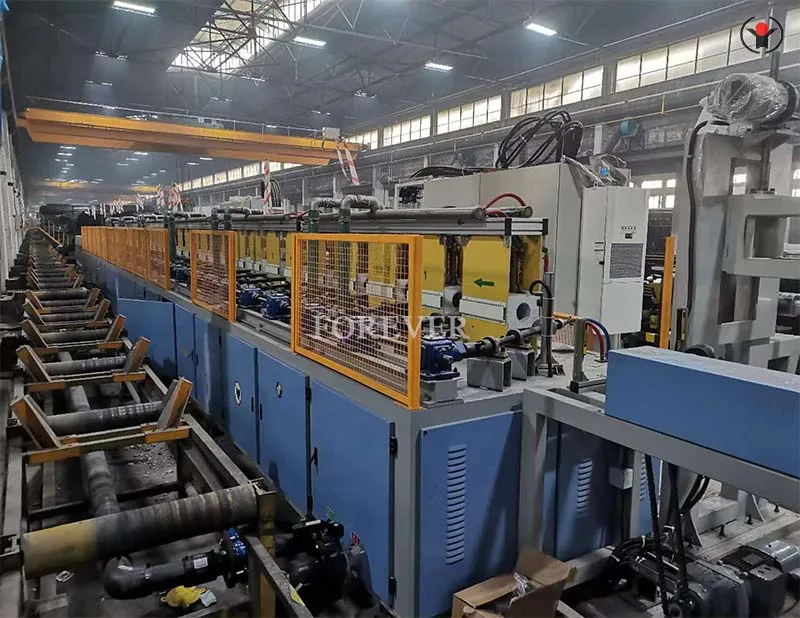

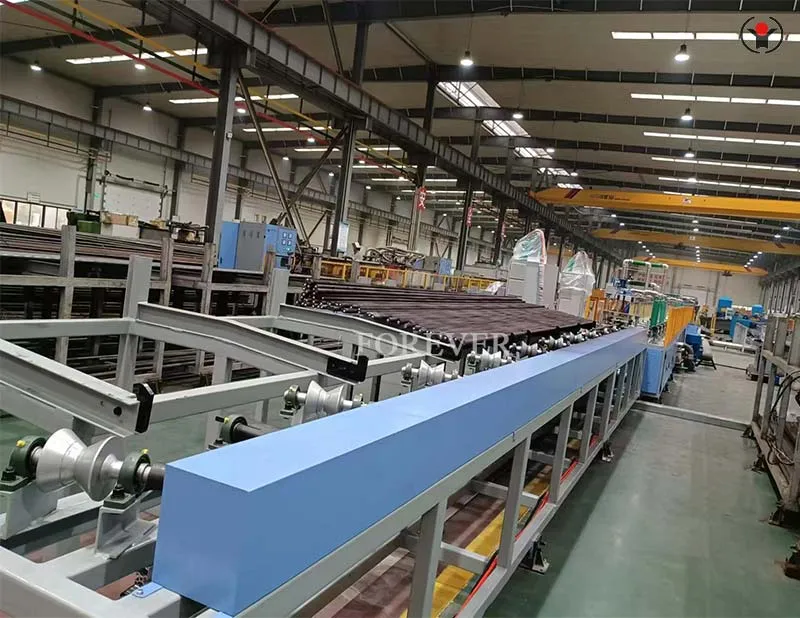

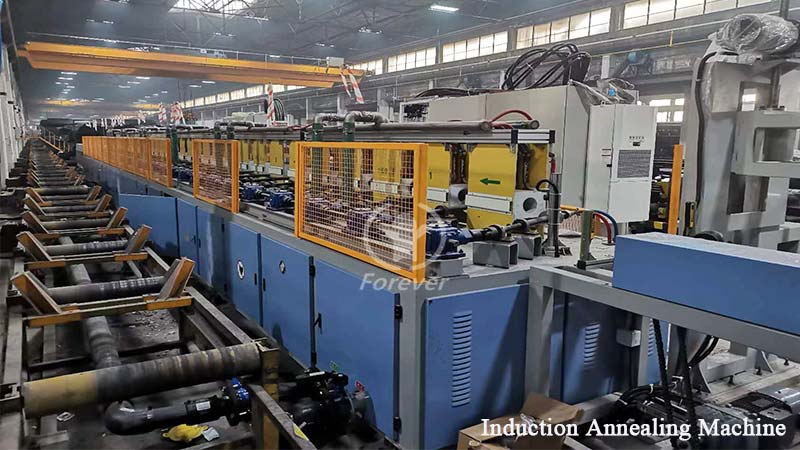

Steel pipe heat treatment induction annealing equipment
Used for heat treatment of high-frequency welded steel pipes, stainless steel pipes, seamless steel pipes, thick walled pipes, etc. with a diameter greater than 20
The steel pipe heat treatment induction annealing equipment has the advantages of flexible production, easy mobility, high heating efficiency, excellent thermal processing quality, and favorable environment. It is rapidly phasing out coal-fired furnaces, gas furnaces, oil fired furnaces, and ordinary resistance furnaces, and is a new generation of metal heating equipment. The steel pipe heat treatment annealing equipment is the main equipment in the heat treatment workshop. The stability, reliability, and safety of the high-frequency welding steel pipe annealing equipment are the guarantees for the normal and stable operation of the heat treatment production line in the assembly line operation
The entire process flow of steel pipe heat treatment induction annealing equipment is as follows:
The control system of the induction heating equipment adopts a high-performance embedded integrated chemical control machine for centralized control, with high control accuracy, stable operation, anti-interference, anti pollution, strong vibration resistance, and easy operation.
The control system of the steel pipe heat treatment annealing equipment consists of Siemens PLC from Germany, Kunlun Tongzhou industrial computer from Beijing, and Leitai temperature measurement system from the United States. It can achieve comprehensive management of the steel pipe heating furnace system, realize equipment automation, and system self-regulation. Reasonable, stable, and accurate control. The advantage of strong anti-interference ability is that the temperature closed-loop control of the steel pipe heat treatment annealing equipment adopts a thermometer model: Raytheon from the United States; Measurement temperature range: 500-1400 ℃; Measurement accuracy: ± 0.3% of the measured star value+1 ℃; Spot size ≤ 6mm; repeatability:+0.1% of measured value+1 ℃ ℃; Response time: ≤ 1 millisecond (95% response); Focal length 400~600mm; output: 4-20mA; power supply: 24V, 500mA ± 20%.
After Sales Service Commitment
1. Technical after-sales service with professional engineers for overseas equipment.
2. On site technical service guidance and training for operators to proficiently operate the entire equipment.
3. The warranty period is 12 months and online permanent service is provided.

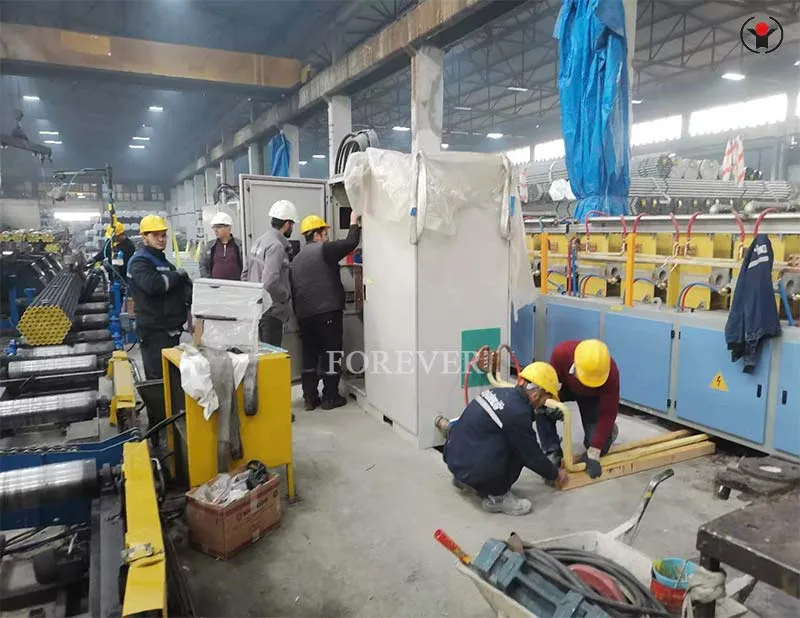

Customer Visit
