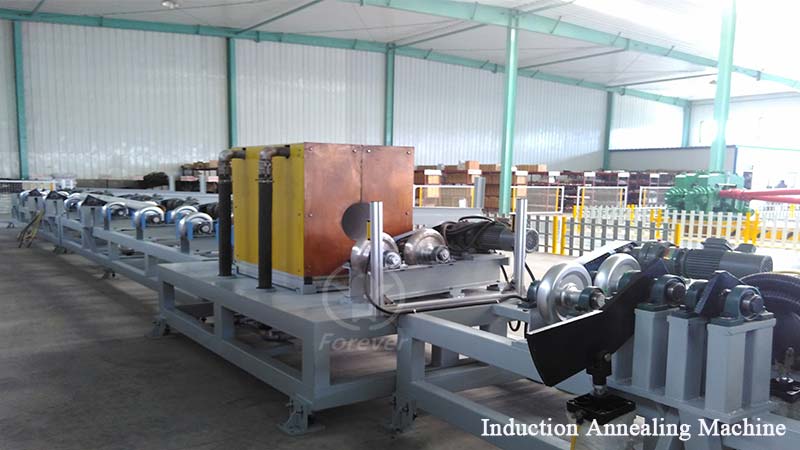

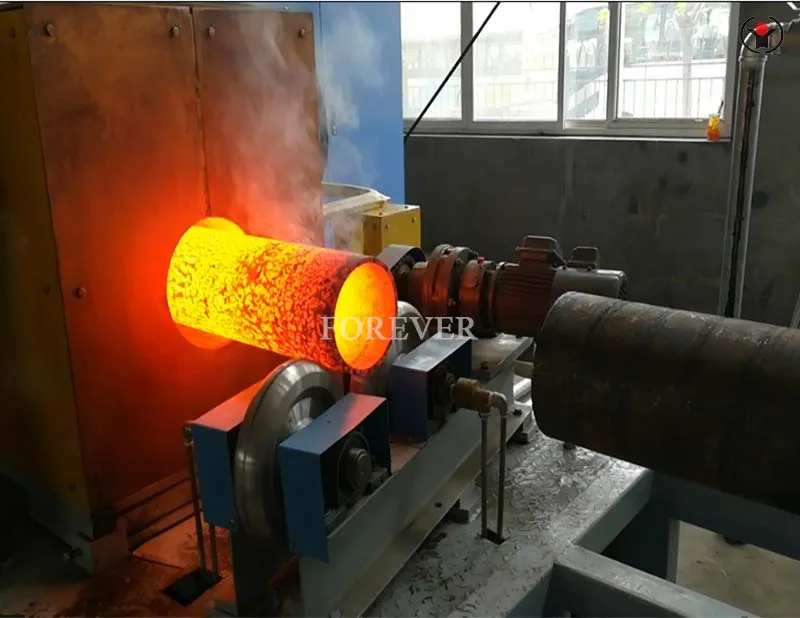

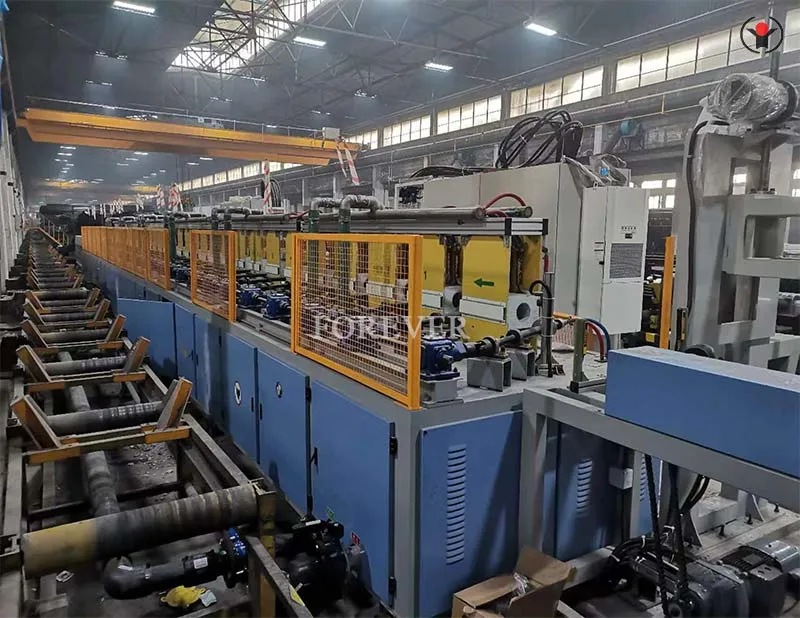

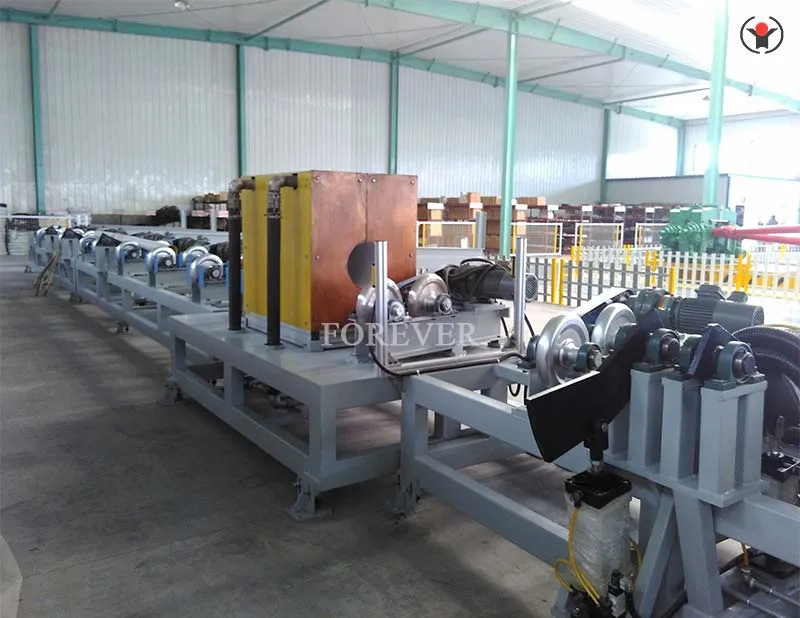

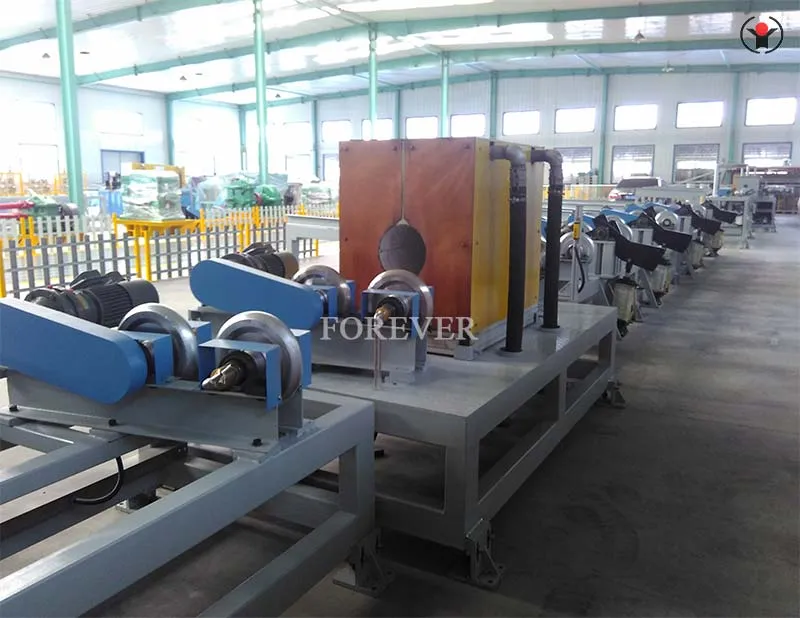

Stainless Steel Pipe Induction Annealing Normalizing Machine

Stainless steel pipe annealing furnace is suitable for annealing heat treatment of

metal workpieces such as steel pipes, seamless pipes, and stainless steel pipes

Feature:

Diameter: 20~150 mm

Length: 2-20m

Power requirement: 80-5000 kW

Quality standards: After heat treatment by this machine, the yield strength, tensile strength, hardness, elongation, and impact performance of the workpiece can all meet the standards. The new environmentally friendly product, stainless steel pipe annealing furnace, is designed and produced by Forever Electromechanical. The stainless steel pipe annealing furnace is fully automatic and intelligent controlled by PLC, and the computer monitors the entire production process of the induction heating equipment, which is efficient and energy-saving. Forever has a team of experienced experts in the induction heating industry, with professional design capabilities, who can customize annealing heat treatment equipment for you. Welcome to consult!

Equipment Name: Stainless Steel Pipe Induction Annealing Furnace

Equipment brand: Forever

Non standard customization: Yes

Transportation method: sea freight

The stainless steel pipe annealing furnace is controlled by a series resonant intermediate frequency power supply, and its characteristics are as follows:

Series resonant design, fully open rectification, high power factor, and small harmonic components. one

2. The power supply and induction furnace are always reliably matched, with full power output. Low shutdown loss and small reactive power component.

3. Variable frequency load adaptive, frequency adaptation range of 200-10000Hz, automatic matching for induction furnace replacement, no need for manual adjustment

4. The power cabinet of the stainless steel pipe annealing furnace uses T2 copper bars, which have been sandblasted and passivated; Low leakage inductance, anti-oxidation, effectively reducing line losses.

Full touch screen control, pure digital tuning, with complete process records and strict level permissions. The main parameters can be restored to factory settings with just one click.

6. The power supply for stainless steel pipe annealing furnace has a single unit power of 50-6000KW and a frequency of 200-10000HZ

1. Technical after-sales service with professional engineers for overseas equipment.

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.
