Sucker Rod Hot Rolling Induction Heating Equipment,sucker rod induction heating machine for hot rolled

Sucker Rod Induction Heat Rolling Equipment

Product Application:

Suitable for heating treatment of torsion bars, automotive stabilizer bars, sucker rods, and other metal components.

The sucker rod hot rolling induction heating equipment is an induction heating device used in the petroleum industry to process slender rods. We can customize the production of induction heating equipment based on the length and rod diameter of the workpieces! Please contact us for inquiries about sucker rod heat rolling equipment. We will provide free induction heating technical solutions and equipment quotations.

A sucker rod is a slender rod in a sucker rod pumping unit, connecting the polished rod above and the pumping unit below to transmit power. After heat treatment, sucker rods can significantly enhance their tensile strength and fatigue resistance, reducing costs, saving production expenses, and effectively preventing or minimizing fatigue fractures in sucker rods. This extends the maintenance-free period of oil wells, creating substantial economic benefits for oil fields and society.

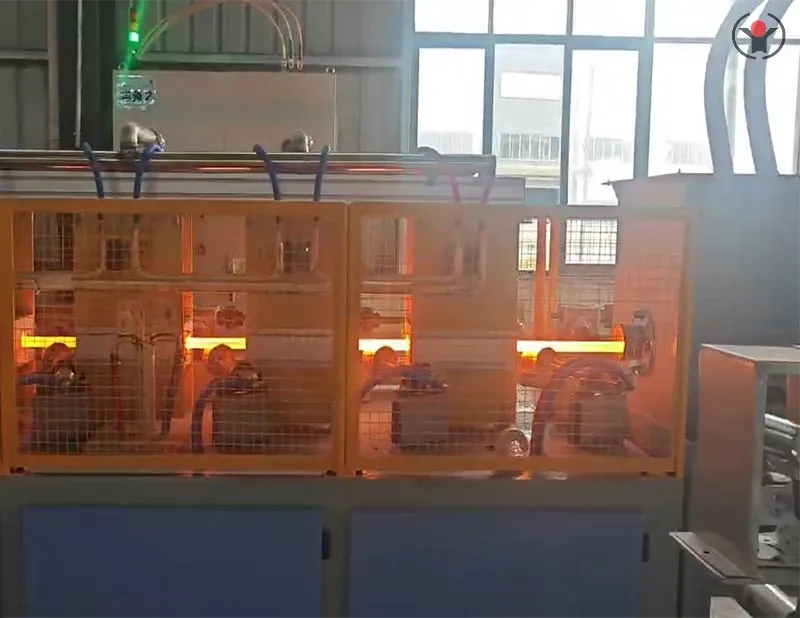

Sucker Rod Hot Rolling Induction Heating Equipment

Basic Parameters of the Sucker Rod Hot Rolling Induction Heating Equipment:

Equipment Name: Sucker Rod Heat Rolling Equipment

Power:100-1000 kW

Workpiece Specifications: Rod diameter: 8-32 mm; Rod length: 7.6-8 m

Material: High carbon steel

Features of the Sucker Rod Hot Rolling induction Heating Equipment:

1. Heats the surface of the sucker rod to improve tensile strength, with high compressive resistance, corrosion resistance, and anti-fatigue performance.

2. Equipped with automatic loading and unloading functionality.

3. Electrical control uses PLC + industrial control computer. The large vehicle movement employs frequency converter speed control to regulate heating depth. Optional infrared temperature sensors enable real-time temperature monitoring.

4. Thoroughly designed equipment ensures high hardness in treated sucker rods, preventing cracks, wear resistance, and extended service life.

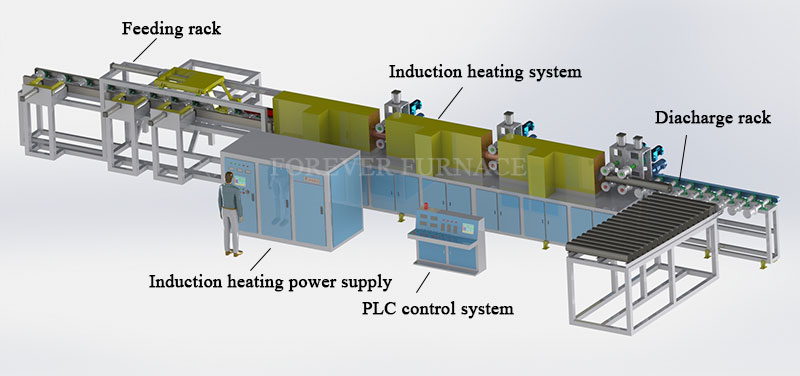

Sucker Rod Hot Rolling Induction Heating Equipment
