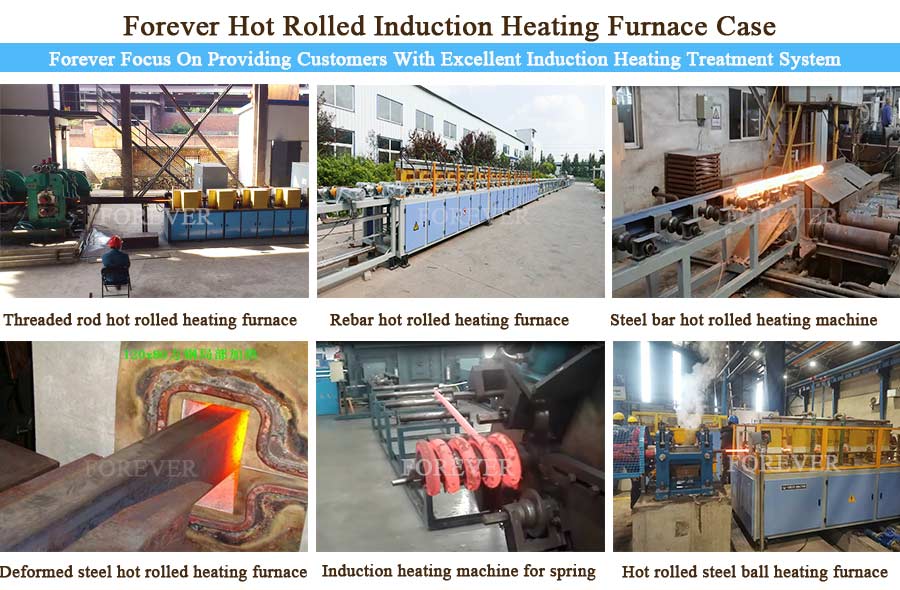

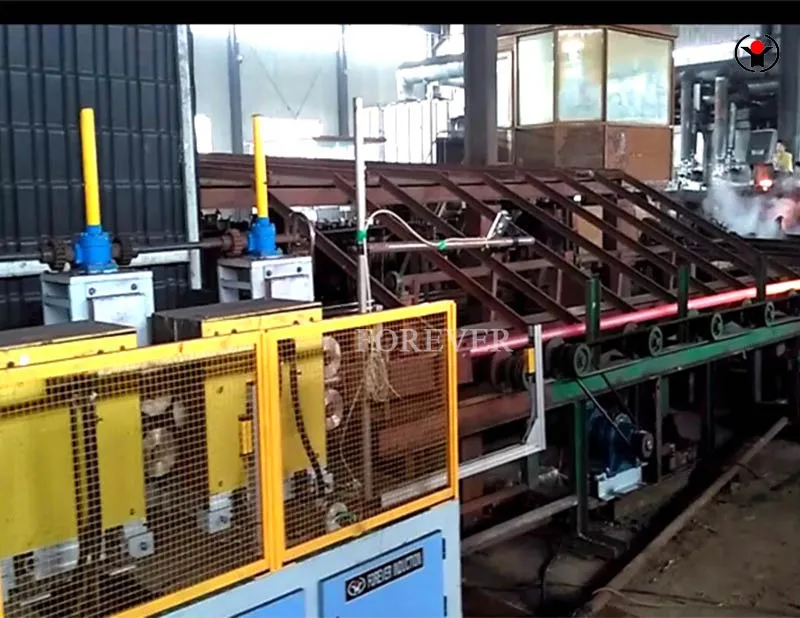

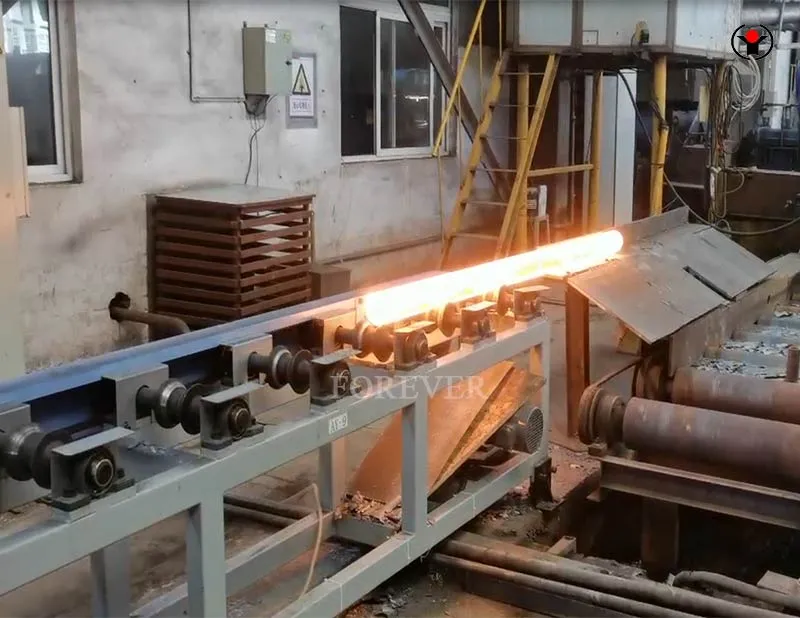

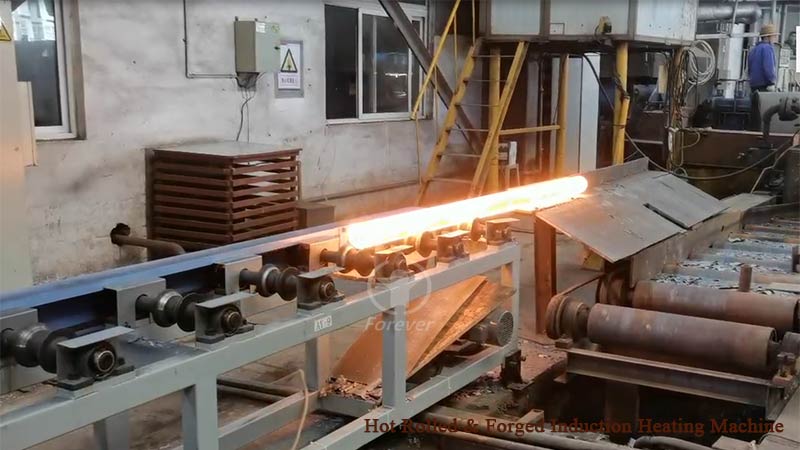

Steel Bar Hot Rolling Induction Heating Machine

Product use: Used for heating metal workpieces such as steel bars, steel pipes, stainless steel, etc

Main technical parameters of steel bar induction heating furnace for hot rolling:

Power supply system: 1GBT1000KW-2000KW/1-20KHz, hourly output 2.8-12 tons.

Steel billet materials: Q235, Q345, Q460A, 16Mn, 25MnB, 30MnB, 60Mn, and 80 # high carbon steel.

Storage system: A storage platform made of thick walled square tubes welded together, with a slope of 13, capable of storing 6-8 pieces of material.

Feeding system: cylinder, hydraulic cylinder or roller conveyor+power double pinch roller.

Discharge system: Temperature control system: Infrared temperature measurement PLC temperature closed-loop automatic temperature control system.

Discharge system: discharge rotating conveyor mechanism.

Industrial control computer system: records and displays current working parameters and status, material parameter memory, storage, printing, induction heating furnace faults, automatic power reduction and constant temperature maintenance, and many other powerful functions.

Energy conversion: Heating one ton of steel to 1050C consumes 310-330 kWh of electricity.

Provide a remote control console with a touch screen or industrial computer system according to user needs.

Specially customized human-machine interface with highly user-friendly operation instructions.

1. Intelligent series induction heating power supply

2. Furnace frame (including waterway, circuit, water-cooled pressure conveying roller)

3. Capacitor cabinet group

4. Induction heating furnace body

5. Storage and Conveyor Rack

6. Discharge rotary conveying mechanism

7. Connect wires/copper bars (power supply to furnace body)

8. Infrared temperature measurement system

9. Remote operation console (PLC control)

1. Technical after-sales service with professional engineers for overseas equipment.

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.
