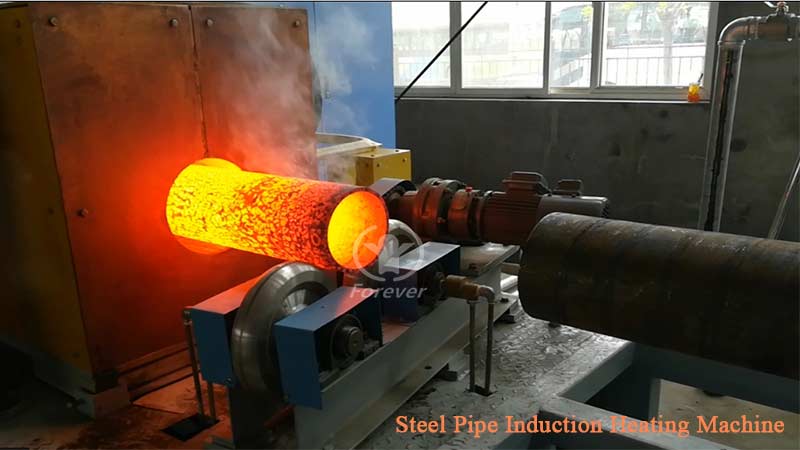

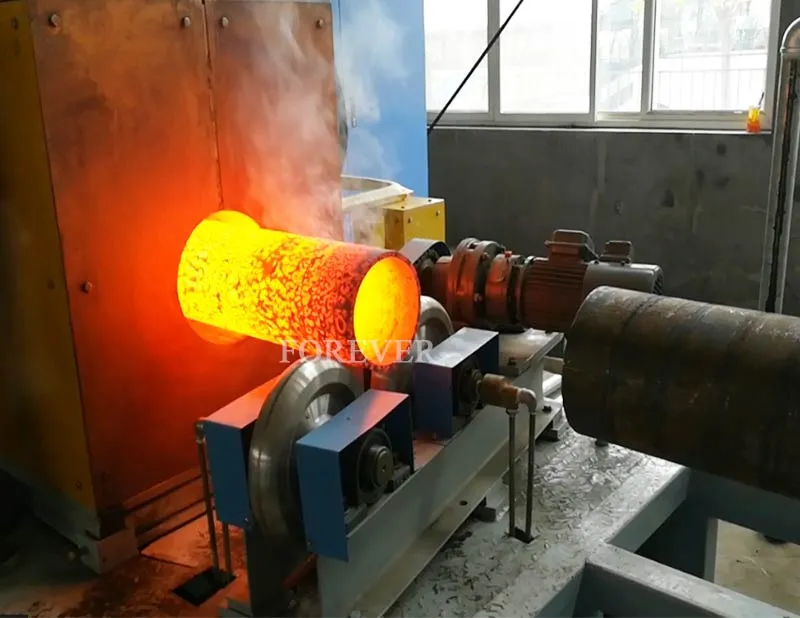

stainless steel pipe induction heating machine

Equipment Power :500KW-10000KW

Device frequency:1000-2500HZ

Control system：PLC intelligent electric control

Energy conversion: The power consumption per ton of steel ranges from 40 to 60 kWh, depending on the surface temperature of the workpiece.

The Forever Mechanical & Electrical Stainless Steel Pipe Induction Heating Equipment replaces traditional gas-fired heating furnaces and trolley-type heating furnaces, suitable for induction heat treatment of various workpieces. The stainless steel pipe heating equipment adopts a PLC control system, featuring simple operation and capable of achieving automatic workpiece conveyance, heating, water cooling, high-temperature tempering, and automatic unloading functions.

Device name: Stainless steel pipe induction heating equipment

Equipment brand: Forever

Workpiece material: Carbon steel alloy steel

Diameter range: 20-150mm

Length range: 2-20 meters

Medium frequency power supply requirements: 100KW-8000KW

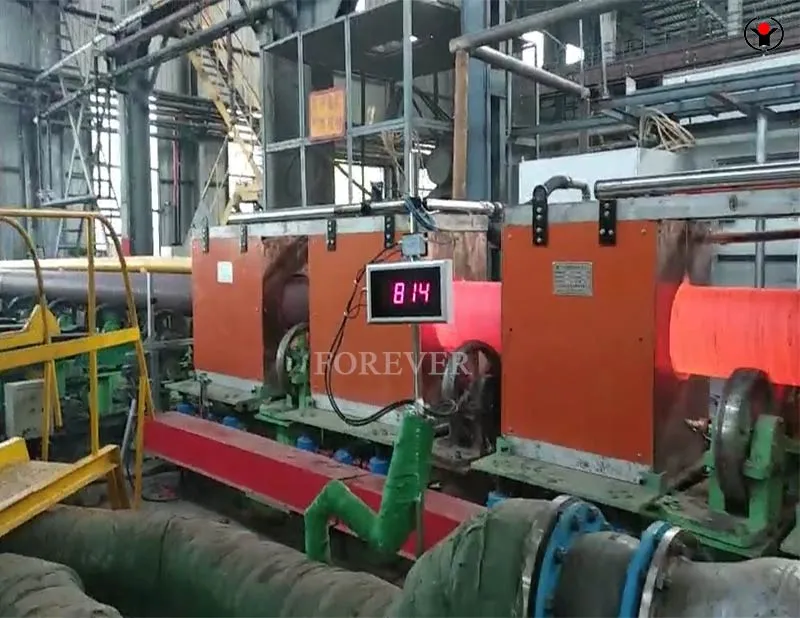

Closed-loop temperature control:Leitai temperature measuring instrument controls the heating temperature of workpiece

The quality standard range: yield strength, tensile strength, hardness, elongation, impact performance can meet the national standard.

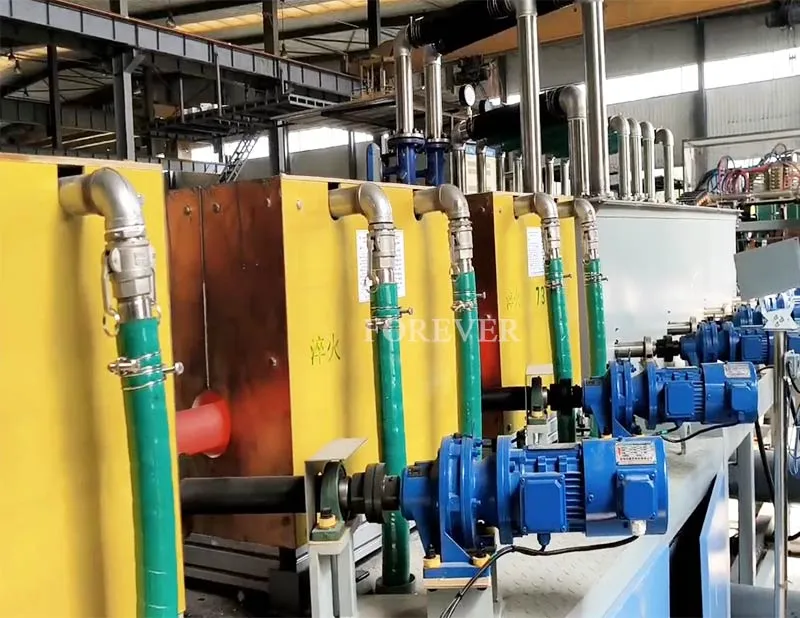

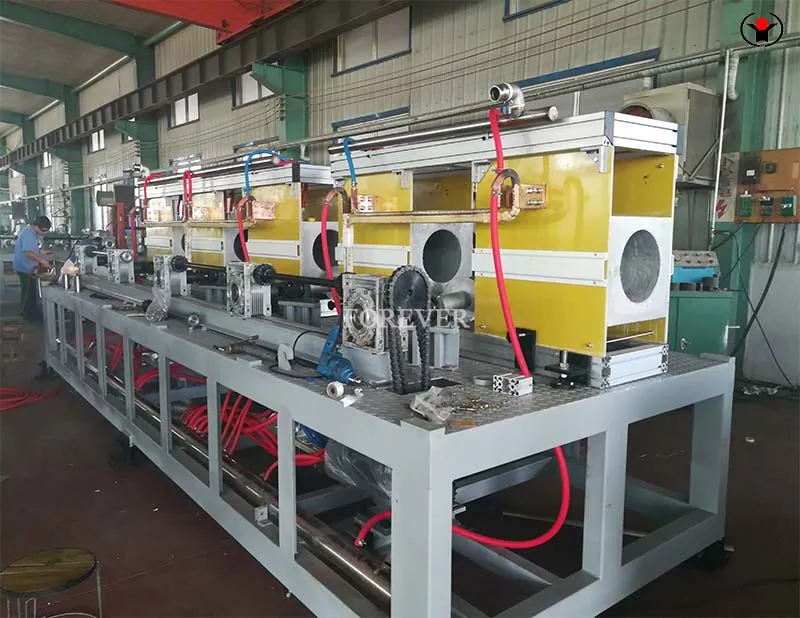

The resonant medium-frequency induction heating power supply professionally designed by Forever is more energy-efficient than conventional power supplies and features high production efficiency. The angle between the heating roller and workpiece is maintained at 18-21 degrees, with stainless steel rods rotating and advancing at constant speed. The furnace rollers are made of 304 non-magnetic stainless steel and water-cooled. Uniform cooling: The system meets various workpiece hardenability requirements through a multi-stage spray cooling system with adjustable pressure and flow rates. Workpieces are placed in spray rings to ensure uniform pressure and flow, eliminating the need for straightening after quenching and tempering heat treatment. Surface hardness variations are minimal. Closed-loop temperature control system for induction heating stainless steel medium-frequency heat treatment equipment: Forever's professional engineers configure system parameters. When heating temperature is too high or too low, the system automatically adjusts to the required temperature by regulating power output. The system features an intuitive human-machine interface for real-time monitoring and control of the entire production line.

1. Technical after-sales service with professional engineers for overseas equipment.

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.
