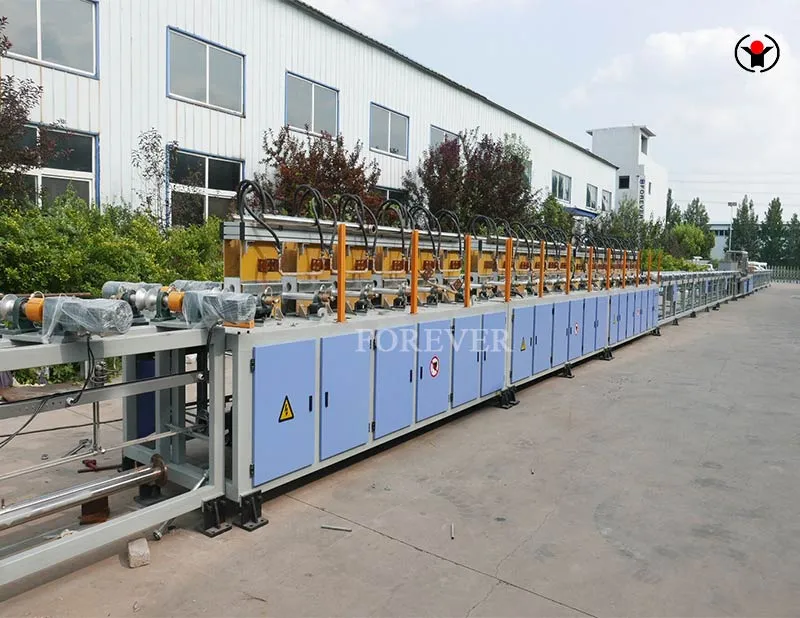

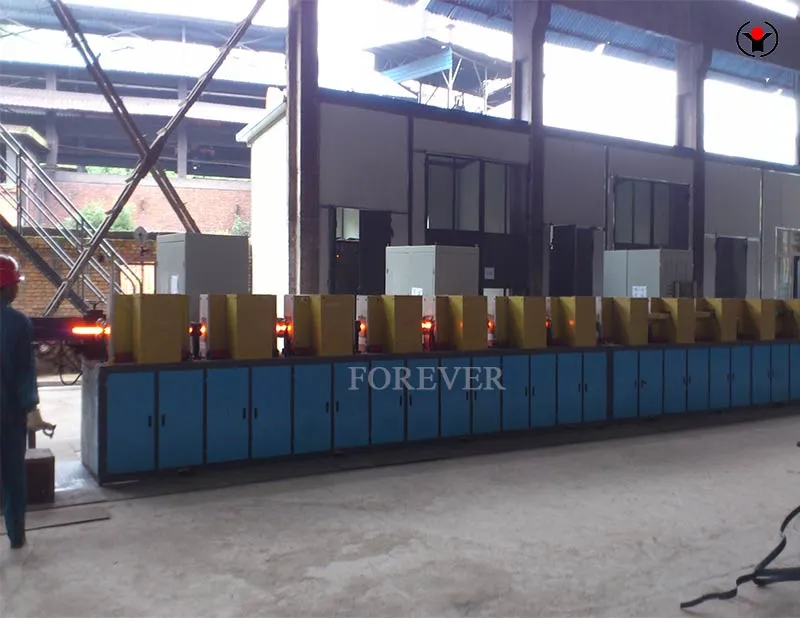

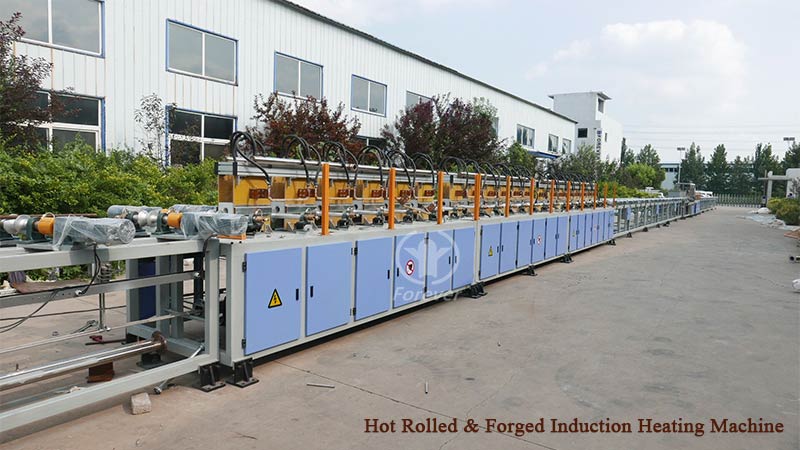

[China] Rebar hot rolling induction heating furnace

Product application: Suitable for hot rolling and heating of metal workpieces such as steel bars, scrap steel bars, and threaded steel bars

The rebar hot rolling induction heating furnace is a new type of induction heating equipment developed using new processes, technologies, and concepts. It is customized according to the actual process needs of users to meet their different needs. Welcome to consult.

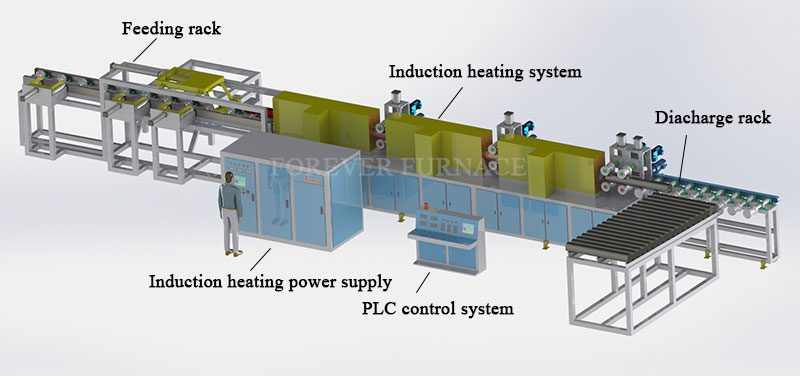

Technical parameters of rebar hot rolling induction heating furnace

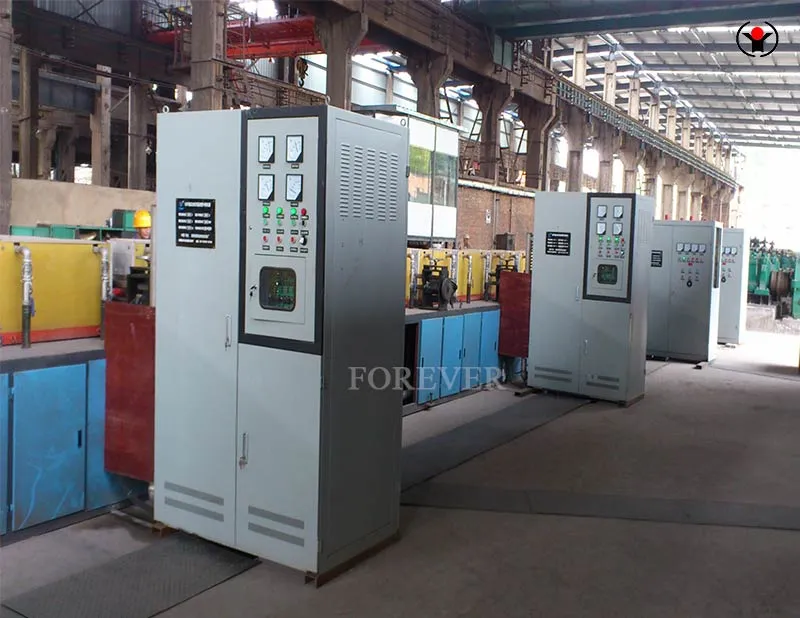

1. Power supply system: IGBT500KW-IGBT2000KW.

2. Equipment hourly output: 2-16 tons.

3. Design of steel bar heating equipment sensor: variable turn pitch, temperature gradient design, high production efficiency.

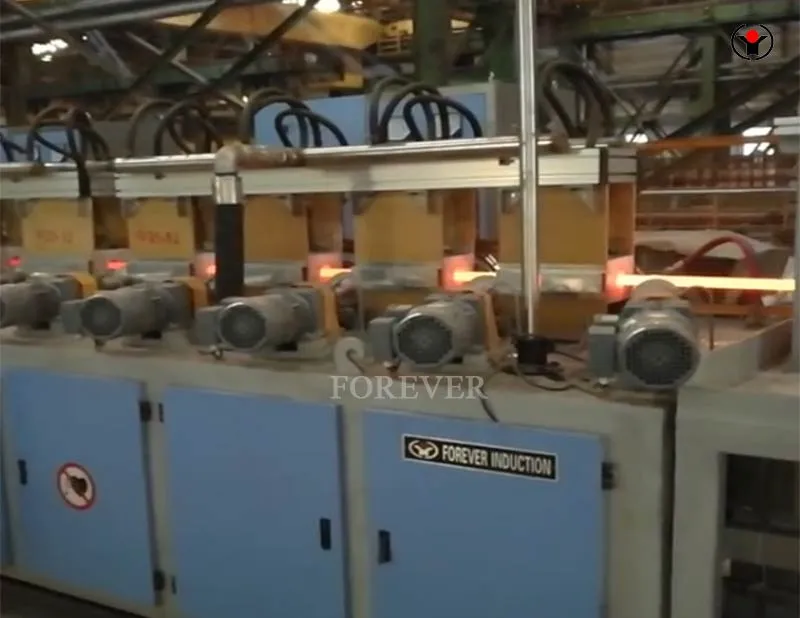

4. Elastic adjustable pressure roller: allows workpieces of different diameters to be fed at a constant speed, and the roller conveyor and pressure roller between the furnace bodies are made of 304 non-magnetic stainless steel and water-cooled.

5. Infrared temperature measurement: Install an infrared temperature measurement device at the discharge end to ensure consistent temperature of the metal workpiece before entering the rolling mill.

6. Energy conversion: Heating from 025mm~052mm to 1000C, consuming 260~280 degrees of electricity.

7. The human-machine interface PLC fully automatic intelligent touch screen control system provides highly user-friendly operation instructions.

8. The fully digital and highly adjustable parameters of the steel bar heating furnace enable you to control the equipment with ease.

9. Strict level management system and a comprehensive one click restoration system.

1. Fast heating speed, high production efficiency, less oxidation and decarburization on the surface of the workpiece, saving raw materials.

2. The steel bar hot rolling heating furnace has uniform heating temperature, high temperature control accuracy, small temperature difference, and no pollution. 3. High degree of mechanization and automation, frequency conversion automatic tracking, variable load adaptive, power automatic adjustment, etc., with "one click start", automatically completes heating work without the need for personnel on duty, truly realizing automated and intelligent induction heating.

4. The reliability of continuous operation is extremely strong, running continuously for more than a year without stopping for 24 hours. During this period, there have been multiple non-stop load changes (repeated switching between heavy and light loads) without any malfunctions.

5. Temperature closed-loop control system: Infrared thermometer measures the heating temperature of the billet at the outlet of the induction heating furnace, displays the heating temperature of the workpiece in real time, and has a high yield of finished products, ensuring the consistency of product quality.

6. High success rate of startup, fast startup in 0.2 seconds under any load and temperature, with complete intelligent protection and fault diagnosis.

We have 30 years of production experience and 2000+cases. We export to the Middle East market, European and American markets, and Southeast Asian markets.

1. Technical after-sales service with professional engineers for overseas equipment.

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.
