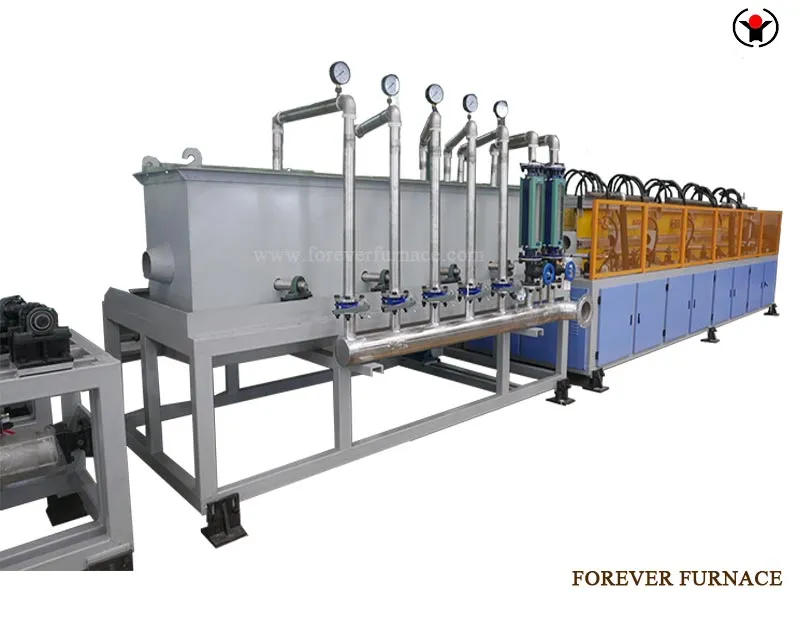

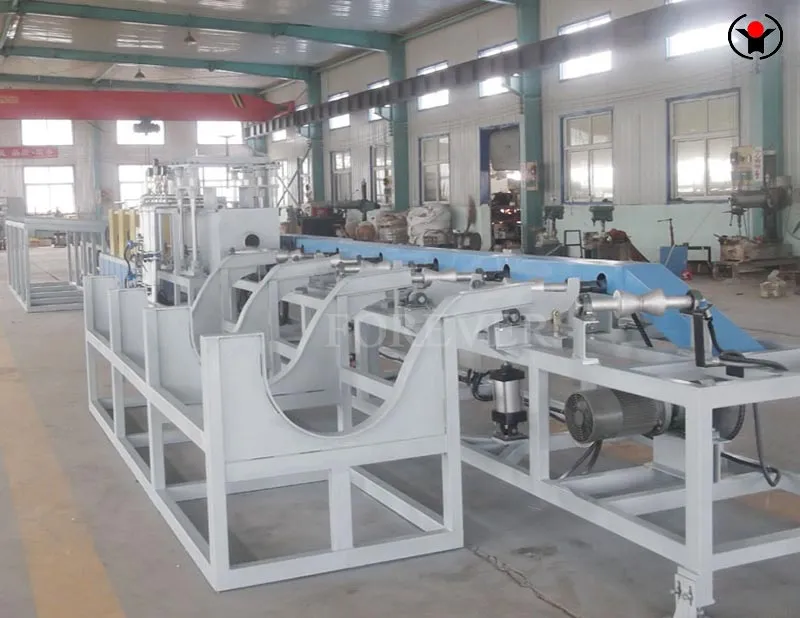

Torsion Bar Induction Heat Treatment Machine

Suitable for heat treatment of torsion bars and automotive torsion bars

Equipment power :KGPS100KW-4000KW or IGBT100KW-2000KW

Production capacity:2.8-12t/h

 Feeding System:Cylinder, hydraulic cylinder or Roller conveyor+power double pinch roller

Forever specializes in the production of torsion bar heat treatment equipment, automotive torsion bar heating equipment, and automotive torsion bar heat transfer equipment, with excellent product prices

Hui, stable operation, guaranteed quality, highly welcomed by the market and trusted by a large number of users. Welcome new and old customers to visit and discuss business!

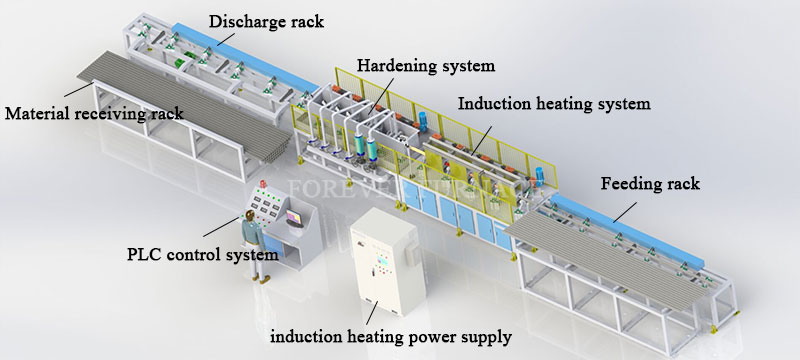

1.Medium frequency power supply: Intelligent constant angle KGPS100KW/3000Hz (intelligent control, load adaptive function)

2. Induction heating furnace (furnace body integrated lifting, easy replacement, simple connection)

3. Furnace capacitor cabinet (equipped with capacitors, copper bars, and stainless steel water circuits inside the cabinet)

Induction heating equipment connection wire copper cable ≤ 4 meters

Storage and flipping device (pneumatic automatic flipping)

Variable frequency input/output roller conveyor (independent motor or reducer controls each roller)

7. Stall detection device (used to detect the operating status of the material)

8. Discharging, flipping, and loading materials

9. Remote control console (PLC automatic control and frequency conversion control cabinet)

10. Twisted bar heat treatment equipment equipped with infrared temperature measurement device.

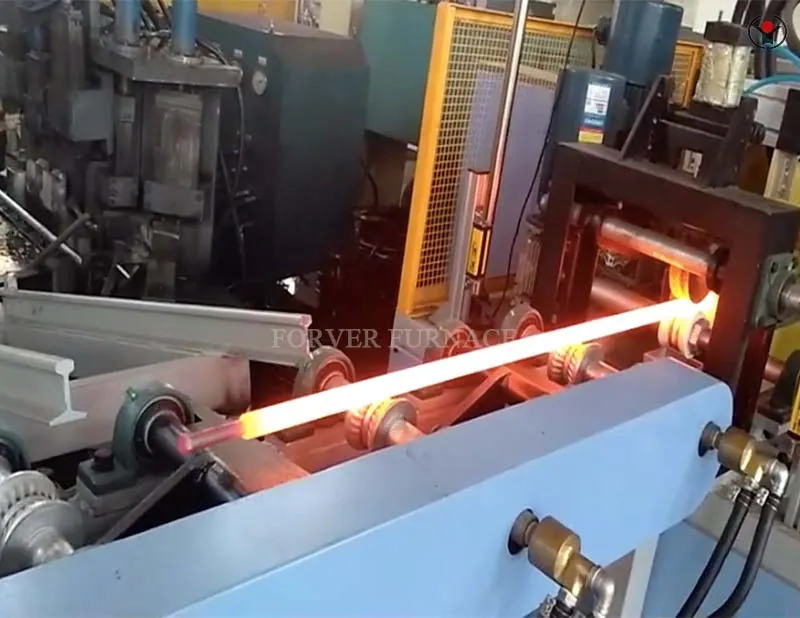

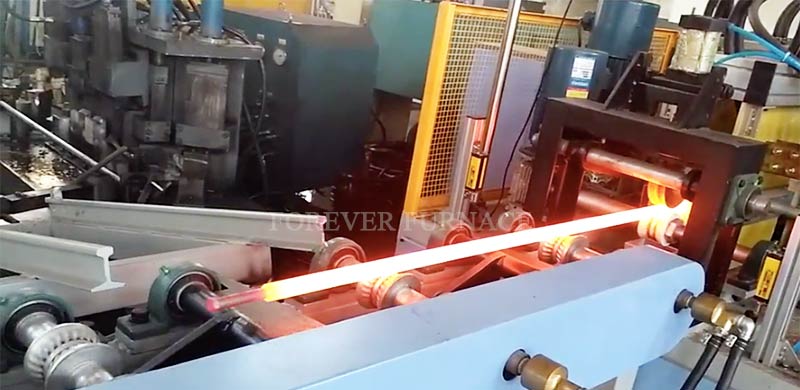

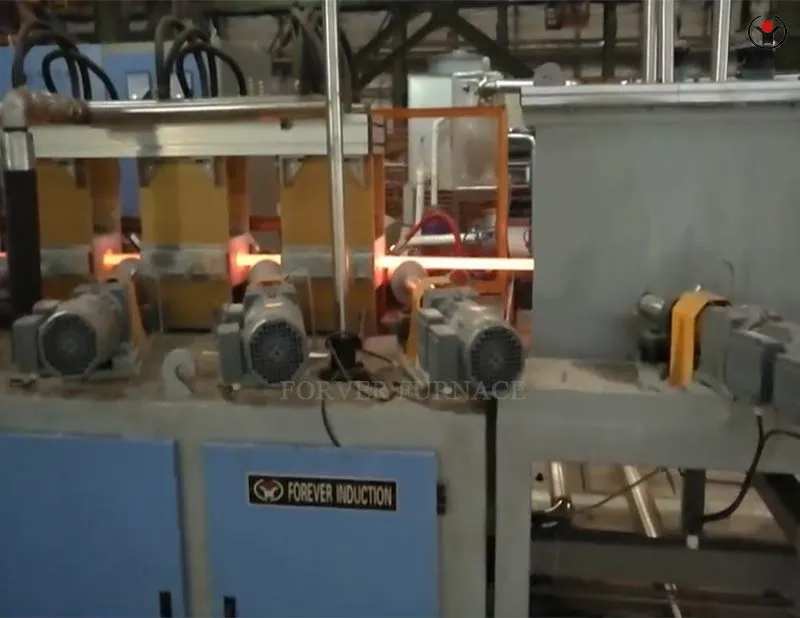

1. Using frequency conversion drag method for feeding, the workpiece is transported at a constant speed while rotating. An induction position detection device is installed on the conveyor line to ensure that the end of the torsion bar passes through the roller smoothly. Various position induction devices and stall detection are installed on the production line to ensure the smooth and safe operation of the entire line,

2. Adopting automatic feeding, the loading and unloading platform is made of high-quality steel welded firmly, which can withstand certain impact loads

3. The frame of the transmission mechanism has sufficient strength and rigidity. In order to facilitate the installation of automotive torsion bar forging heating equipment, adjustable feet are installed at the bottom of the frame to facilitate intermediate frequency heat treatment

The overall appearance of the equipment is more attractive.

4. According to the safety standardization requirements of the mechanical industry, all rotating exposed parts of machinery should be equipped with reliable protective devices, and the production line should comply with national environmental standards.

5. The intermediate frequency power supply adopts components from well-known domestic and foreign brands to ensure reliable equipment use and low failure rate. The intermediate frequency power supply has water temperature, water pressure, short circuit, and voltage loss protection functions
