Temperature testing method for induction heating equipment

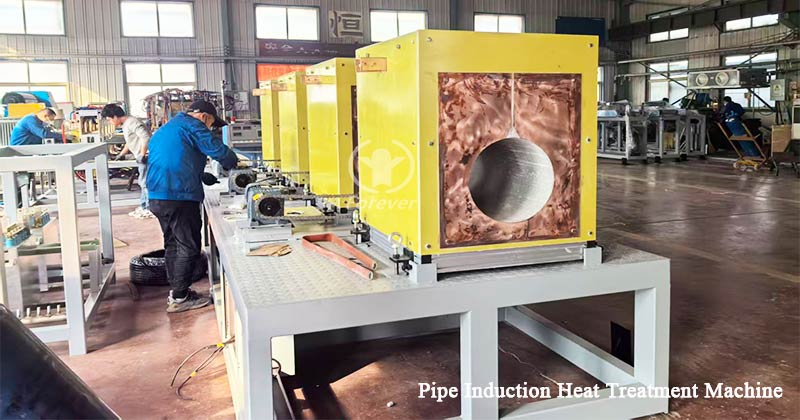

Temperature testing is a crucial step in the operation of Induction heating equipment. Accurate temperature measurement can ensure the quality of the heating process, prevent overheating or underheating, and thereby improve production efficiency and product quality. The following are common temperature testing methods and professional introductions for induction heating equipment provided by Hebei Yuantuo Electromechanical: 1. Contact temperature measurement method

Thermocouple

Working principle: A thermocouple is a temperature measuring element composed of two different materials of metal wires. Based on the principle of thermoelectric effect, when the measuring end of the thermocouple comes into contact with the measured object, it will generate an electromotive force proportional to the temperature. By measuring this electromotive force, the temperature can be calculated. Application scenario: Thermocouples are widely used for direct temperature measurement of metal materials, suitable for measuring the temperature on the surface or inside of workpieces, especially exhibiting good stability and accuracy under high temperature conditions.

Advantages: Wide measurement range (from -200 ° C to 2000 ° C), fast response speed, simple structure, and easy to use. Disadvantages: It requires direct contact with the object being measured, which may be affected by environmental temperature during the measurement process, and there is a risk of wear or damage to certain special workpieces. Resistance Temperature Detector (RTD)

Working principle: Resistance thermometers determine temperature by measuring the change in metal resistance caused by temperature changes. The most commonly used is the platinum resistance thermometer (Pt100), whose resistance value is linearly related to temperature.

Application scenario: RTD is mainly used for measurement in the low to medium temperature range (usually between -200 ° C and 850 ° C), and is commonly used in applications that require high temperature accuracy, such as precision metal processing.

Advantages: High measurement accuracy, good stability, and excellent linearity.

Disadvantages: Compared to thermocouples, RTD has a narrower temperature measurement range, higher cost, and relatively slower measurement speed.

2. Non contact temperature measurement method

Red I Infrared Thermometer

Working principle: The infrared thermometer detects the infrared radiation emitted from the surface of an object and converts it into a temperature value. The higher the surface temperature of an object, the greater the intensity of the emitted infrared radiation. Infrared thermometers can measure its temperature without touching the object. Application scenarios: Infrared thermometers are particularly suitable for high temperature, hazardous, or difficult to access situations, such as surface temperature measurement of high-temperature metal workpieces and real-time monitoring on continuous production lines.

Advantages: Non contact measurement, safe and fast, suitable for temperature measurement of high temperature and moving workpieces, fast response speed. Disadvantages: Measurement accuracy is greatly affected by the emissivity of the object surface and requires calibration; Not suitable for measuring the temperature of transparent or semi transparent materials. Thermal Imaging Camera

Working principle: The thermal imager generates temperature distribution images by detecting the infrared radiation emitted from the surface of an object. Thermal imagers can capture real-time temperature changes on the surface of workpieces, display the distribution of temperature fields, and provide comprehensive temperature information. Application scenarios: Thermal imagers are widely used in situations where comprehensive monitoring of temperature changes is required, such as monitoring the heating process of large-area workpieces or in processes that require precise temperature distribution.

Advantages: It can provide a comprehensive image of the surface temperature of the workpiece, non-contact measurement, suitable for real-time monitoring of the temperature field distribution of complex workpieces.

Disadvantages: The equipment cost is high, and the measurement accuracy is greatly affected by surface emissivity and environmental factors.

3. Precautions for temperature measurement

Calibration and Calibration: Both contact and non-contact temperature measuring devices should be calibrated and calibrated before use to ensure measurement accuracy and reliability. Especially for infrared temperature measurement equipment, it is necessary to calibrate the emissivity of the object surface. Environmental impact: The temperature measurement process may be affected by the surrounding environment, such as airflow, humidity, ambient temperature, etc. Therefore, it is necessary to control and reduce the interference of these external factors as much as possible before measurement.

Selection of measurement points: Choosing appropriate measurement points is very important. For contact measurement, key areas of the workpiece should be selected as much as possible, such as the maximum heating zone or stress concentration zone. For non-contact measurement, it should be ensured that the surface of the measurement point is clean and uniform, avoiding reflection or obstruction
