Steel Sheet Induction Heat Treatment Machine [Export-type]

Sep. 17, 2026

Forever Electromechanical Export-type Steel Sheet Induction Heat Treatment Machine Configuration Introduction

Introduction

Forever Electromechanical’s export-type steel sheet induction heat treatment machine is tailor-made for international industrial heat treatment standards, focusing on high efficiency, stability and intelligent customization. It is widely applied to heat treatment processing of carbon steel, alloy steel and special steel sheets for machinery, engineering and petrochemical industries. Different from traditional resistance heating and gas heating equipment, this induction heating equipment adopts internal eddy current heating principle, featuring fast heating, uniform temperature and low deformation, fully meeting high-standard production demands of overseas customers.

Core IGBT Power Supply Configuration

The equipment is equipped with high-performance imported standard IGBT medium frequency induction heating power supply
, the core power unit of export models. Compared with traditional heating equipment, it achieves an energy-saving rate of over 30% and a thermal efficiency of more than 60%. The power and frequency can be adjusted in real time according to steel sheet thickness, width and material properties, adapting to diversified processing requirements from thin sheets to thick alloy steel sheets. The power supply features stable output, strong anti-interference ability and low failure rate, complying with international electrical safety standards, and can operate stably for a long time in complex overseas production environments.

Customized Induction Coil System

A modular water-cooled induction coil system is adopted for export configuration. Conventional carbon steel sheets are matched with single-layer universal water-cooled coils, while wide and thick alloy steel sheets are equipped with multi-layer composite water-cooled coils. Each coil zone supports independent power regulation, effectively solving the problem of uneven heating of large-area steel sheets. The coil is made of high-purity copper material with optimized structural design, which reduces heat loss and ensures consistent heating temperature on the surface and inside of steel sheets, avoiding local overheating or insufficient heating.

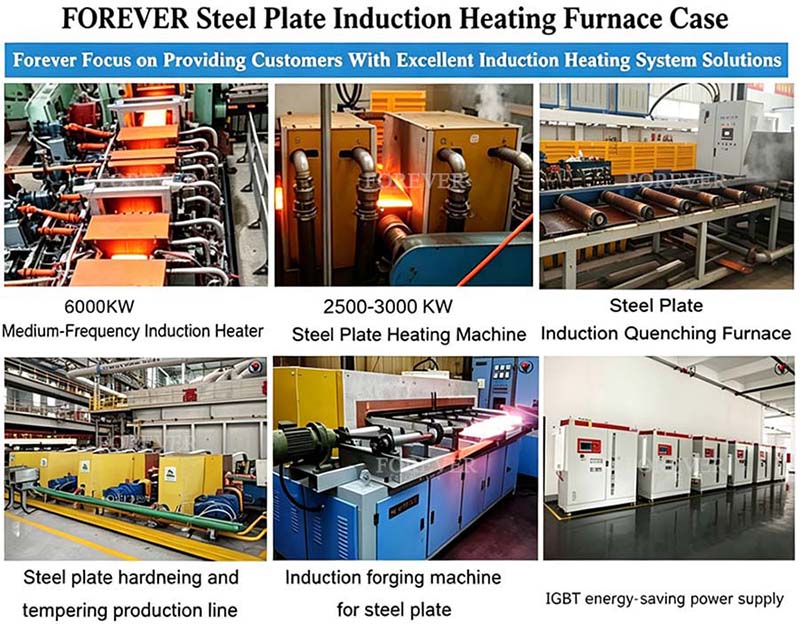

Steel Sheet Induction Heat Treatment Machine [Export-type]

Precision Constant Temperature Control System

To meet overseas high-precision processing standards, the whole line is equipped with multi-point infrared pyrometers and PLC intelligent closed-loop temperature control system. It monitors the surface temperature of steel sheets in real time, automatically adjusts power output and running speed, and controls the overall temperature tolerance within ±3℃. The system has a built-in international standard process database, which can store and call mature heat treatment parameters of various steel grades, realizing one-click intelligent production and greatly reducing manual operation errors.

Diversified Cooling and Automatic Operation Configuration

The export version supports dual cooling modes of low-pressure spray and segmented high-low pressure adjustable spray, which can switch water-based quenching liquid according to process requirements, meeting the quenching and tempering demands of different steel sheets. The full-line automatic roller conveying system realizes continuous feeding, heating, cooling and discharging. Equipped with remote fault diagnosis and data recording functions, it facilitates overseas after-sales maintenance and production data management, becoming a high-quality preferred device for global plate induction heating equipment processing.

Overseas manager:Mr. Wang

Email:tom@foreverfurnace.com

Phone/Wechat/Whatsapp:+8613303078975

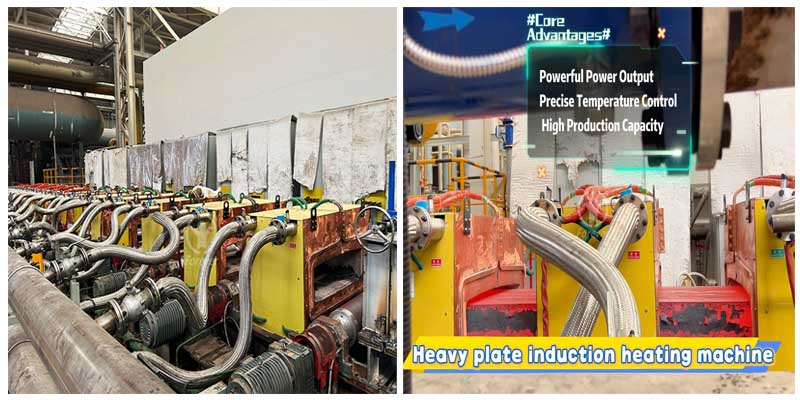

Steel Sheet Induction Heat Treatment Machine [Export-type]
