Induction Heat Treatment Machine for Steel Plate – Efficient Quenching & Tempering Solution

Overview: New-generation Plate QT Solution Addresses Traditional Pain Points

Traditional chamber furnace heat treatment for steel plates has long troubled metal processors with slow heating cycles, uneven temperature distribution, heavy oxide scale, high power consumption and unstable mechanical performance. For steel plates used in engineering machinery, mining equipment and pressure vessels, consistent hardness, flatness and impact toughness are non-negotiable quality indicators. Forever Electromechanical launches its optimized induction heat treatment machine for steel plate, delivering an integrated quenching and tempering solution built on mature IGBT medium-frequency induction technology. The inline continuous design breaks the limits of batch furnace processing, helping steel manufacturers achieve stable, repeatable heat treatment for carbon steel, alloy steel and low-alloy structural plates with varied thickness and width.

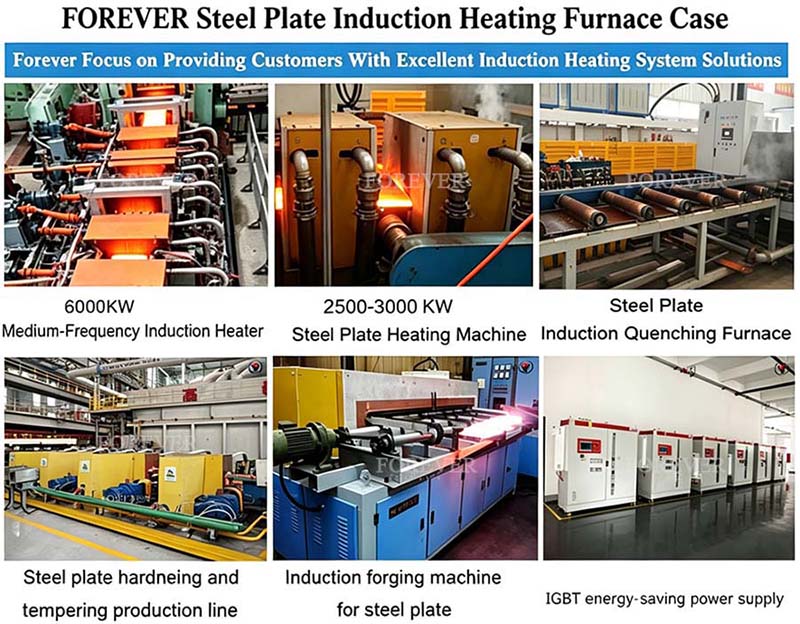

Steel plate heat treatment equipment

Core Design: Modular Induction Coil and Closed-loop Temperature Control

The equipment takes IGBT induction heating power supply as its core drive unit. Segmented modular induction coils are specially calibrated for flat steel geometry, solving the common issue of temperature difference between plate edge and center. Multi-point infrared pyrometers are arranged along the conveying route to capture real-time temperature data across the plate surface and thickness direction, forming a closed-loop feedback system that adjusts output power dynamically. The temperature tolerance can be controlled within ±3℃, avoiding overheating or underheating during quenching and tempering stages. Servo roller conveying keeps steady feeding speed, so every plate receives identical heating duration and cooling intensity. The whole line covers automatic feeding, induction quenching, spray cooling, induction tempering and discharging, with all process parameters stored and recalled through PLC touch screen for batch production.

Key Advantages: Energy Saving, Low Distortion and Less Oxidation

Compared with conventional resistance furnaces, induction heating generates heat inside the steel plate via eddy current, cutting heat loss greatly. Heating completes within seconds instead of hours, shortening the production cycle and lifting throughput obviously. Rapid, localized heating reduces overall thermal stress, so plate deformation and warping are kept at a low level, cutting subsequent straightening workload. Shorter high-temperature exposure suppresses oxide scale and decarburization, improving surface quality and reducing material waste. The power unit maintains high power factor under variable load, bringing measurable electricity savings for heavy daily output. Besides, flameless heating brings a cleaner workshop environment, matching global green manufacturing standards for steel processing plants.

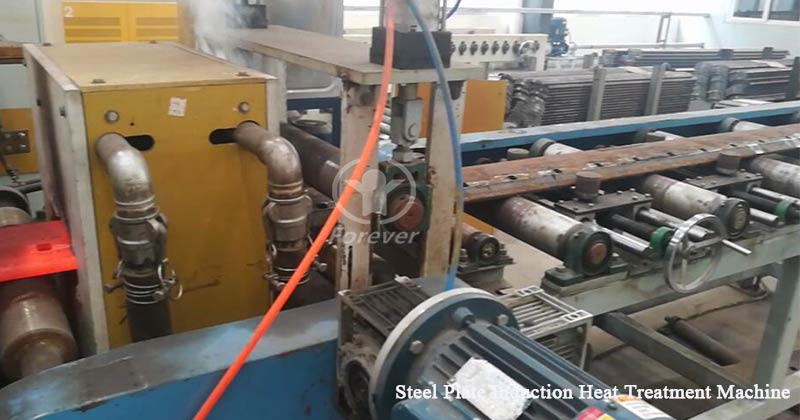

Steel plate induction heating furnace

Flexible Customization for Diversified Plate Specifications

Forever Electromechanical supports tailored configuration according to client requirements. The machine can be adjusted to process steel plates of different widths, lengths and thicknesses. Cooling manifolds, coil spacing and power curves can be modified for different steel grades and target mechanical properties, whether customers need full-plate quenching-tempering or localized strengthening treatment. It can run independently or dock with rolling, cutting and surface treatment lines to realize full continuous production. The control system records production data including temperature curve, running speed and power consumption, convenient for quality traceability and production management. Spare parts adopt standardized, easy-to-maintain structures to lower downtime for overseas end users.

Application and Market Outlook

This steel plate induction QT machine serves steel mills, heavy machinery factories, mining component manufacturers and oil industry suppliers. As global downstream industries raise standards for steel plate reliability and carbon reduction, demand for efficient induction heat treatment machine keeps rising. Forever Electromechanical keeps upgrading its induction heating system, combining years of experience in billet, bar and pipe heat treatment lines to offer reliable, cost-effective equipment and after-sales technical service. The new plate treatment solution helps manufacturers balance quality, productivity and energy cost, becoming a preferred alternative to outdated furnace heat treatment for modern steel fabrication.
