Introduction: The Limitations of Traditional Sheet Heating

Steel sheet processing is essential across construction, mining machinery, automotive and wear-resistant component industries. Conventional gas furnaces and flame heating have long been widely adopted, yet they carry obvious drawbacks: slow heating speed, heavy surface oxidation, uneven temperature across sheet width, large thermal deformation and high energy consumption. Thin and medium steel sheets are especially vulnerable to overheating or local cold spots, resulting in scrap products and unstable mechanical properties. To resolve these pain points, Forever Electromechanical explains the scientific mechanism of induction heating and its practical value with its mature steel sheet induction heating equipment.

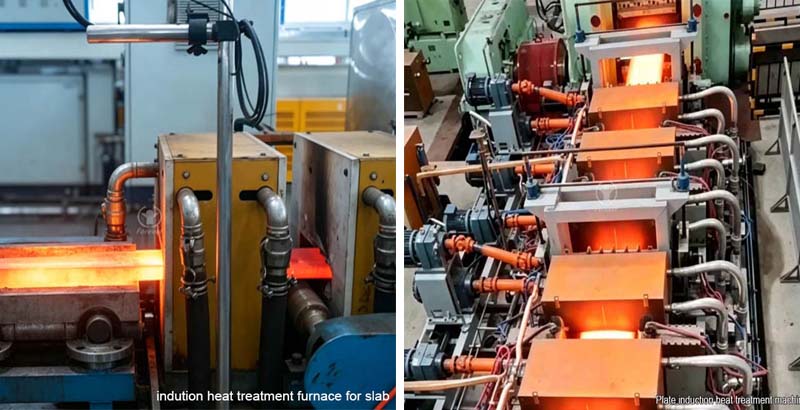

Steel sheet induction heating equipment

The Basic Principle: How Induction Heating Acts on Steel Sheets

Induction heating relies on electromagnetic induction and Joule heating effect. Alternating current passes through the copper induction coil and creates a continuously changing magnetic field. When steel sheets travel through this magnetic field, eddy currents are induced inside the metal substrate. Driven by material resistance, these circulating eddy currents convert electromagnetic energy directly into heat within the steel sheet itself. This is non-contact heating; coils never touch the workpiece. The skin effect decides heat penetration depth. By adjusting power frequency, engineers control whether heat concentrates on the surface or penetrates through the full sheet thickness. Forever’s customized coil layout ensures even heating over the full width of wide steel sheets, avoiding edge temperature drop which commonly occurs in old-style heating methods.

Equipment Design: Forever Electromechanical’s Steel Sheet Induction Heating System

Forever Electromechanical’s steel sheet induction heating equipment adopts IGBT medium frequency induction heating power supply and modular coil groups. It integrates automatic feeding, speed regulation, infrared temperature closed-loop monitoring and continuous discharging. The PLC touch screen stores multiple process recipes for different grades of carbon steel, alloy steel and stainless steel sheets. Operators only input sheet thickness, width and target temperature, then the system automatically tunes power and conveying speed. The equipment supports continuous inline production for preheating, hot bending, stress relief and quenching preparation. Modular design makes installation flexible, easy to connect with rolling, cutting and forming production lines for overseas metal fabrication workshops.

Core Advantages Compared With Conventional Heating

Energy saving is the most prominent merit. Heat generates inside steel sheets instead of warming the whole furnace chamber, cutting energy consumption by more than 35% versus gas furnaces. Fast heating shortens residence time, greatly reducing oxidation and decarburization on sheet surfaces, which lowers subsequent grinding workload. Precise temperature control keeps temperature deviation within ±3℃, minimizing sheet warping and distortion. Rapid start and stop eliminates long preheating waiting time. Production can start immediately once powered on. For export-oriented manufacturers, stable repeatability guarantees consistent mechanical performance batch by batch and simplifies quality inspection records.

Wide Application Scenarios for Steel Sheet Induction Heating

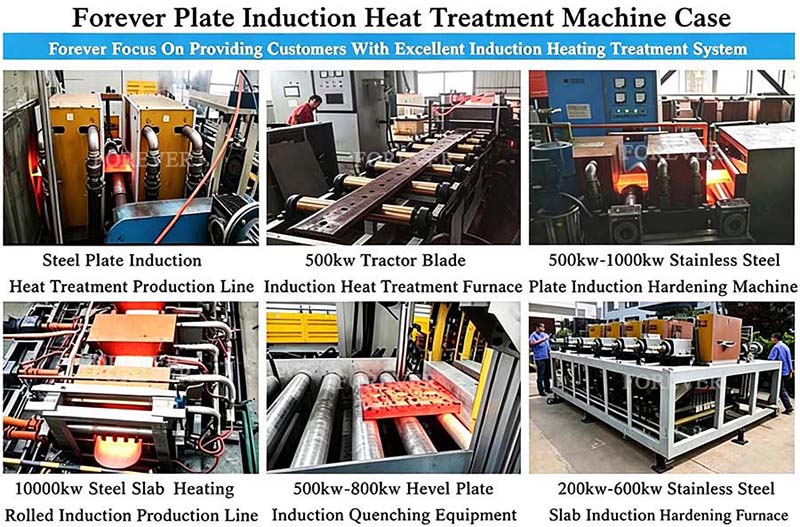

This equipment serves multiple industrial sectors. In engineering machinery, it heats wear-resistant steel sheets before bending and forming. For automotive manufacturing, it processes high-strength steel sheets for structural parts. It also handles preheating and stress relief for marine steel plates and stainless steel sheets for chemical equipment. Many overseas customers previously outsourced heat treatment due to unreliable local heating quality. Installing Forever’s induction heating line helps factories bring thermal processing in-house, shorten lead time and gain better control over product quality for bulk export orders.

Technical Service & Global Support

Forever Electromechanical has delivered intermediate frequency induction heating equipment to Europe, Russia, Turkey, the Middle East and Southeast Asia. For steel sheet induction heating systems, the team provides pre-sales process simulation, factory pre-testing, on-site installation guidance, operator training and remote troubleshooting. Engineers adjust coil structure and heating parameters according to customers’ raw material features and production speed to ensure smooth trial operation.

Conclusion: Induction Heating Reshapes Steel Sheet Thermal Processing

Low-carbon and precision manufacturing becomes the global trend for metal processing. Induction heating replaces inefficient traditional furnaces for steel sheet thermal treatment. Forever Electromechanical continues optimizing coil structure, power control and automation systems, developing custom induction heating solutions for thin sheets, medium and heavy plates. The company will keep helping global steel processors upgrade production lines, reduce scrap rate and lift product competitiveness in international markets.
